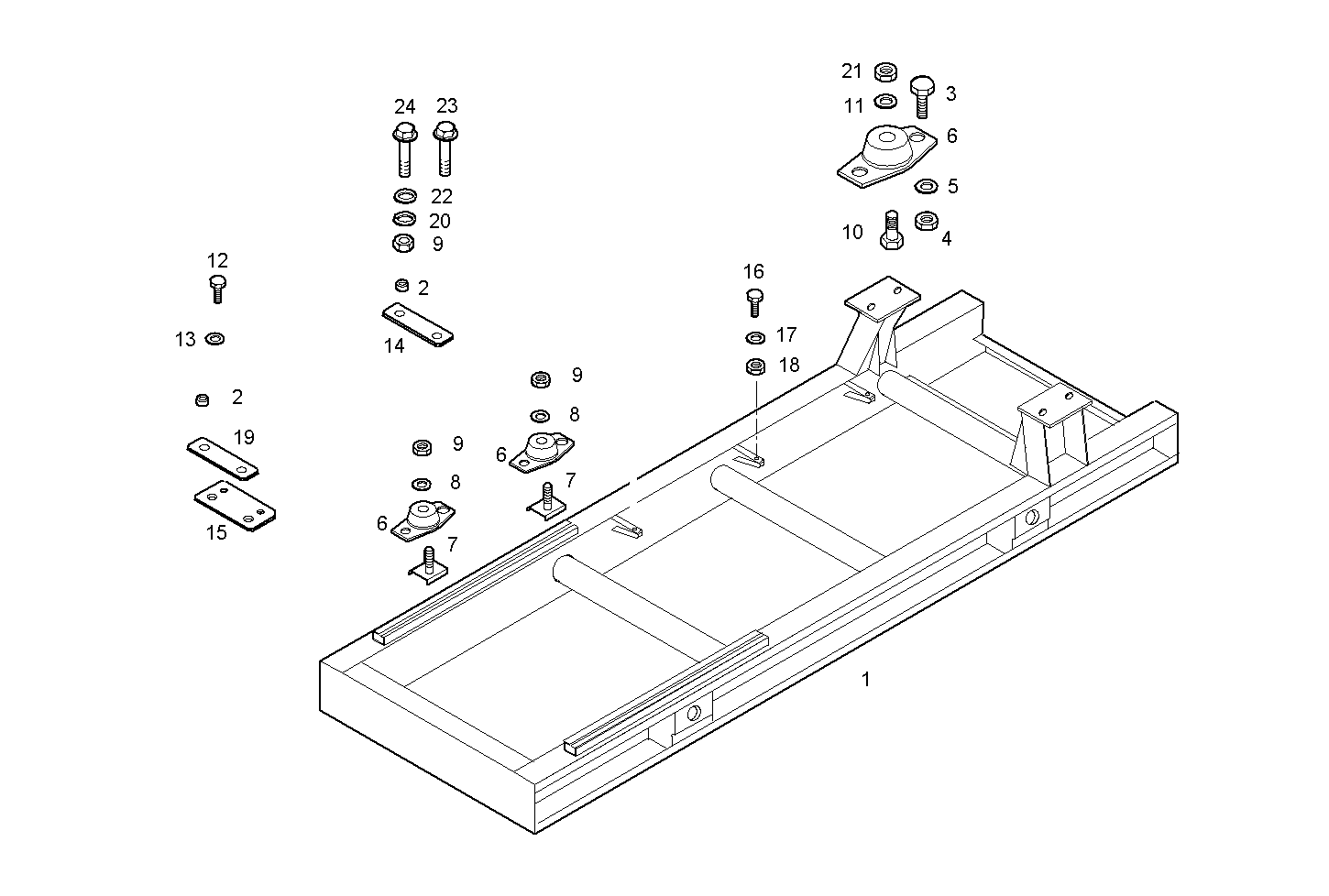

| Item |
Part number |
Description |
|
1 |
8016847 |
SUBBSAE-SUPPORT FRAME |
|
2 |
8019415 |
SPACING BAR |
|
3 |
16614724 |
SCREW M16X45 |
|
4 |
17038931 |
HEXAGON NUT M16X2 |
|
5 |
17092374 |
SPRING WASHER Ø16X34X3,6 MM |
|
6 |
4955094 |
RUBBER PAD |
|
7 |
8015168 |
SCREW |
|
8 |
17091974 |
SPRING WASHER Ø14X32 MM SP=3,4 MM |
|
9 |
17038721 |
NUT M14X2 [from ...] |
|
10 |
16620124 |
SCREW M24X3X80 |
|
11 |
17093174 |
WASHER Ø24X46X5,4 MM |
|
12 |
16614524 |
HEXAGON BOLT M16X35 MM |
|
13 |
17089774 |
SPRING WASHER Ø8,4X22 MM SP=2,4 MM |
|
14 |
8017948 |
SPACING BAR SP=30 MM |
|
15 |
8017949 |
SPACING BAR SP=30 MM |
|
16 |
16605524 |
HEXAGON BOLT M8X20 MM |
|
17 |
17089474 |
SPRING WASHER Ø8X16 MM SP=1,4 MM |
|
18 |
17037925 |
HEXAGON NUT M8X1,25 |
|
19 |
8010041 |
SPACING BAR SP=7 MM |
|
20 |
17092174 |
SPRING WASHER Ø16X32X3,4 |
|
21 |
17039721 |
HEXAGON NUT M24 |
|
22 |
17095704 |
WASHER Ø16X30 MM |
|
23 |
16615224 |
HEXAGON BOLT M16X70 MM |
|
24 |
16697924 |
SCREW |
