GE8210SRi27.01N970

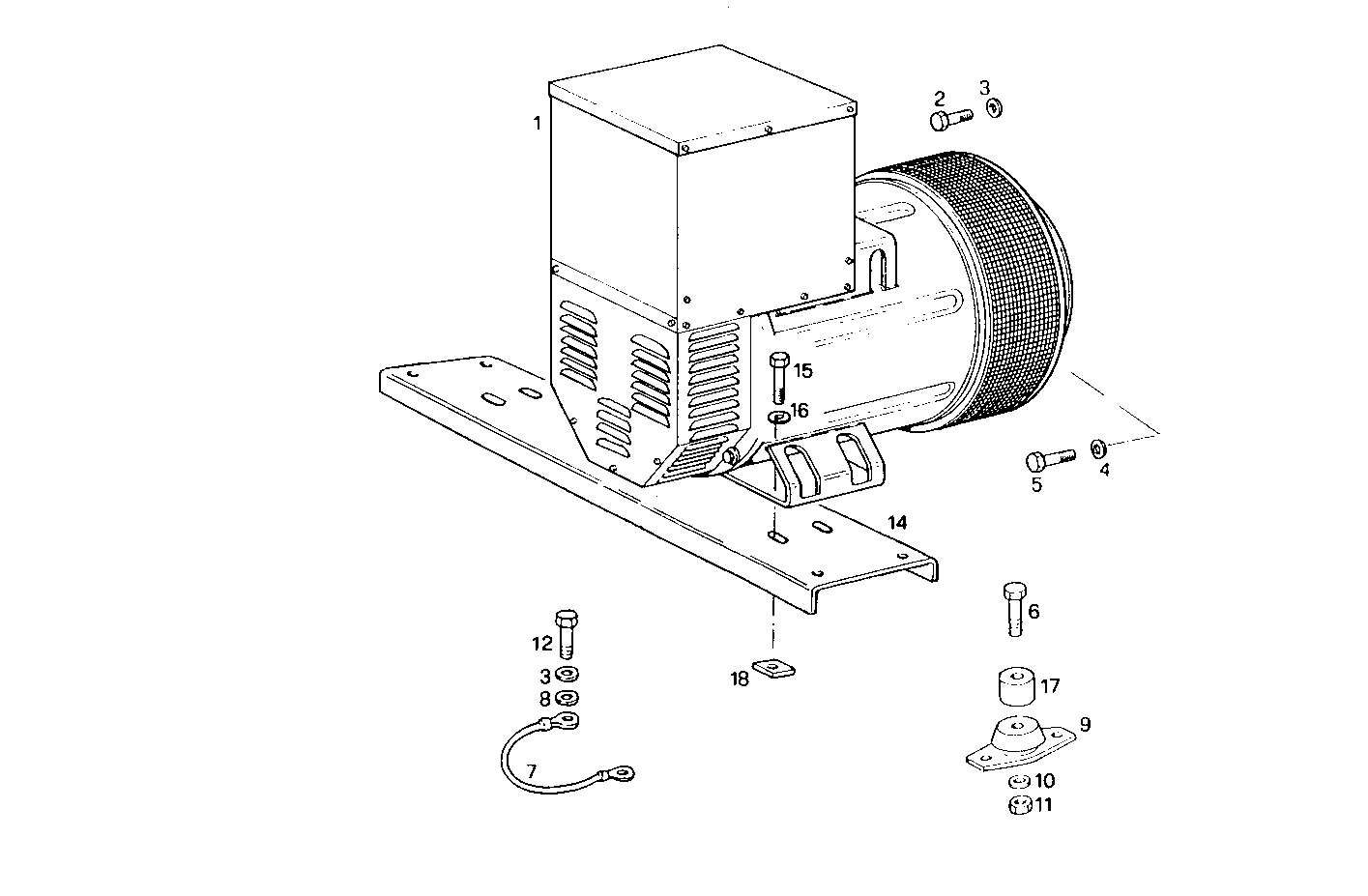

A37410061 SINGLE BEARING ELECTRIC MACHINE - MECC-ALTE

Iveco/FPT SINGLE BEARING ELECTRIC MACHINE

Item Part number Description
1 8028101 ELECTRIC MACHINE ECO 37 2L
2 11343821 HEXAGON BOLT M10X1,25X50 MM
3 17090174 SPRING WASHER Ø10X20 MM
4 17091174 SPRING WASHER Ø12X24 MM
5 15540431 HEXAGON BOLT M12X1,25X30 MM
6 16621024 SCREW M24X180
7 8110852 EARTH WIRE
8 17095104 WASHER Ø10X21X2 MM
9 4955094 RUBBER PAD
10 17093174 WASHER Ø24X46X5,4 MM
11 17039721 HEXAGON NUT M24
12 16607424 SCREW M10X16
14 8019196 SUPPORT
15 16617624 SCREW M20X70
16 17092774 WASHER Ø20X38X4,6 MM
17 8016970 SPACING BAR
18 8019231 PLATE
