GE8210SRi27.01N970

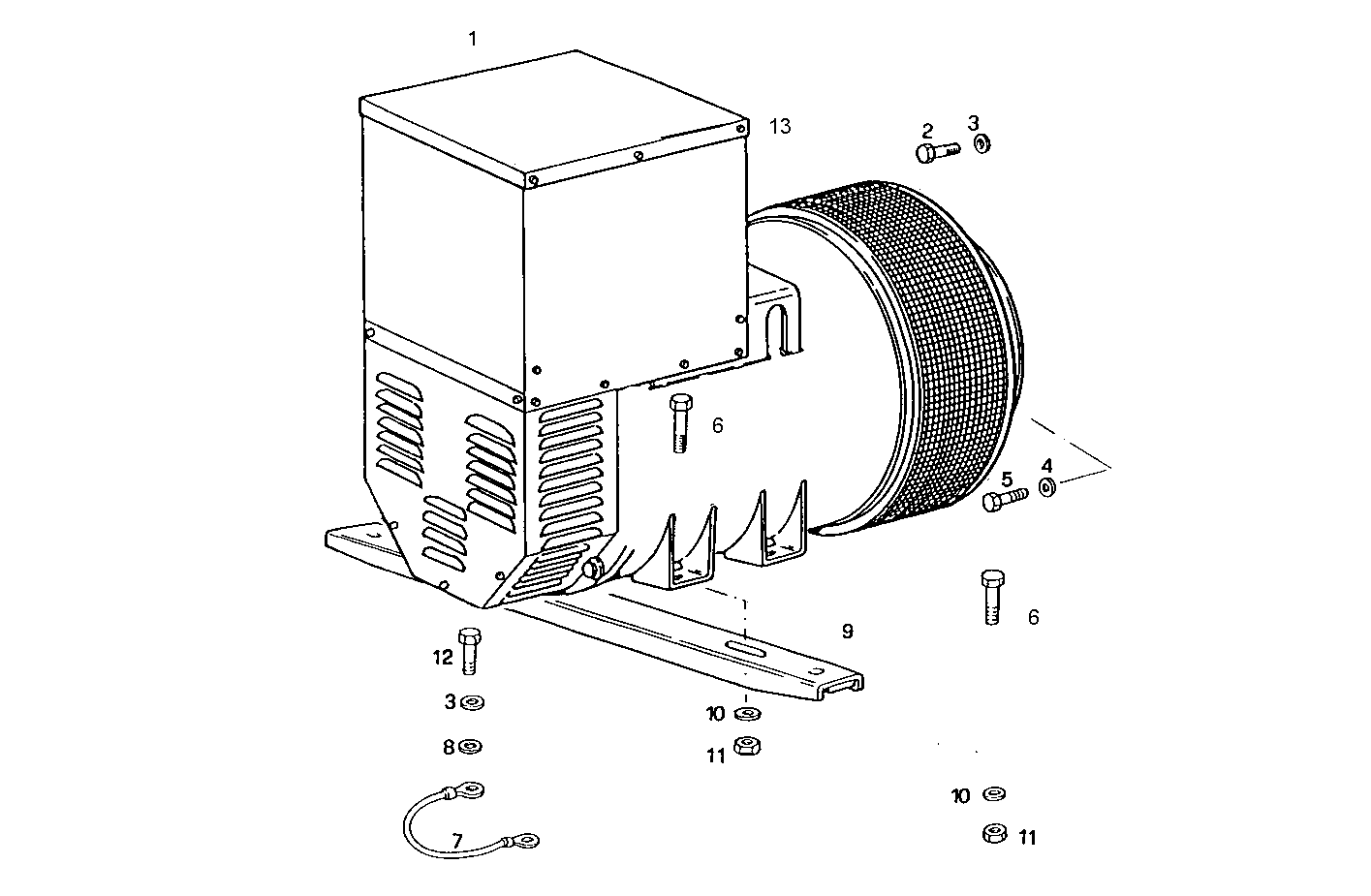

A37410068 SINGLE BEARING ELECTRIC MACHINE - MECC-ALTE
Item | Part number | Description |
---|---|---|
1 | 8028084 | ELECTRIC MACHINE ECO 40 1S 50-60HZ |
2 | 15004624 | HEXAGON BOLT M10X50 MM |
3 | 17090174 | SPRING WASHER Ø10X20 MM |
4 | 17091174 | SPRING WASHER Ø12X24 MM |
5 | 15540434 | HEXAGON BOLT M12X1,5 |
6 | 16620224 | SCREW M24X90 |
7 | 8023916 | EARTH WIRE |
8 | 16665604 | WASHER Ø10X20 MM |
9 | 8016859 | SUPPORT |
10 | 17093174 | WASHER Ø24X46X5,4 MM |
11 | 17039721 | HEXAGON NUT M24 |
12 | 16607434 | HEXAGON BOLT M10X16 MM |
13 | 17098590 | RIVET |
