GE8210SRi28.00A955

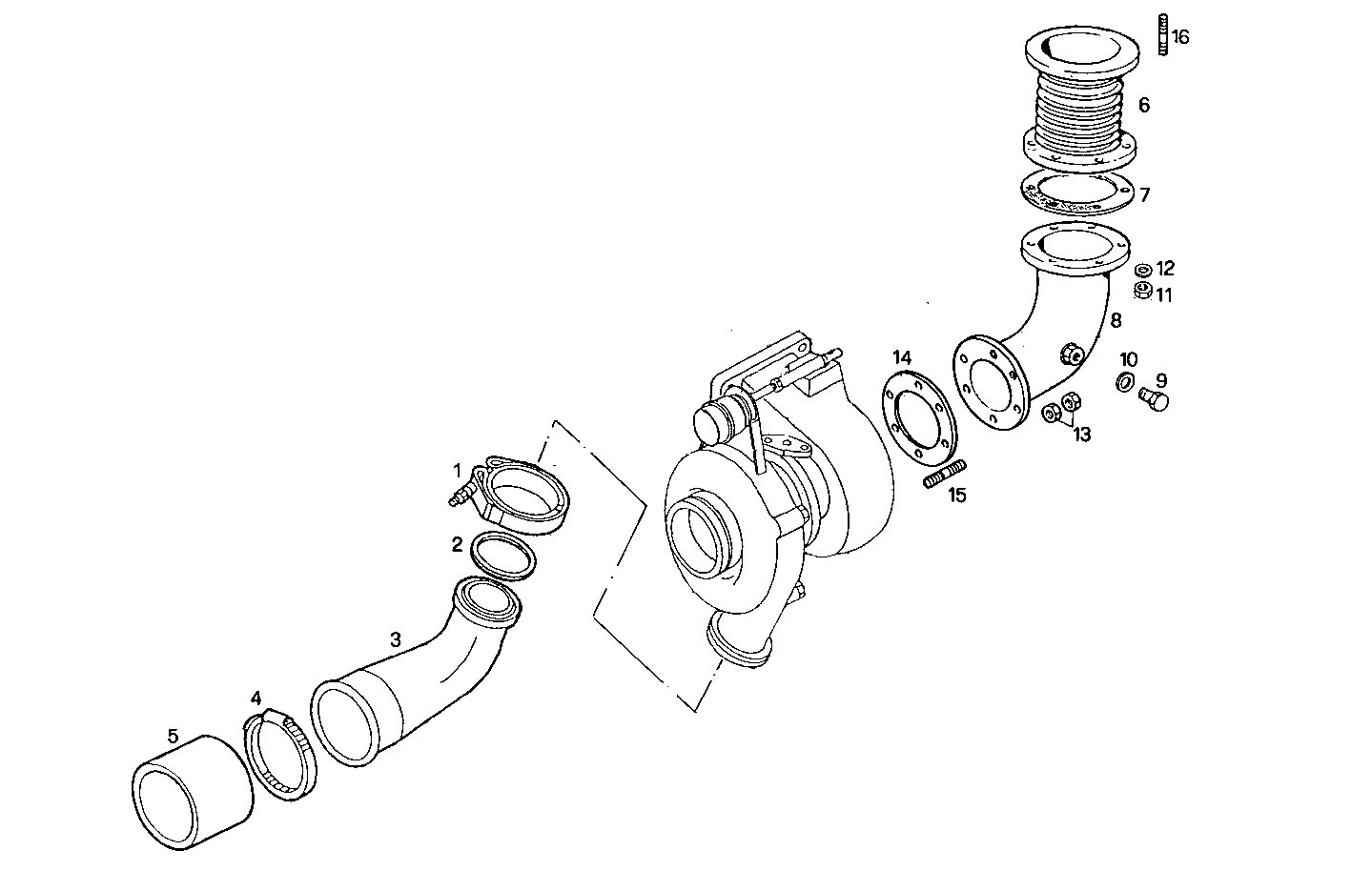

2420.087/01 SUPERCHARGING LINES
| Item | Part number | Description |
|---|---|---|
| 1 | 4800661 | CLIP Ø 75 mm. |
| 2 | 17284681 | O-RING Ø61,6 MM SP=2,62 MM |
| 3 | 61318365 | AIR PIPE/DUCT |
| 4 | 8005839 | CLIP |
| 5 | 42070016 | WATER HOSE |
| 6 | 8101671 | EXHAUST BELLOWS |
| 7 | 8009600 | GASKET |
| 8 | 8018463 | EXHAUST ELBOW |
| 9 | 16992211 | THREADED PLUG M12X1,5 |
| 10 | 4858607 | WASHER Ø12X17 MM SP=1,5 MM |
| 11 | 17038221 | HEXAGON NUT M10 |
| 12 | 17090174 | SPRING WASHER Ø10X20 MM |
| 13 | 8100961 | NUT M10X1,25 |
| 14 | 42075987 | GASKET |
| 15 | 500314985 | STUD M10X1,25 - M10X1,5 |
| 16 | 13449524 | STUD M10X1,25X15X25 |
