GE8210SRi28.00A955

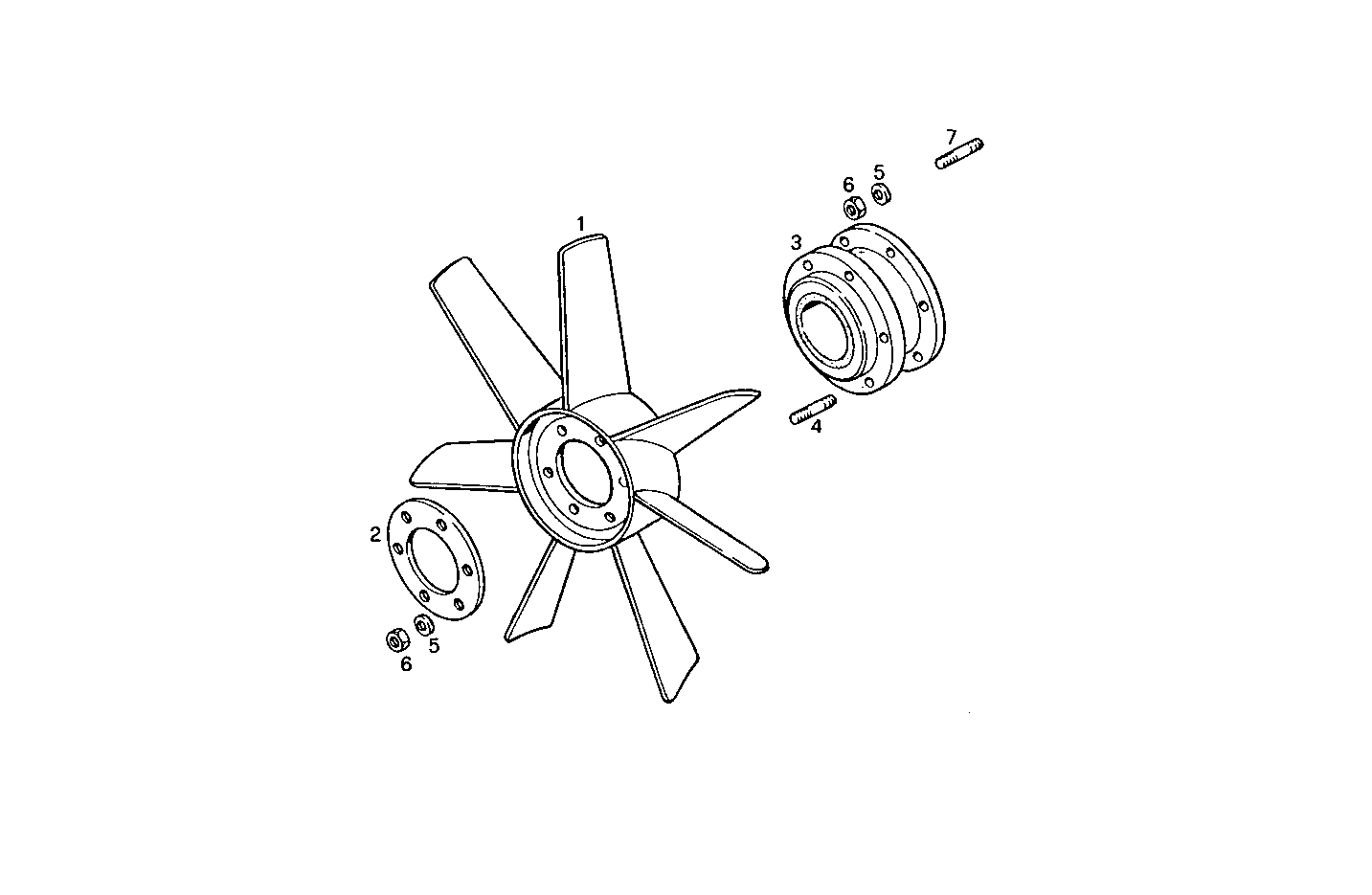

3230.009 FAN
| Item | Part number | Description |
|---|---|---|
| 1 | 8104135 | FAN Ø820 MM |
| 2 | 4933279 | RING |
| 3 | 8018279 | SPACING BAR |
| 4 | 16729224 | STUD M8X16 MM |
| 5 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 6 | 17037931 | HEXAGON NUT M8X1,25 |
| 7 | 16729324 | STUD M8X12X20 MM |
