GE8210SRi28.00R970

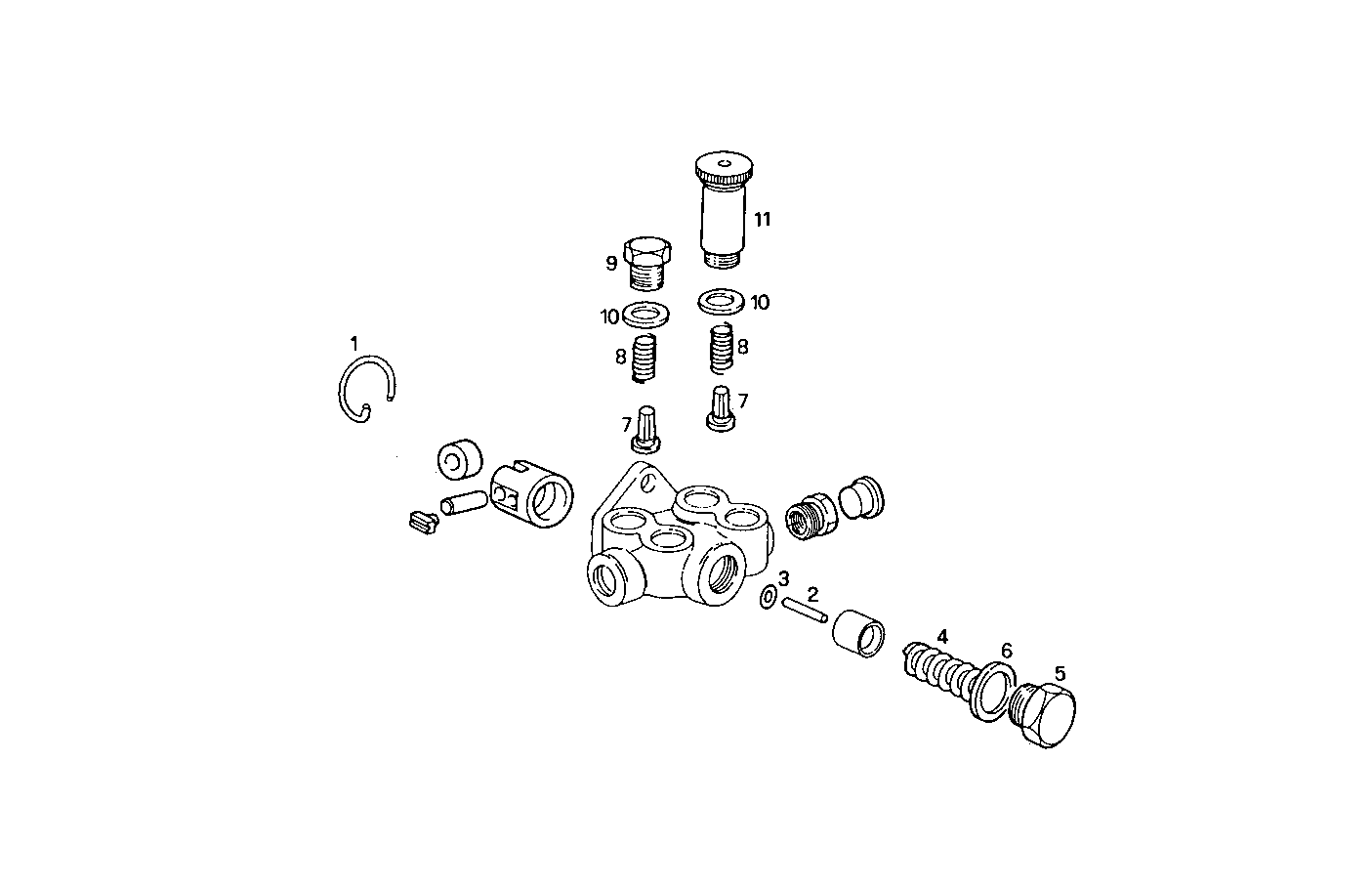

2040.034 FUEL PUMP (COMPONENTS)
Item | Part number | Description |
---|---|---|
1 | 1290591 | CIRCLIP |
2 | 42484672 | SCREEN |
3 | 1289782 | O-RING |
4 | 79038378 | SPRING |
5 | 9930056 | PLUG |
6 | 1290550 | GASKET |
7 | 9930058 | VALVE |
8 | 1290593 | SPRING |
9 | 9922405 | PLUG |
10 | 1287773 | GASKET |
11 | 8093585 | HAND PUMP |
