GE8210SRi28.00R970

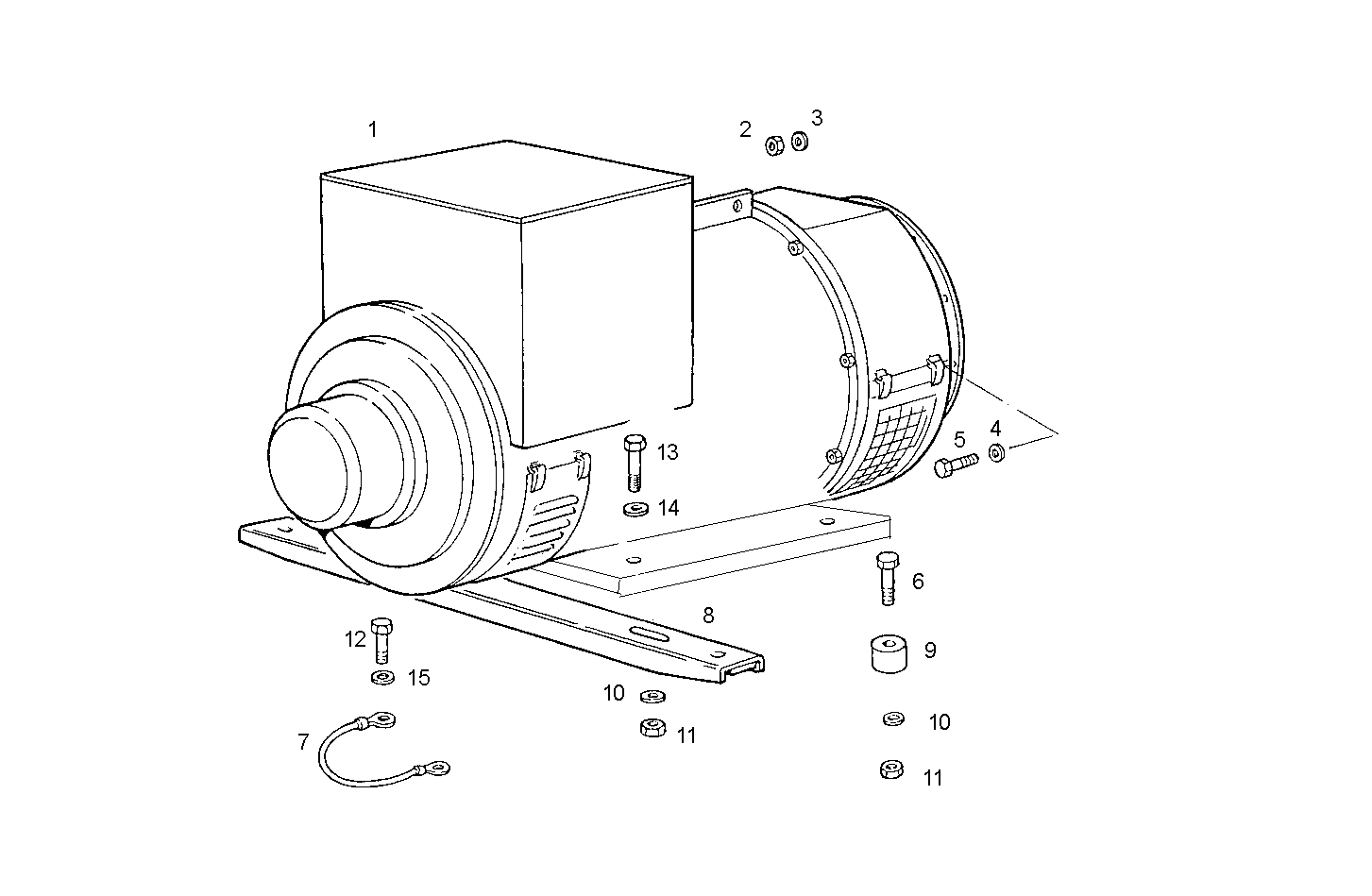

A37010085 SINGLE BEARING ELECTRIC MACHINE - STAMFORD
| Item | Part number | Description |
|---|---|---|
| 1 | 8031144 | ELECTRIC MACHINE HC 444 1F 350KVA |
| 2 | 15970921 | HEXAGON BOLT M10X1,25X35 MM |
| 3 | 17090174 | SPRING WASHER Ø10X20 MM |
| 4 | 17091174 | SPRING WASHER Ø12X24 MM |
| 5 | 15542731 | HEXAGON BOLT M12X1,25X28 MM |
| 6 | 16620624 | SCREW M24X130 |
| 7 | 8110852 | EARTH WIRE |
| 8 | 8016859 | SUPPORT |
| 9 | 8108891 | SPACING BAR |
| 10 | 17093174 | WASHER Ø24X46X5,4 MM |
| 11 | 17039721 | HEXAGON NUT M24 |
| 12 | 16607424 | SCREW M10X16 |
| 13 | 16620224 | SCREW M24X90 |
| 14 | 17096214 | WASHER |
| 15 | 16665604 | WASHER Ø10X20 MM |
