GE8210SRi28.00R970

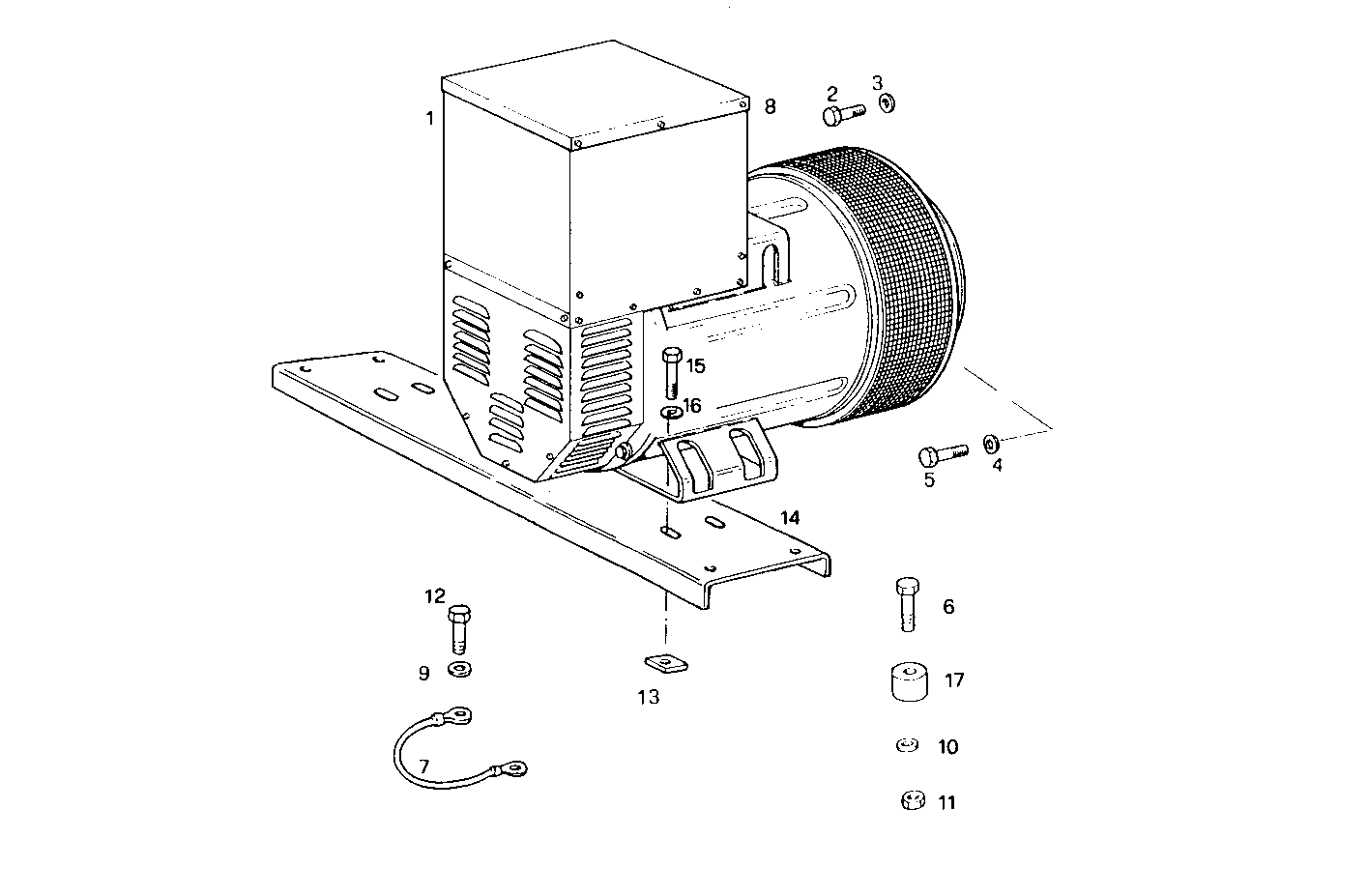

A37410069 SINGLE BEARING ELECTRIC MACHINE
| Item | Part number | Description |
|---|---|---|
| 1 | 504085562 | ELECTRIC MACHINE ECO 383 L 350KVA |
| 2 | 15004624 | HEXAGON BOLT M10X50 MM |
| 3 | 17090174 | SPRING WASHER Ø10X20 MM |
| 4 | 17091174 | SPRING WASHER Ø12X24 MM |
| 5 | 15540434 | HEXAGON BOLT M12X1,5 |
| 6 | 16621024 | SCREW M24X180 |
| 7 | 8110852 | EARTH WIRE |
| 8 | 17098590 | RIVET |
| 9 | 16665604 | WASHER Ø10X20 MM |
| 10 | 17093174 | WASHER Ø24X46X5,4 MM |
| 11 | 17039721 | HEXAGON NUT M24 |
| 12 | 16607434 | HEXAGON BOLT M10X16 MM |
| 13 | 8019231 | PLATE |
| 14 | 8019196 | SUPPORT |
| 15 | 16617625 | SCREW M20X70 |
| 16 | 17092774 | WASHER Ø20X38X4,6 MM |
| 17 | 8016970 | SPACING BAR |
