Catalogue Menu

GE8281M32.30A001

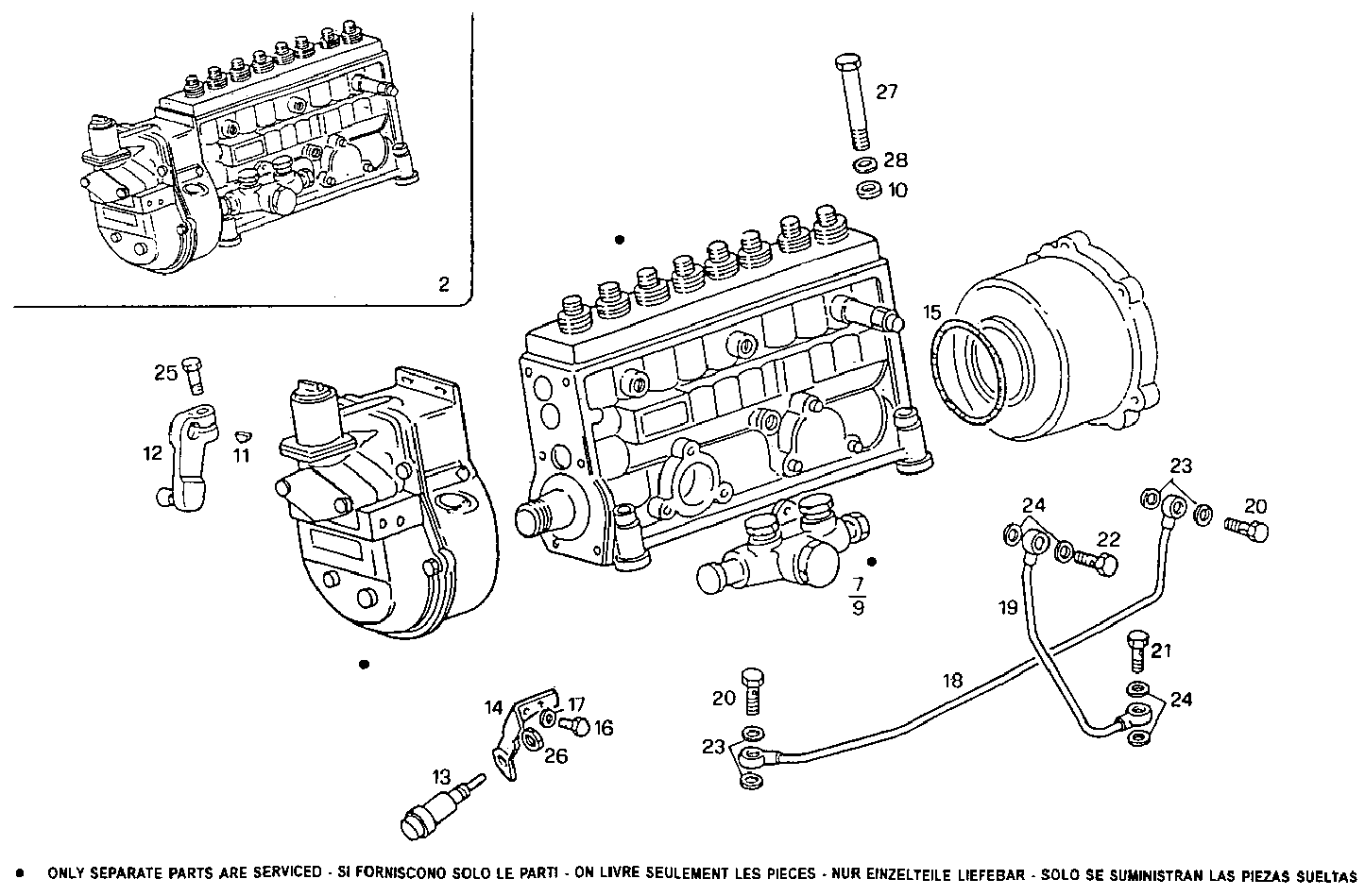

1400.320 INJECTION PUMP ASSY

Iveco/FPT INJECTION PUMP ASSY

Item Part number Description
2 8006710 INLINE INJECT.PUMP ASSY BOSCH
7 8092471 FUEL PUMP ASSY BOSCH
9 1173764 FUEL PUMP ASSY
10 756671 WASHER
11 10205720 KEY 3X5 MM
12 4679073 LEVER
13 4746917 THRUST ROD
14 771369 RETAINER
15 17291081 O-RING Ø88,49X3,53 MM
16 10902111 HEXAGON BOLT M6X14 MM
17 17798174 SPRING WASHER Ø6,1X11,8 MM
18 98420453 OIL LINE
19 98420456 OIL LINE
20 4864083 SCREW CONNECTOR M14X1,5X30 MM
21 4864080 SCREW CONNECTOR M10X1,25
22 4864079 SCREW CONNECTOR M10X1
23 98474308 SEAL GASKET Ø14X22 MM
24 98474305 WASHER Ø10X17 MM SP=2,3
25 16603824 SCREW M6X25
26 16979431 NUT M8
27 15971330 HEXAGON BOLT M10X75 MM
28 17090274 WASHER Ø10X20 MM
