GE8281M32.30A001

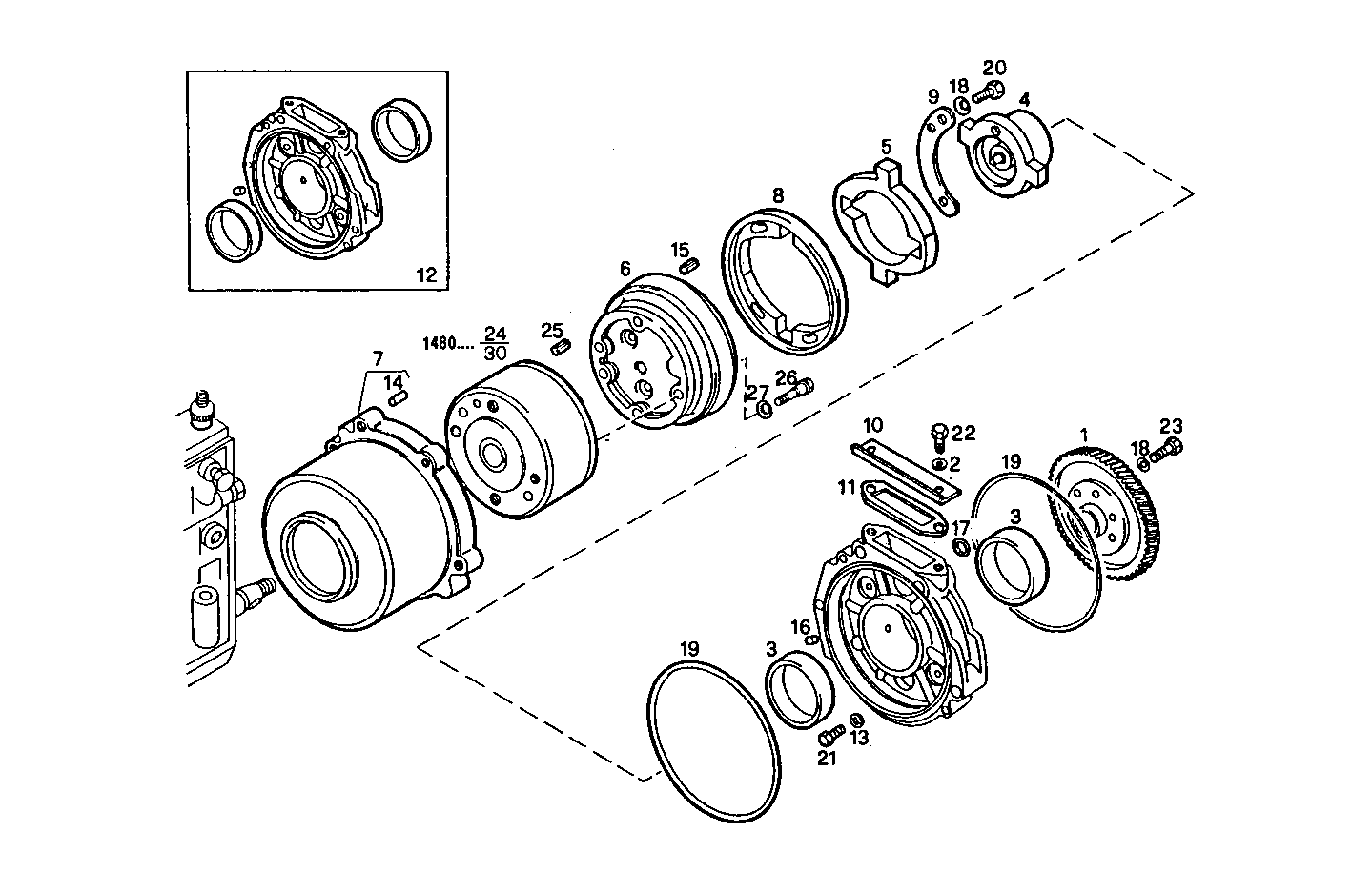

1410.023 INJECTION PUMP DRIVE

Iveco/FPT INJECTION PUMP DRIVE

Item Part number Description
1 4744445 INJ.PUMP DRIV.GEA
2 17094914 WASHER 8x16
3 4686615 BUSH
4 4800246 INJECT.PUMP SPIND
5 4797215 FLANGE
6 4689367 SPACING BAR ASSY
7 4686275 HOUSING ASSY
8 4797214 FLANGE
9 4695415 STOP PLATE
10 4703707 COVER
11 4863493 FLAT ENGINE GASKET
12 4686273 SUPPORT ASSY
13 17089874 WASHER Ø8X22 MM
14 10837610 DOWEL PIN Ø8 MM
15 14603470 DOWEL PIN
16 10269150 LOCK PLUG M6X1
17 17281481 O-RING Ø10,7 MM SP=2,6 MM
18 17089574 WASHER Ø8X16 MM
19 17293481 O-RING Ø177,4 MM SP=3,5 MM
20 16605624 HEXAGON BOLT M8X25 MM (8.8)
21 16605424 SCREW M8X16 MM (8.8)
22 16043021 HEXAGON BOLT M8X12 MM
23 16320933 HEXAGON BOLT ASSY MARELLI
24 771445 ADVANCE UNIT ASSY BOSCH
25 4686653 DOWEL PIN
26 4735951 SCREW
27 11198474 SPRING WASHER Ø10X27 MM
30 4756609 ADVANCE UNIT ASSY WEBER ALTECNA
