GE8281M32.30A001

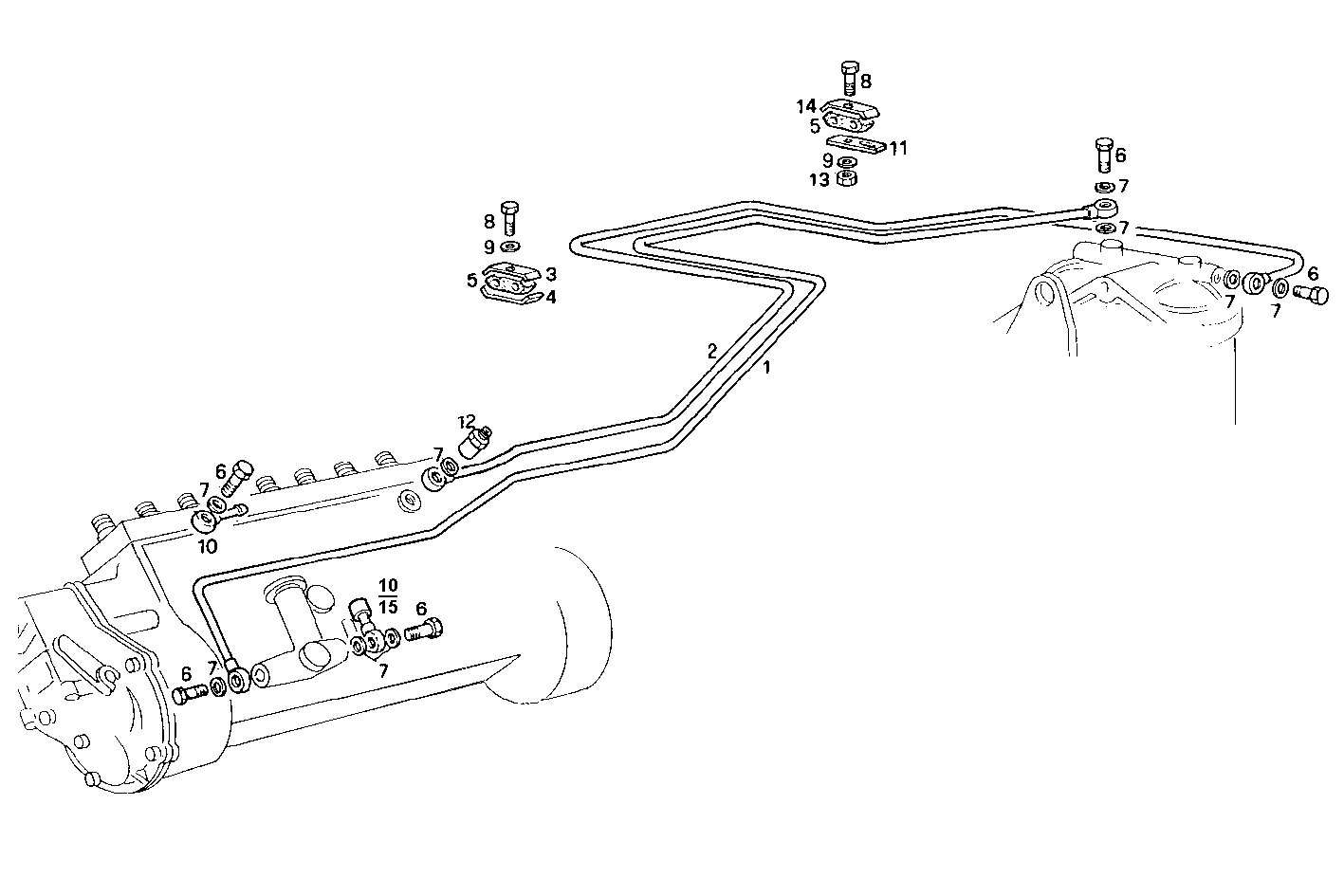

2030.031 FUEL LINES
| Item | Part number | Description |
|---|---|---|
| 1 | 8014475 | FUEL LINE |
| 2 | 8014476 | FUEL LINE |
| 3 | 4644288 | CLIP |
| 4 | 4644289 | CLIP |
| 5 | 4871771 | RUBBER LUG |
| 6 | 4864083 | SCREW CONNECTOR M14X1,5X30 MM |
| 7 | 98474308 | SEAL GASKET Ø14X22 MM |
| 8 | 10902621 | SCREW M6X25 MM |
| 9 | 17088474 | WASHER Ø6X12 MM |
| 10 | 98404882 | PIPE SOCKET Ø8 MM |
| 11 | 8005504 | RETAINER |
| 12 | 8102465 | VALVE |
| 13 | 15896211 | HEXAGON NUT M6 |
| 14 | 4641551 | CLAMP |
| 15 | 8030222 | PIPE SOCKET D [from 01-09-02] |
