GE8281M32.30A001

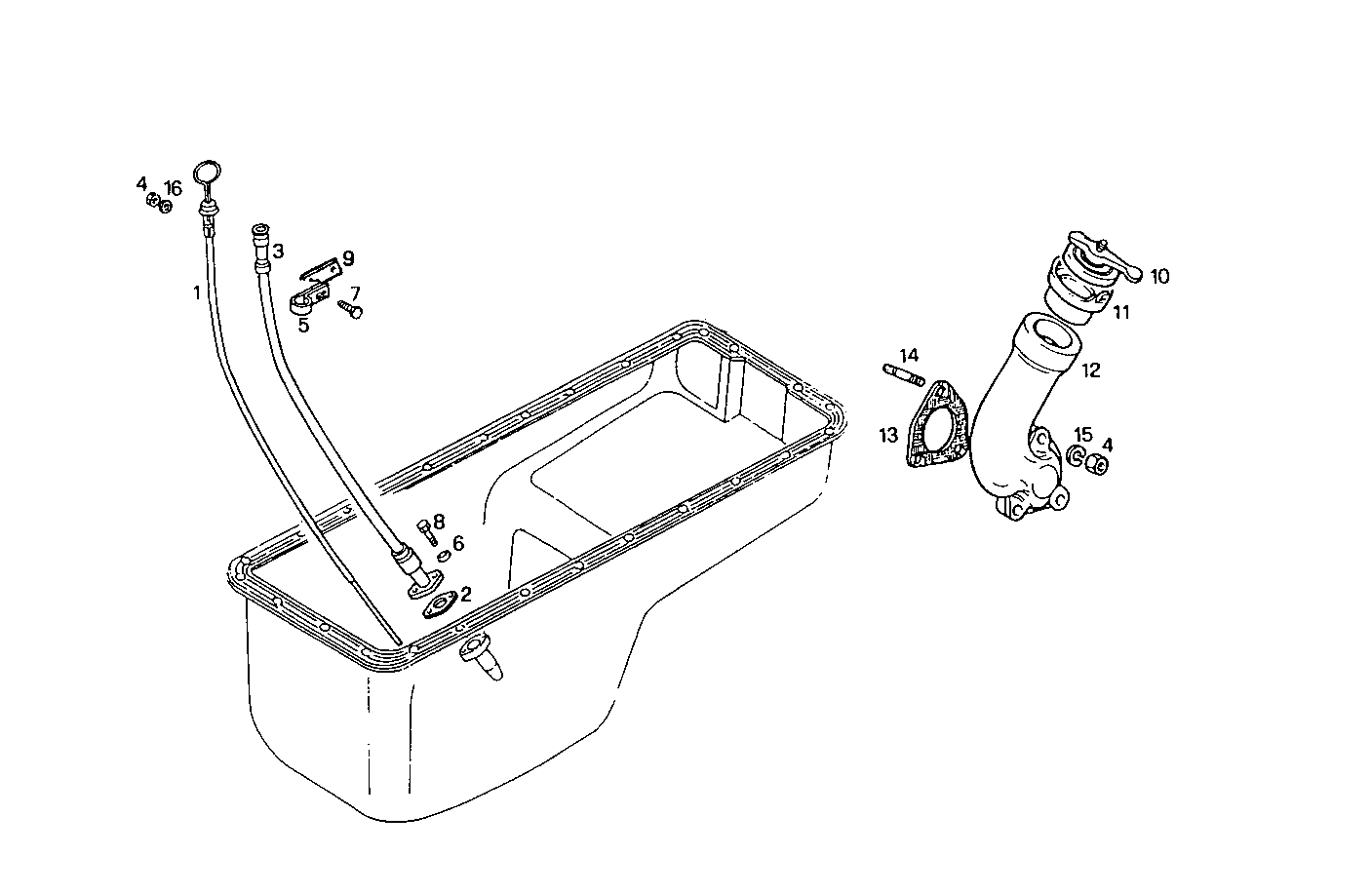

2710.083 OIL DIPSTICK
| Item | Part number | Description |
|---|---|---|
| 1 | 4934496 | OIL DIPSTICK |
| 2 | 98401052 | FLAT ENGINE GASKET |
| 3 | 4696150 | ROD GUIDE |
| 4 | 17037931 | HEXAGON NUT M8X1,25 |
| 5 | 10450390 | PIPE CLIP Ø20X26 MM SP=1,5 MM |
| 6 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 7 | 16043221 | HEXAGON BOLT M8X16 MM |
| 8 | 16605524 | HEXAGON BOLT M8X20 MM |
| 9 | 8100819 | RETAINER |
| 10 | 61657884 | OIL FILLER PLUG |
| 11 | 61228426 | PLUG |
| 12 | 4687394 | FILLER NECK |
| 13 | 4863490 | FLAT ENGINE GASKET |
| 14 | 13517221 | STUD M8X12X30 MM |
| 15 | 17089874 | WASHER Ø8X22 MM |
| 16 | 11198379 | SPRING WASHER Ø10X20 MM SP=2,6 |
