GE8281M32.30A001

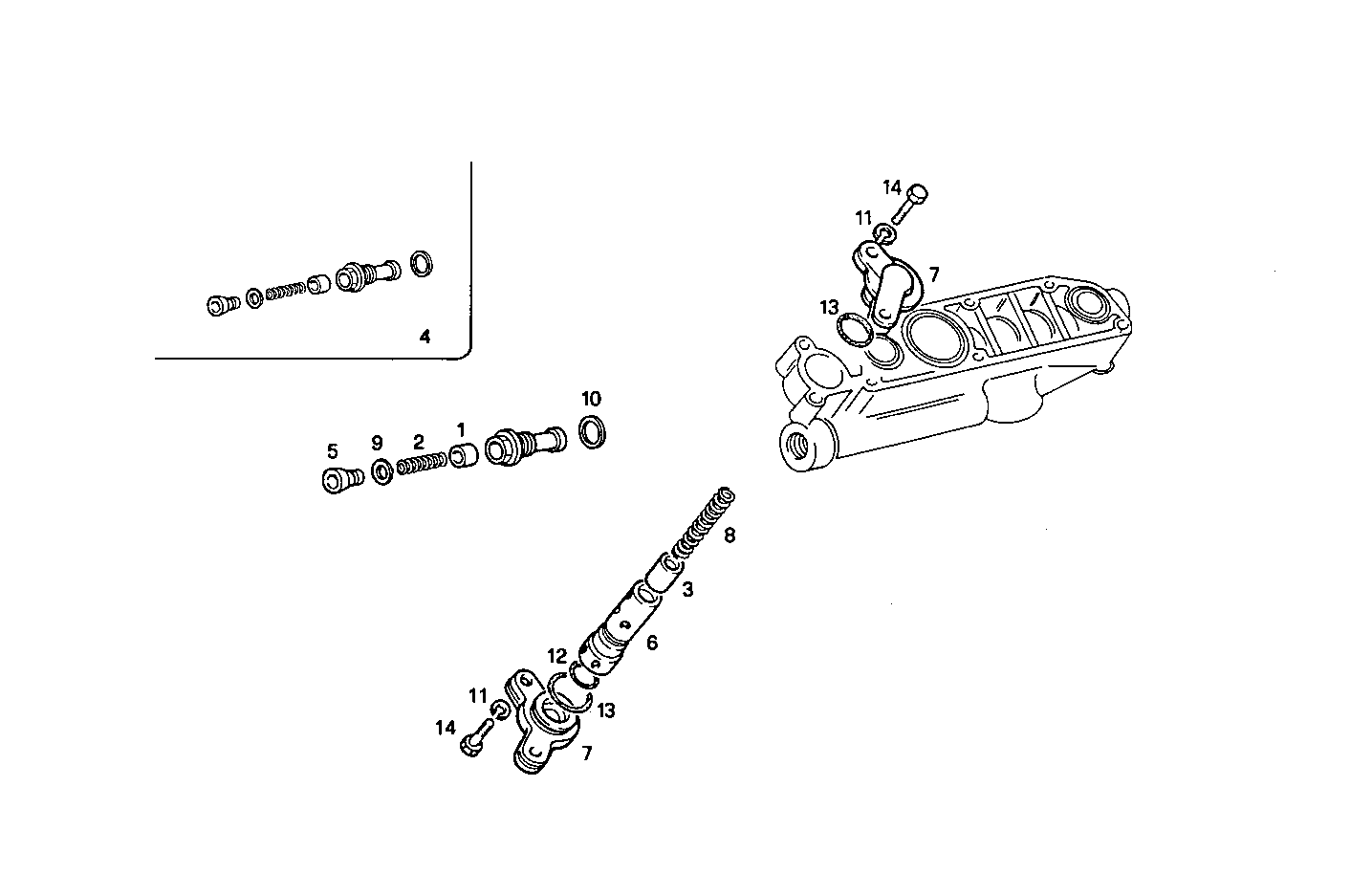

3030.017 OIL PRESSURE VALVE
| Item | Part number | Description |
|---|---|---|
| 1 | 564432 | OIL PUMP VALVE |
| 2 | 4750282 | SPRING |
| 3 | 4672842 | VALVE |
| 4 | 4752720 | BYPASS VALVE ASSY [up to 110430] |
| 5 | 4750297 | PLUG |
| 6 | 4676506 | VALVE HOUSING |
| 7 | 4676507 | COVER |
| 8 | 4677094 | SPRING |
| 9 | 10257460 | SEAL GASKET Ø20X26 MM SP=1,5 MM [up to ...] |
| 10 | 10265160 | SEAL GASKET Ø35,3 MM |
| 11 | 11198171 | SPRING WASHER Ø8,4 MM |
| 12 | 14457581 | O-RING Ø20,29 MM SP=2,62 MM |
| 13 | 14458081 | O-RING SP=2,62 MM |
| 14 | 16043624 | SCREW M8X25 |
