GE8281M32.30A001

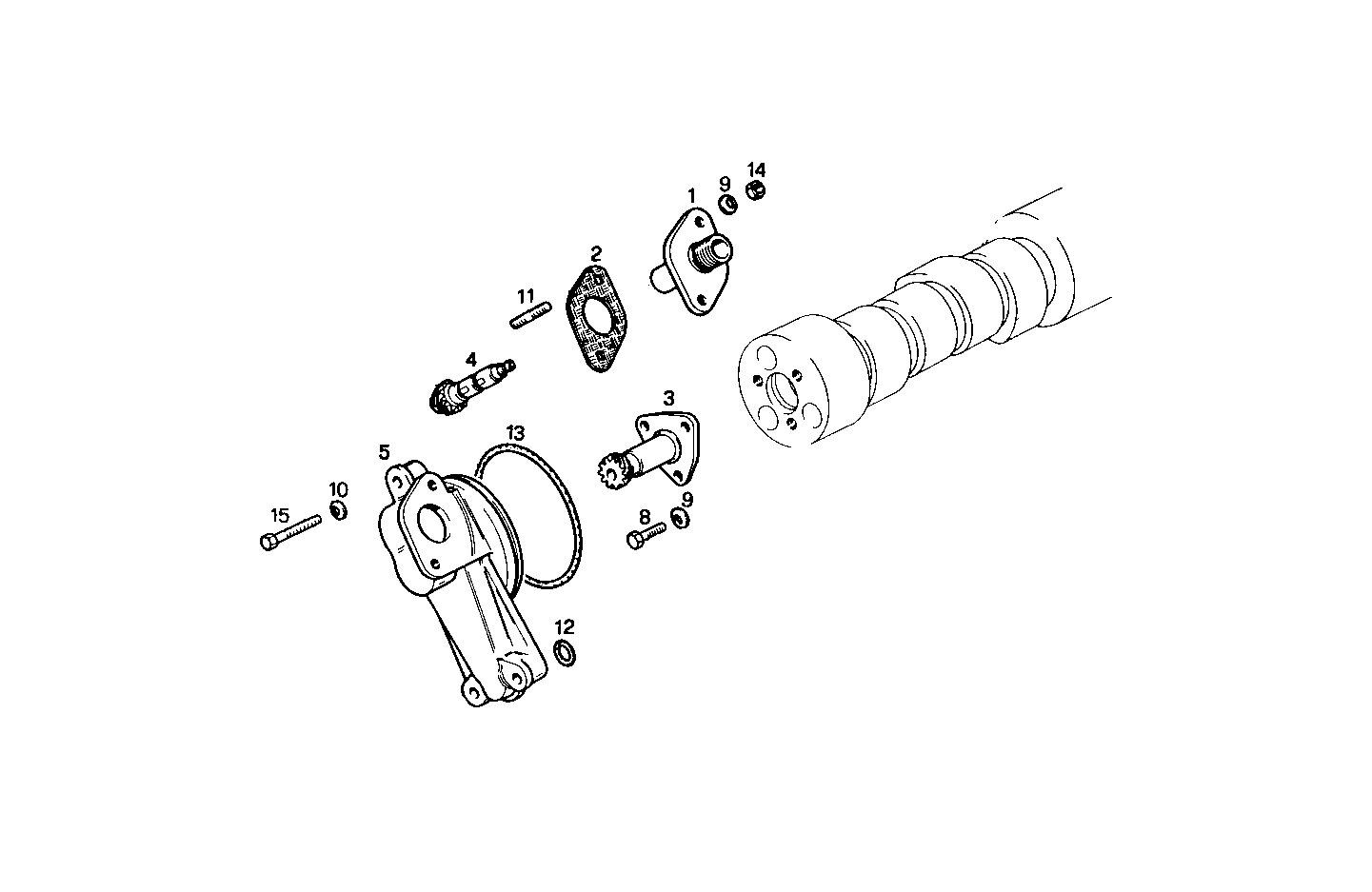

4200.008 REVOLUTION COUNTER DRIVE
| Item | Part number | Description |
|---|---|---|
| 1 | 4662484 | SUPPORT |
| 2 | 4863499 | FLAT ENGINE GASKET |
| 3 | 4672608 | SHAFT |
| 4 | 4672686 | SHAFT |
| 5 | 4677927 | HOUSING |
| 6 | 10278301 | LOCK PLUG M28 |
| 7 | 10296260 | SEAL GASKET Ø28X36 MM SP=1,5 MM |
| 8 | 10902121 | HEXAGON BOLT M6X14 MM |
| 9 | 11197771 | SPRING WASHER Ø6X12 MM SP=1,2 MM |
| 10 | 11198171 | SPRING WASHER Ø8,4 MM |
| 11 | 11500121 | STUD M6X9X14 MM |
| 12 | 17281581 | O-RING Ø12,37X2,62 MM |
| 13 | 17285281 | O-RING Ø71,12 MM SP=2,62 MM |
| 14 | 15896211 | HEXAGON NUT M6 |
| 15 | 16625734 | HEXAGON BOLT M8X35 |
