GE8281M32.30A001

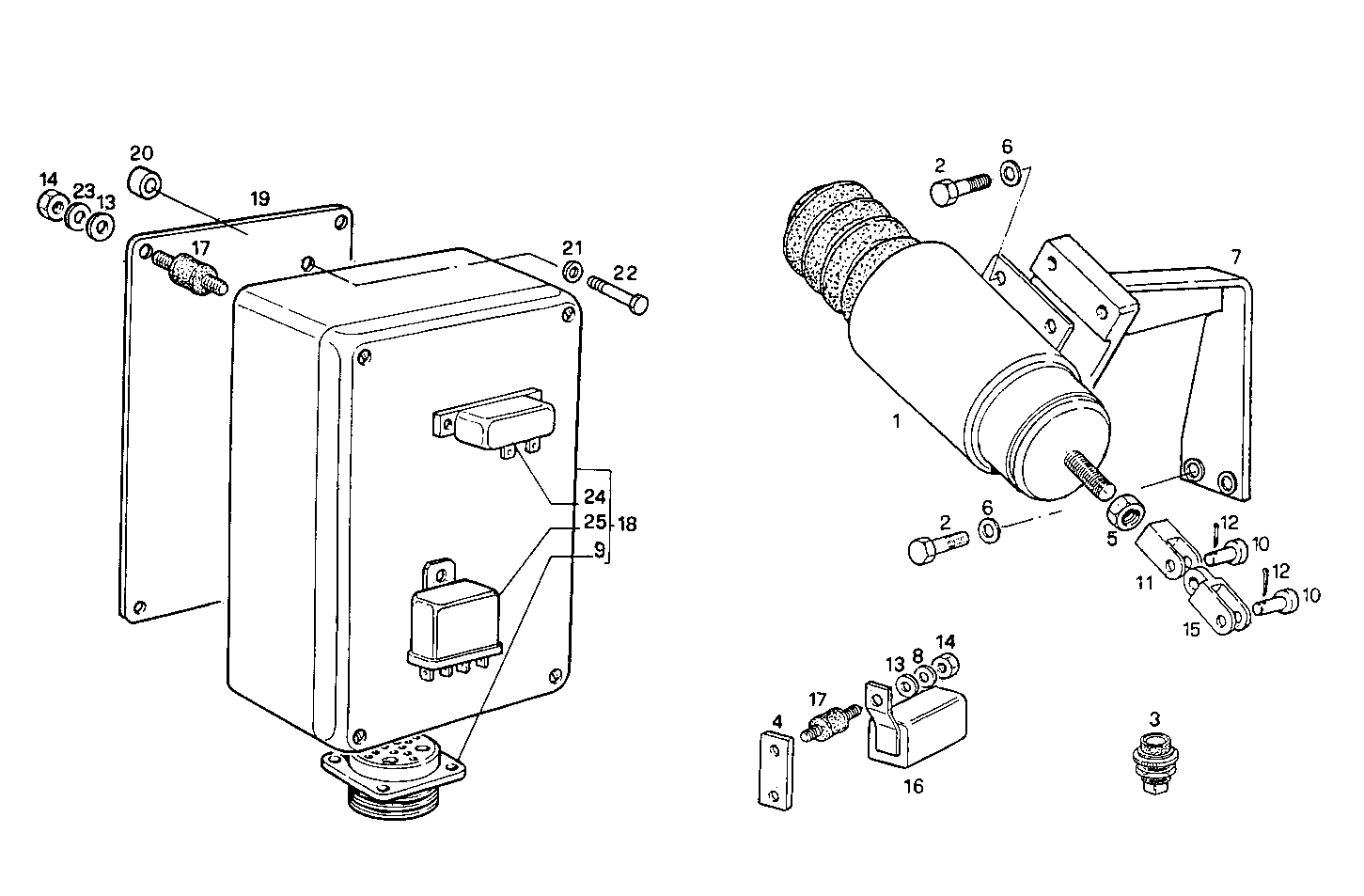

5650.009 ELECTRIC STOP ENGINE
Item | Part number | Description |
---|---|---|
1 | 8105568 | SOLENOID |
2 | 10902221 | HEXAGON BOLT M6X16 MM |
3 | 8105611 | PUSH BUTTON STOP |
4 | 8006517 | RETAINER [up to 05-95] |
5 | 15896211 | HEXAGON NUT M6 |
6 | 11197779 | SPRING WASHER Ø6X12 MM |
7 | 8110754 | SUPPORT [up to 12-90] |
8 | 17494631 | SPRING WASHER Ø5 MM |
9 | 8113170 | CONNECTION ASSY |
10 | 17718411 | PIN Ø5 MM |
11 | 8109159 | CLEVIS M6X40 |
12 | 10734101 | SPLIT PIN Ø1,3 MM |
13 | 14496301 | WASHER Ø5,4 MM |
14 | 15896411 | HEXAGON NUT M5 |
15 | 8108833 | CLEVIS |
16 | 8109519 | RELAY STOP [up to 05-95] |
17 | 8105105 | DOWEL |
18 | 8006413 | ENGINE STOP ASSY [from 12-90] |
19 | 8009306 | PLATE [from 05-95] |
20 | 13606411 | SPACER SP=8,5 MM |
21 | 11193979 | SPRING WASHER Ø8X22 MM |
22 | 16044421 | HEXAGON BOLT M8X60 MM |
23 | 10615379 | TOOTHED WASHER Ø5,3 MM |
25 | 8108575 | RELAY STARTER [up to 12-90] |
