GE8281M32.30A001

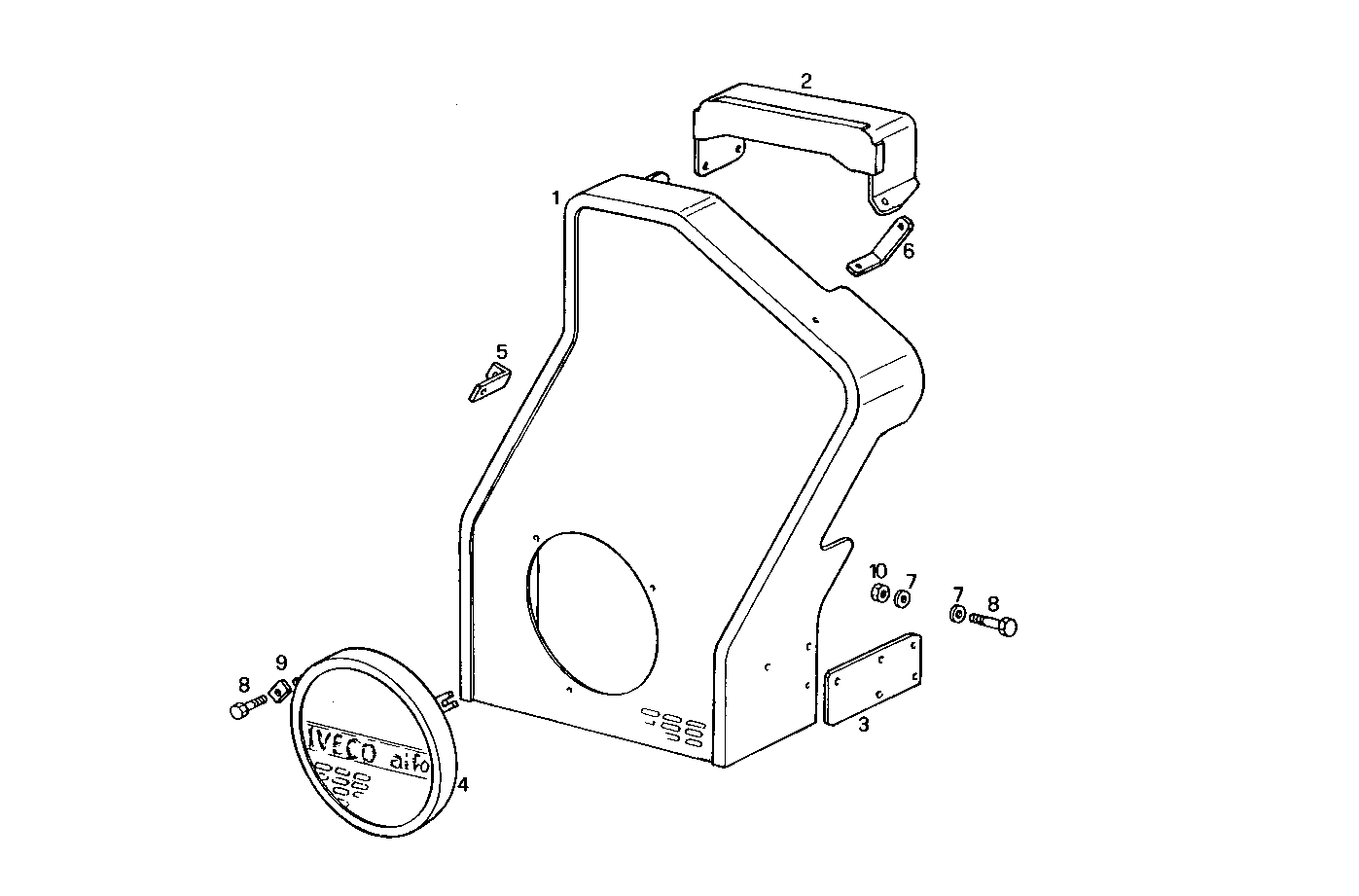

5770.033 SHIELDS
| Item | Part number | Description |
|---|---|---|
| 1 | 8025403 | PROTECTION |
| 2 | 8025456 | PROTECTION |
| 3 | 8025430 | RETAINER |
| 4 | 8022086 | COVER |
| 5 | 8025459 | RETAINER |
| 6 | 8025458 | RETAINER |
| 7 | 17089574 | WASHER Ø8X16 MM |
| 8 | 16605424 | SCREW M8X16 MM (8.8) |
| 9 | 7300648 | LOCKING PLATE |
| 10 | 17037821 | HEXAGON NUT M6X1 |
