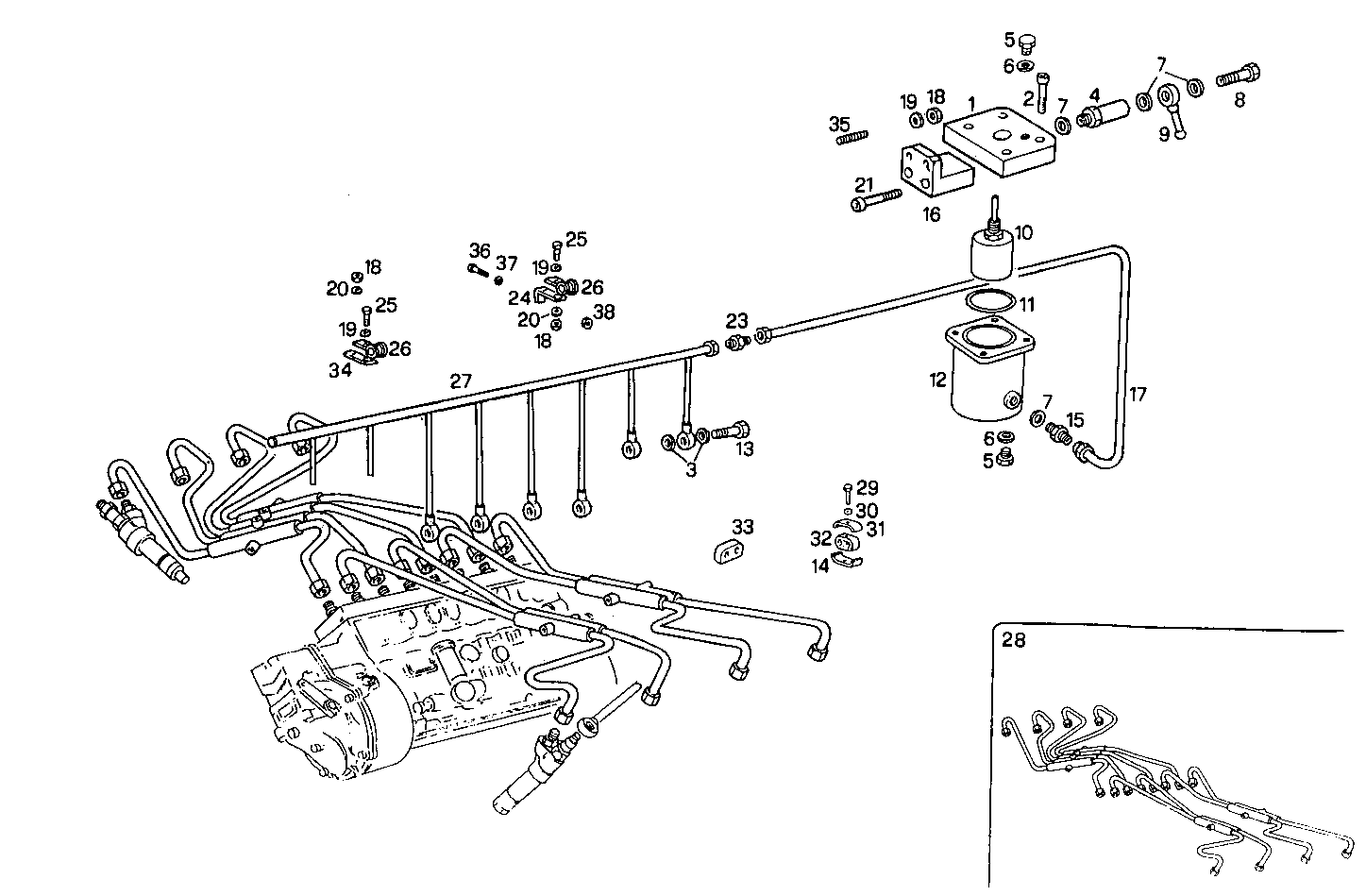

| Item |
Part number |
Description |
|
1 |
8020291 |
DISTRIBUTOR |
|
2 |
16689424 |
SOCKET-HEAD SCREW M6X30 MM |
|
3 |
98474303 |
WASHER Ø8X14 MM SP=2,3 MM |
|
4 |
8102465 |
VALVE |
|
5 |
16992211 |
THREADED PLUG M12X1,5 |
|
6 |
4858607 |
WASHER Ø12X17 MM SP=1,5 MM |
|
7 |
4858608 |
SEAL GASKET dia.14x19,5x1,5 |
|
8 |
4864083 |
SCREW CONNECTOR M14X1,5X30 MM |
|
9 |
98413896 |
PIPE SOCKET Ø8 MM |
|
10 |
8102285 |
INDICATOR |
|
11 |
17290081 |
O-RING Ø56,74 MM SP=3,53 MM |
|
12 |
8026365 |
TANK |
|
13 |
4864078 |
BANJO BOLT M8X1,25 |
|
14 |
4659219 |
PLATE |
|
15 |
16500211 |
THREADED UNION |
|
16 |
8020304 |
CHOCK |
|
17 |
8029490 |
FUEL LINE |
|
18 |
17037931 |
HEXAGON NUT M8X1,25 |
|
19 |
17089474 |
SPRING WASHER Ø8X16 MM SP=1,4 MM |
|
20 |
17094904 |
WASHER Ø8X16X1,6 MM |
|
21 |
16691124 |
SOCKET-HEAD SCREW M8X50 MM |
|
23 |
16501711 |
THREADED UNION |
|
24 |
8111937 |
RETAINER |
|
25 |
16605424 |
SCREW M8X16 MM (8.8) |
|
26 |
17316490 |
CLIP |
|
27 |
8022479 |
INJECTION LINE |
|
28 |
8101952 |
INJECTION LINE SET |
|
29 |
16602224 |
HEXAGON BOLT M5X20 MM |
|
30 |
17494634 |
SPRING WASHER Ø5,1X9,2 MM |
|
31 |
4659218 |
CLIP |
|
32 |
4659217 |
DOWEL |
|
33 |
8110955 |
RUBBER PAD |
|
34 |
8107204 |
RETAINER |
|
35 |
16729324 |
STUD M8X12X20 MM |
|
36 |
16607924 |
HEXAGON BOLT M10X1,5X40 MM |
|
37 |
17090174 |
SPRING WASHER Ø10X20 MM |
|
38 |
17038121 |
HEXAGON NUT M10 |
