GE8281SRG75.10A80E

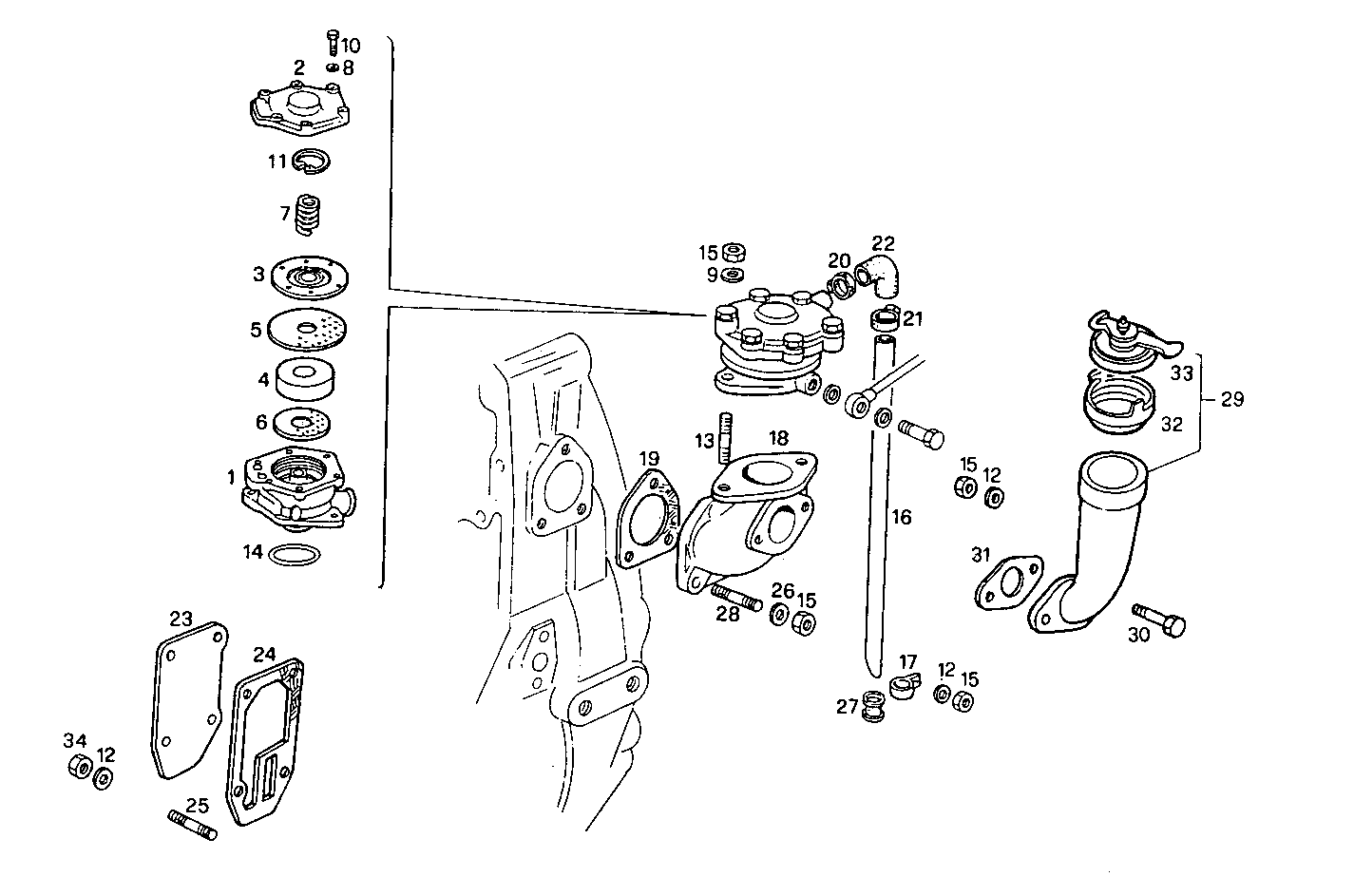

0450.129 ENGINE BREATHERS

Iveco/FPT ENGINE BREATHERS

Item Part number Description
1 4774692 BEARING HOUSING
2 4771075 COVER
3 4771078 DIAPHRAGM
4 4771079 FILTER
5 4771080 DISC
6 4771081 DISC
7 4812557 SPRING
8 10519401 WASHER Ø6X12 MM
9 10519601 WASHER Ø8X17 MM
10 10902811 HEXAGON BOLT M6X30 MM
11 11062176 CIRCLIP Ø90,5 MM
12 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
13 12354521 STUD M8X16X22
14 17289681 O-RING Ø44 MM SP=3,53 MM
15 17037931 HEXAGON NUT M8X1,25
16 4810594 PIPE
17 4810595 FASTENING BRACKET
18 4858339 SUPPORT
19 4863490 FLAT ENGINE GASKET
20 17764592 CLIP Ø20/32 MM
21 17764992 CLIP Ø50-70 MM
22 4865232 RUBBER SLEEVE
23 4801982 COVER
24 4863495 FLAT ENGINE GASKET
25 13516821 STUD M8X12X20 MM
26 17089874 WASHER Ø8X22 MM
27 4747140 RUBBER PAD
28 16729424 STUD M8X1,25X25
29 4858641 FILLER NECK
30 16605624 HEXAGON BOLT M8X25 MM (8.8)
31 98418621 GASKET
32 61585294 FILLER NECK
33 61688466 PLUG
34 17037821 HEXAGON NUT M6X1
