GE8281SRG75.10A80E

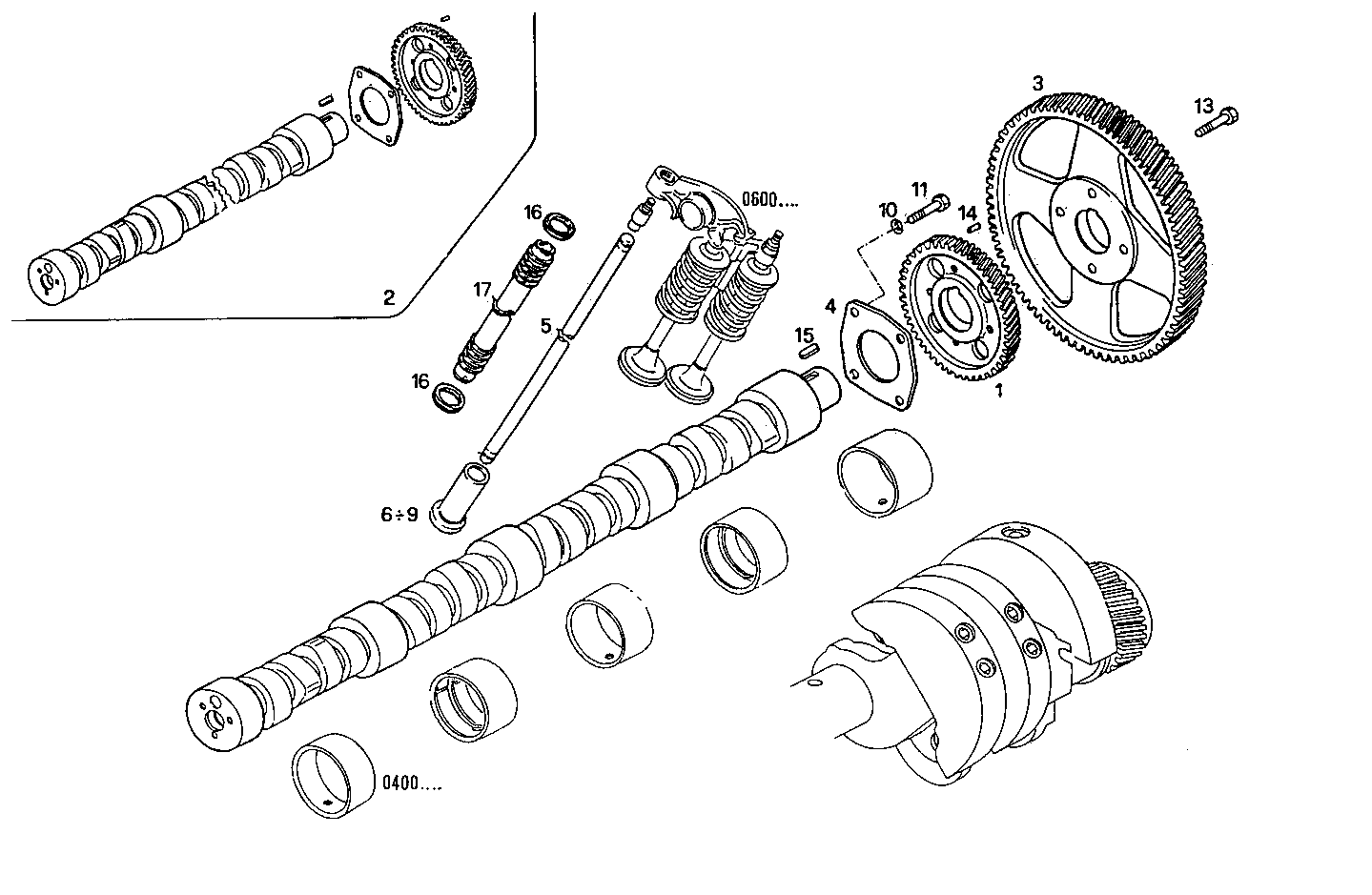

1250.046 TIMING PARTS
Item | Part number | Description |
---|---|---|
1 | 4859821 | CAMSHAFT PINION |
2 | 99465062 | CAMSHAFT ASSY |
3 | 4744443 | TIMING DRIVE GEAR |
4 | 4684267 | PLATE |
5 | 98473330 | PUSHROD SAPES |
6 | 99449378 | VALVE TAPPET +0,0 MM |
7 | 99449379 | TAPPET +0,1 MM |
8 | 99449380 | TAPPET +0,2 MM |
9 | 99449381 | TAPPET +0,3 MM |
10 | 17089574 | WASHER Ø8X16 MM |
11 | 16605734 | HEXAGON BOLT M8X30 MM |
13 | 14348931 | SCREW M10X1,25X25 |
14 | 10839510 | DOWEL PIN |
15 | 10553920 | KEY 8X5 MM |
16 | 4672177 | WASHER |
17 | 4672175 | LINER |
