GE8281SRG75.10A80E

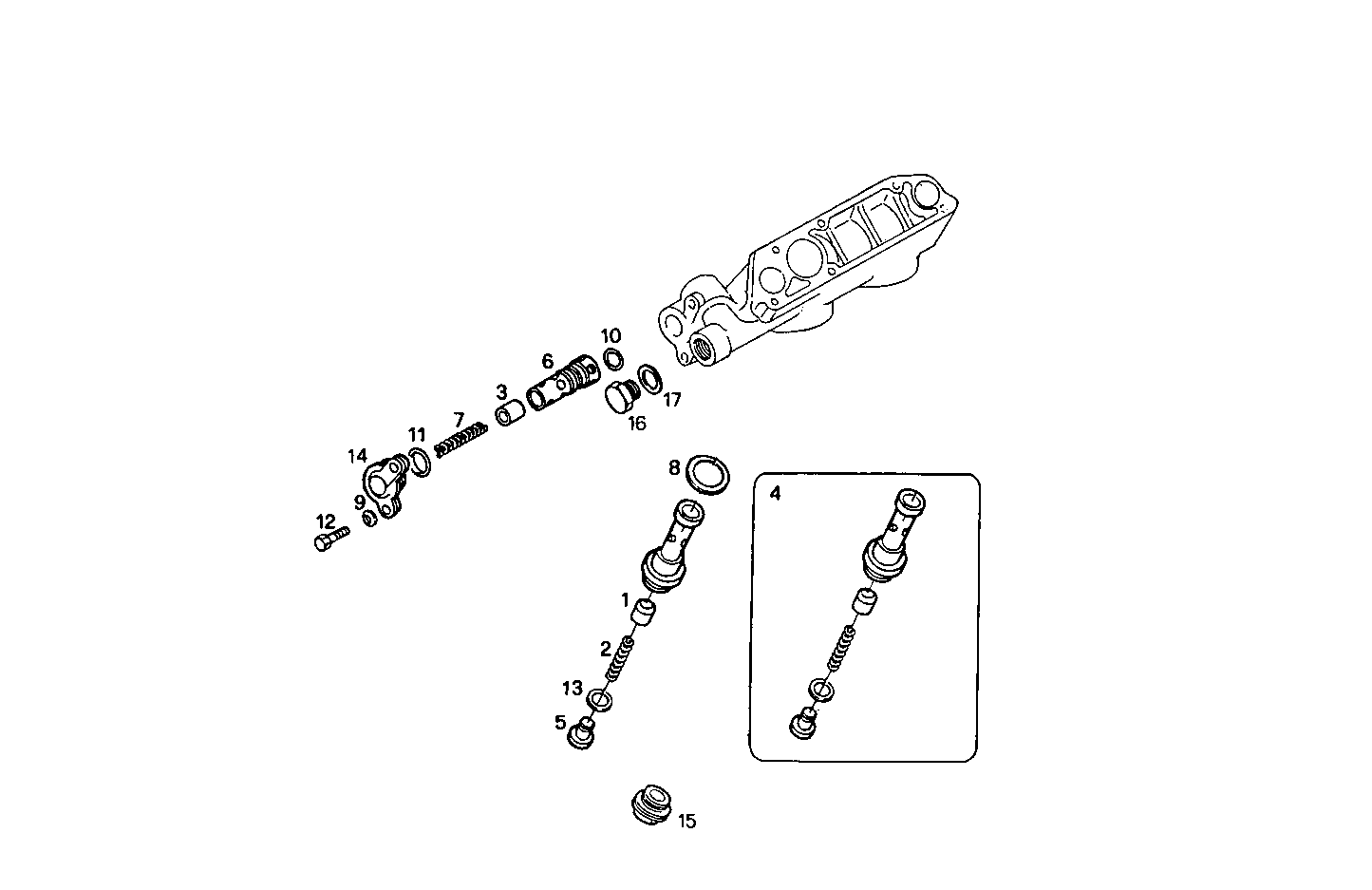

3030.016 OIL PRESSURE VALVE

Iveco/FPT OIL PRESSURE VALVE

Item Part number Description
1 564432 OIL PUMP VALVE
2 4750282 SPRING
3 4672842 VALVE
4 4752720 BYPASS VALVE ASSY [up to 110430]
5 4750297 PLUG
6 4824764 VALVE HOUSING
7 4677094 SPRING
8 10265160 SEAL GASKET Ø35,3 MM
9 17089874 WASHER Ø8X22 MM
10 17282281 O-RING 2,62x23,47
11 17282581 O-RING Ø28,24 MM SP=2,62 MM
12 16605624 HEXAGON BOLT M8X25 MM (8.8)
13 10257460 SEAL GASKET Ø20X26 MM SP=1,5 MM [up to ...]
14 4676507 COVER
15 10278301 LOCK PLUG M28
16 16993511 LOCK PLUG M28X1,5
17 10296260 SEAL GASKET Ø28X36 MM SP=1,5 MM
