GE8281SRG75.10A80E

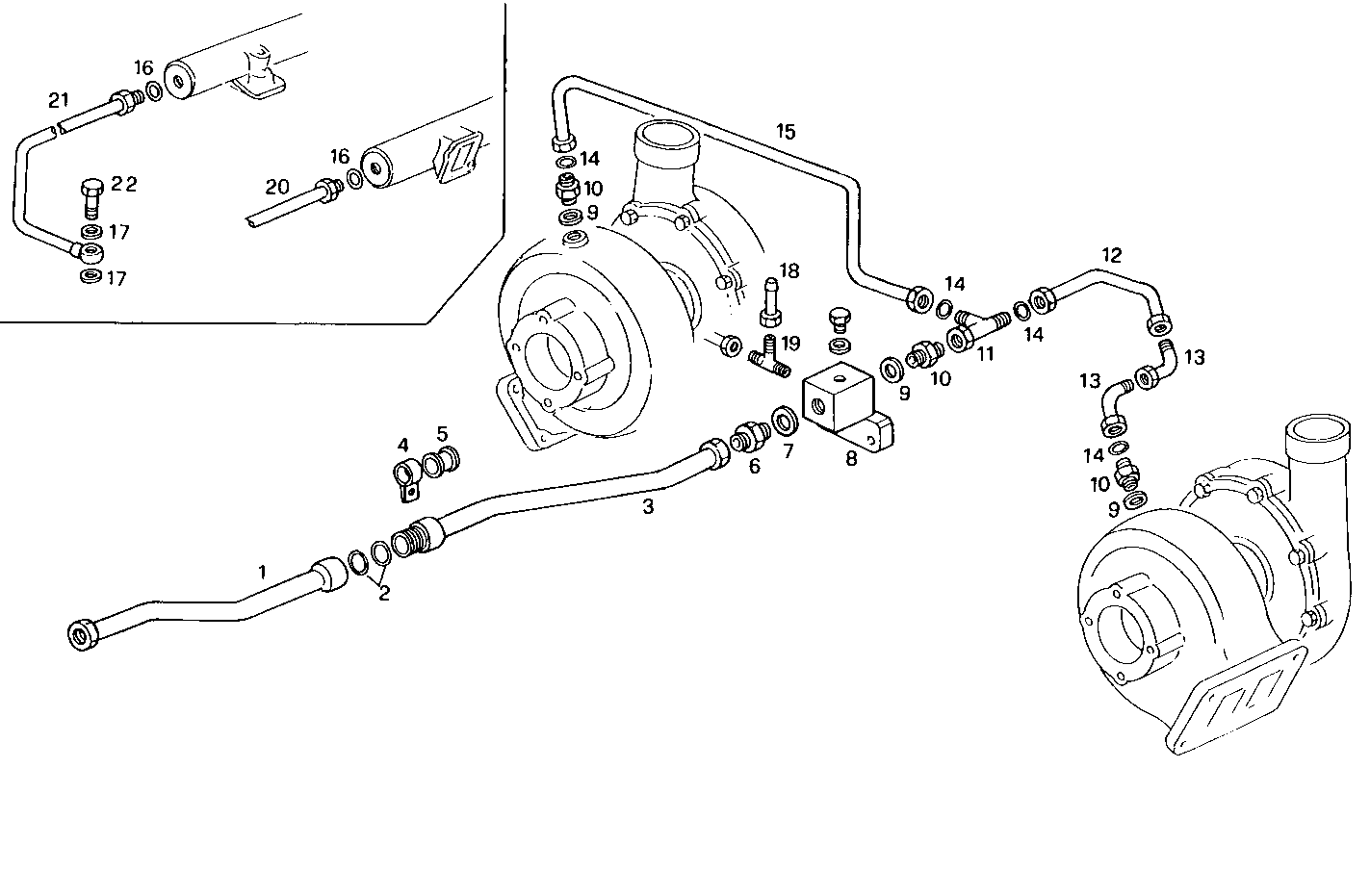

3210.188/03 WATER LINES

Iveco/FPT WATER LINES

Item Part number Description
1 8022568 WATER PIPE
2 17282781 O-RING Ø31,42 MM SP=2,62 MM
3 8025908 WATER PIPE
4 4621091 CLIP
5 4626901 CLIP
6 16527914 PIPE SOCKET
7 16528060 WASHER Ø33X39 MM SP=2 MM
8 8023388 CHOCK
9 98429280 SEAL GASKET Ø20X26 MM SP=1,5 MM
10 8110943 PIPE SOCKET M30X1,5/M25X1,5
11 16545011 T-COUPLING M30X2
12 8023863 WATER PIPE
13 16526514 ELBOW COUPLING
14 8024652 O-RING Ø15 MM
15 8023864 WATER PIPE
16 8024645 O-RING Ø4 MM
17 98474308 SEAL GASKET Ø14X22 MM
18 98405514 PIPE SOCKET
19 8022120 PIPE SOCKET
20 8022130 WATER PIPE
21 8022131 WATER PIPE
22 4864083 SCREW CONNECTOR M14X1,5X30 MM
