GE8281SRG75.10A80E

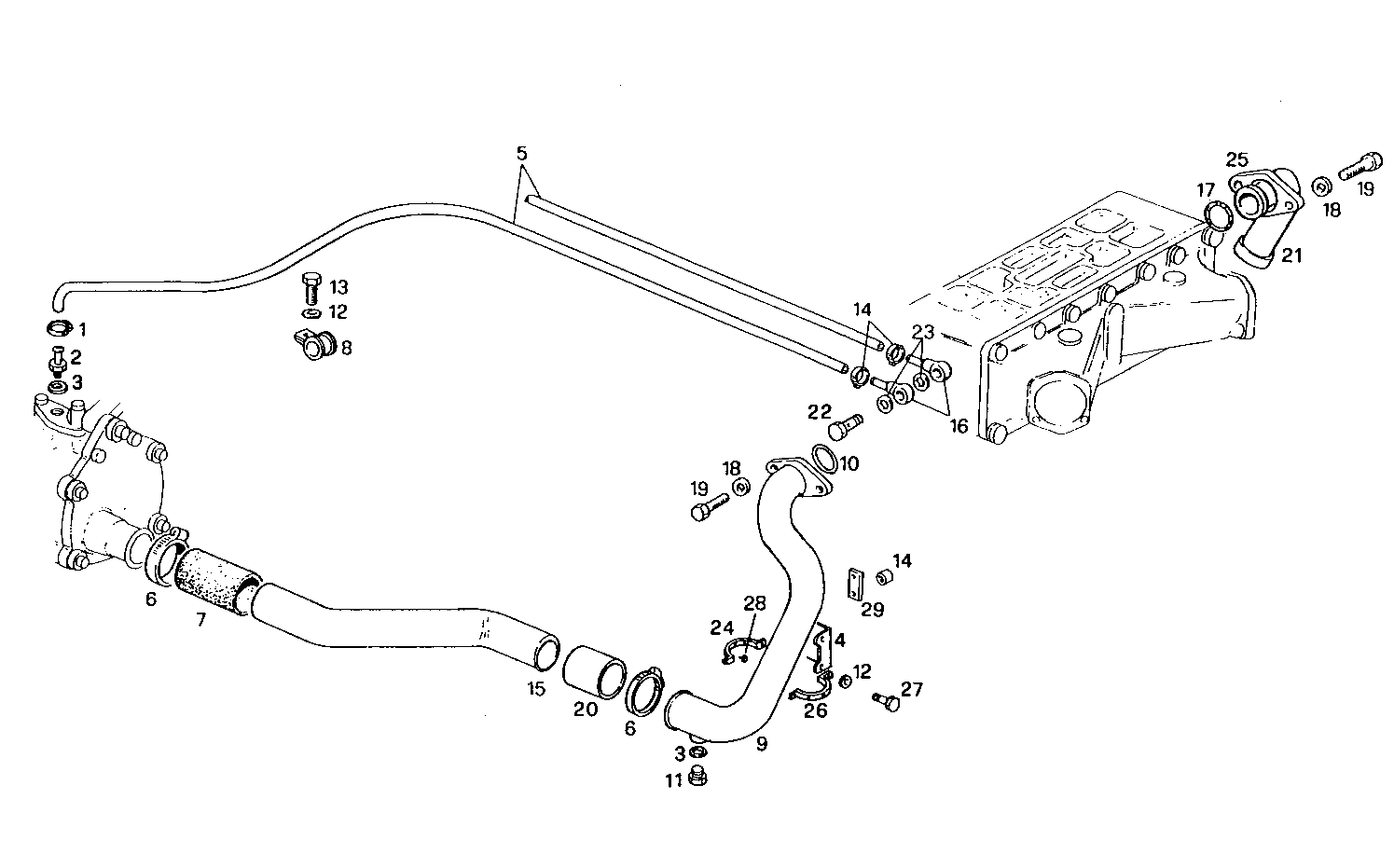

3330.010 AUXILIARY WATER LINES

Iveco/FPT AUXILIARY WATER LINES

Item Part number Description
1 18087991 CLIP Ø8/16 MM
2 4935134 OIL LINE
3 4858606 GASKET Ø10X14X1 MM
4 8007518 RETAINER
5 8017220 WATER HOSE
6 98490783 CLIP Ø55-65 MM
7 8106646 RUBBER SLEEVE
8 17316790 CLIP
9 8025767 WATER PIPE
10 17289881 O-RING Ø50,3 MM SP=3,5 MM
11 16992111 THREADED PLUG M10X1
12 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
13 16605424 SCREW M8X16 MM (8.8)
14 17816011 SPACING BAR Ø8,5 MM SP=5 MM
15 8025766 WATER PIPE
16 98405514 PIPE SOCKET
17 17289981 O-RING Ø53,57X3,53 MM
18 17091074 WASHER Ø12X24X2,8 MM
19 16693724 CYLIND-HEAD SCREW M12
20 17743887 RUBBER SLEEVE
21 8112220 EXHAUST ELBOW
22 8009696 SCREW CONNECTOR M12X1,5X25
23 98474306 WASHER Ø12X20 MM SP=1,9 MM
24 8113298 CLAMP
25 8108682 FLANGE
26 8113299 CLAMP
27 16605524 HEXAGON BOLT M8X20 MM
28 1366290 RUBBER LUG
29 8008112 RETAINER
