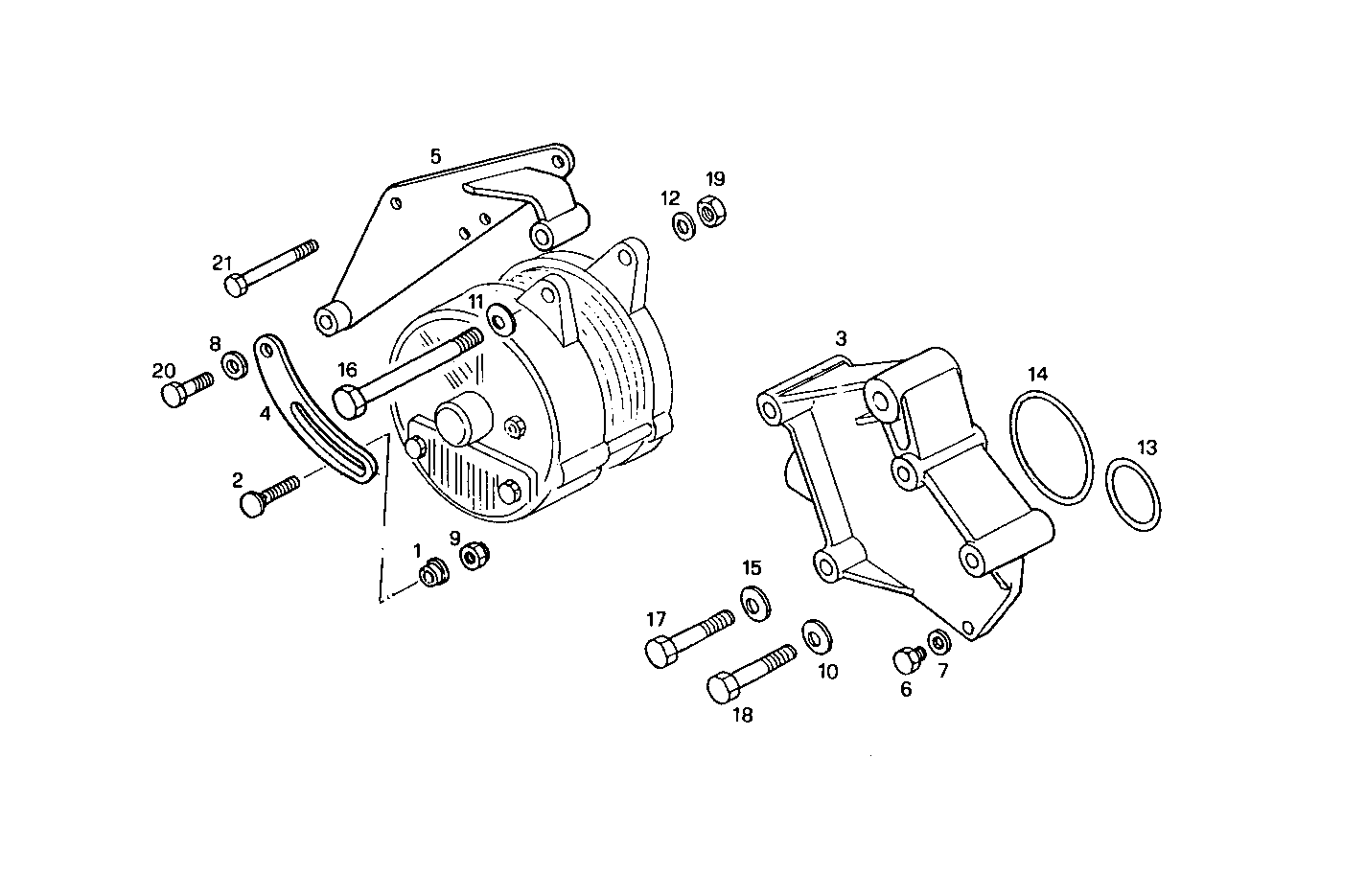

Item |
Part number |
Description |
1 |
4677044 |
SPACING BAR |
2 |
4799044 |
THREADED PIN |
3 |
4799669 |
GENERATOR SUPPORT |
4 |
4799775 |
BRACE/STRUT |
5 |
8025443 |
SUPPORT |
6 |
10278301 |
LOCK PLUG M28 |
7 |
10296260 |
SEAL GASKET Ø28X36 MM SP=1,5 MM |
8 |
17038221 |
HEXAGON NUT M10 |
8 |
17090174 |
SPRING WASHER Ø10X20 MM |
9 |
12574511 |
NUT M10X1,25 |
10 |
13579721 |
WASHER |
11 |
12646901 |
WASHER Ø12X28 MM |
12 |
17091174 |
SPRING WASHER Ø12X24 MM |
13 |
17282781 |
O-RING Ø31,42 MM SP=2,62 MM |
14 |
14461181 |
O-RING Ø2,6X88,5 MM |
15 |
17095125 |
WASHER |
16 |
15543221 |
HEXAGON BOLT M12X1,25X125 MM |
17 |
15971421 |
HEXAGON BOLT M10X1,25X80 MM |
18 |
16606024 |
SCREW M8X45 MM |
19 |
17038621 |
NUT M12 |
20 |
17090274 |
WASHER Ø10X20 MM |
20 |
16607724 |
HEXAGON BOLT M10X1,5X30 MM (8.8) |
21 |
16607024 |
HEXAGON BOLT M8X120 MM |
