GE8281SRG85.10A80E

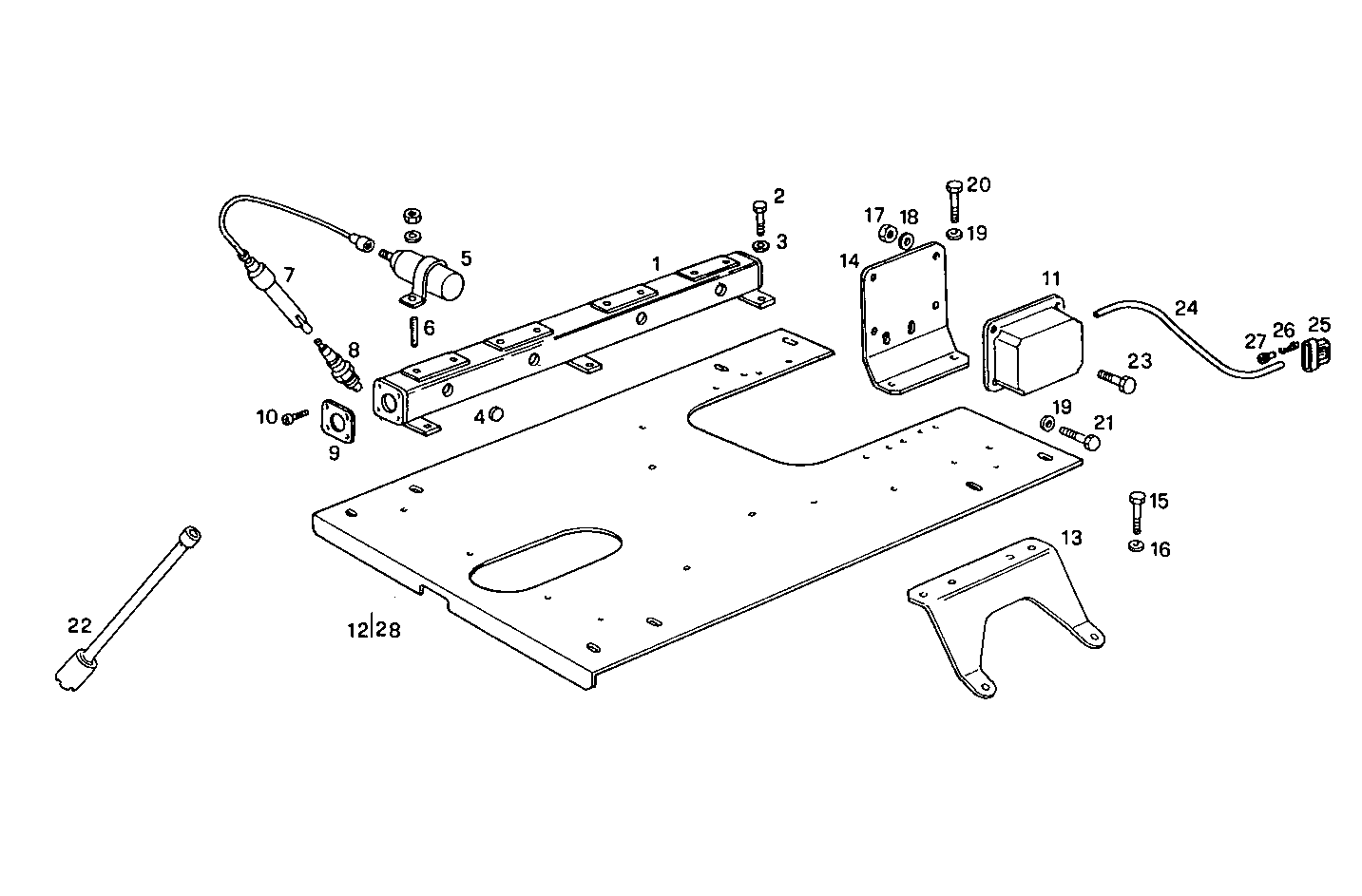

2800.009 IGNITION CONTROL - SPARK PLUGS

Iveco/FPT IGNITION CONTROL - SPARK PLUGS

Item Part number Description
1 8024153 SUPPORT
2 16607724 HEXAGON BOLT M10X1,5X30 MM (8.8)
3 17090174 SPRING WASHER Ø10X20 MM
4 17913580 PLUG
5 8018778 IGNITION COIL
6 16726424 STUD
7 8019594 SPARK PLUGS CABLE
8 8017846 GAS SPARK PLUG
9 8023546 FLANGE
10 16687924 SCREW
11 8022913 ELECTR.CONTR.UNIT
12 8026968 PLATE 1C
13 8020005 RETAINER
14 8026967 RETAINER
15 16605524 HEXAGON BOLT M8X20 MM
16 17089774 SPRING WASHER Ø8,4X22 MM SP=2,4 MM
17 17037821 HEXAGON NUT M6X1
18 17088474 WASHER Ø6X12 MM
19 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
20 16605734 HEXAGON BOLT M8X30 MM
21 16605824 HEXAGON BOLT M8X35 MM
22 8022378 SPARK PLUGS WRENCH
23 16603824 SCREW M6X25
24 8113225 HOSE L=400 MM
25 12331487 CONNECTION
26 12331654 TERMINAL
27 12326382 GASKET
28 8035071 PLATE 1D
