GE8281SRG85.10A80E

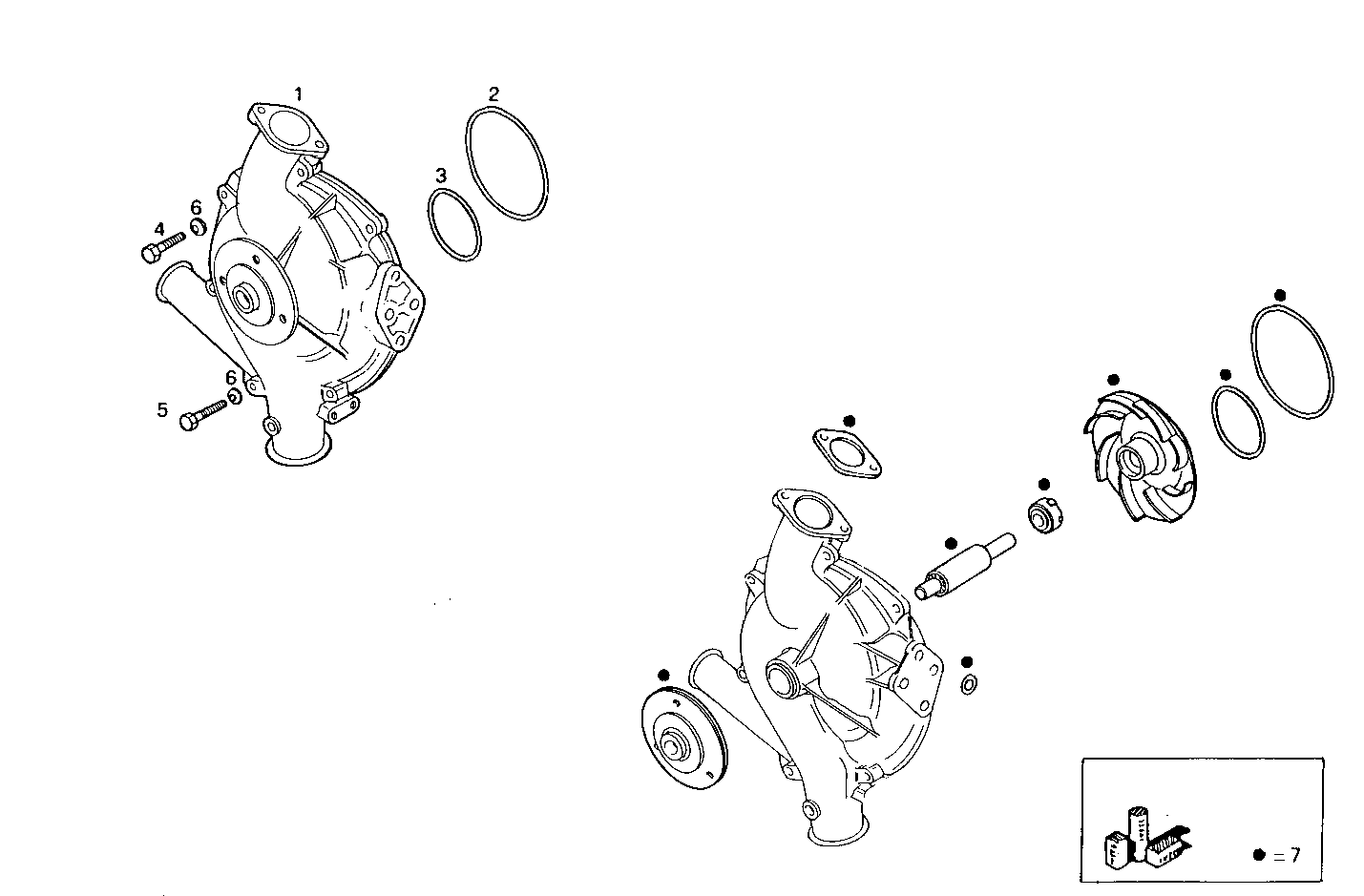

3200.037 WATER PUMP
Item | Part number | Description |
---|---|---|
1 | 500300470 | WATER PUMP ASSY |
2 | 17292580 | O-RING Ø136,1 MM SP=3,53 MM |
3 | 17283680 | O-RING Ø45,69 MM SP=2,62 MM |
4 | 11343721 | HEXAGON BOLT M10X65 MM |
5 | 15971921 | HEXAGON BOLT M10X105 MM |
6 | 17090174 | SPRING WASHER Ø10X20 MM |
7 | 1904768 | KIT-WATER PUMP |
