GE8281SRG85.10A80E

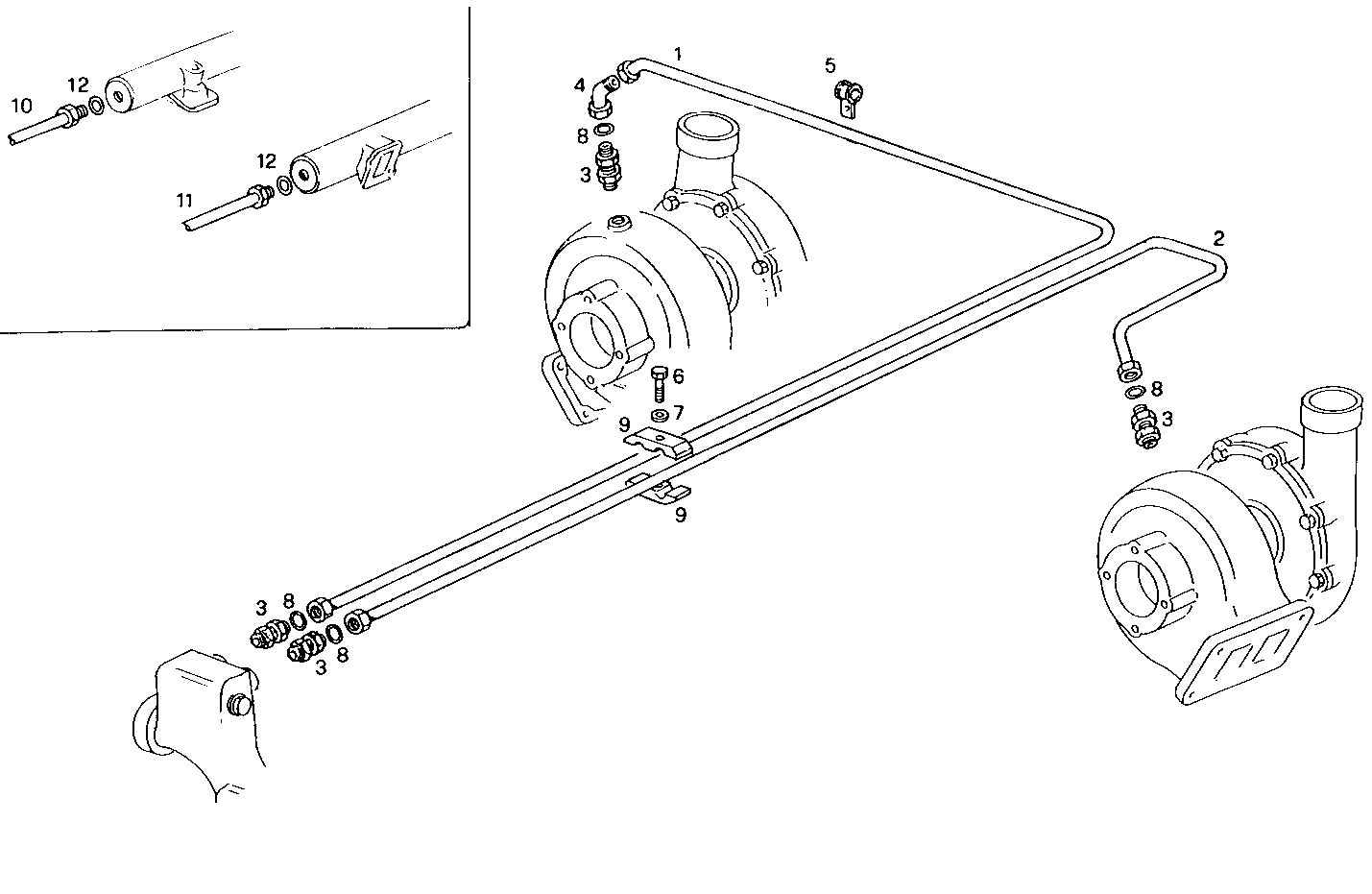

3210.191/03 WATER LINES
| Item | Part number | Description |
|---|---|---|
| 1 | 8026895 | WATER PIPE |
| 2 | 8026894 | WATER PIPE |
| 3 | 8026882 | PIPE SOCKET |
| 4 | 16526514 | ELBOW COUPLING |
| 5 | 8111710 | CLIP |
| 6 | 16605734 | HEXAGON BOLT M8X30 MM |
| 7 | 17101534 | SPRING WASHER Ø8 MM |
| 8 | 8024652 | O-RING Ø15 MM |
| 9 | 8008215 | CLAMP |
| 10 | 8026945 | WATER PIPE |
| 11 | 8026944 | WATER PIPE |
| 12 | 8024645 | O-RING Ø4 MM |
