GE8281SRG85.10A80E

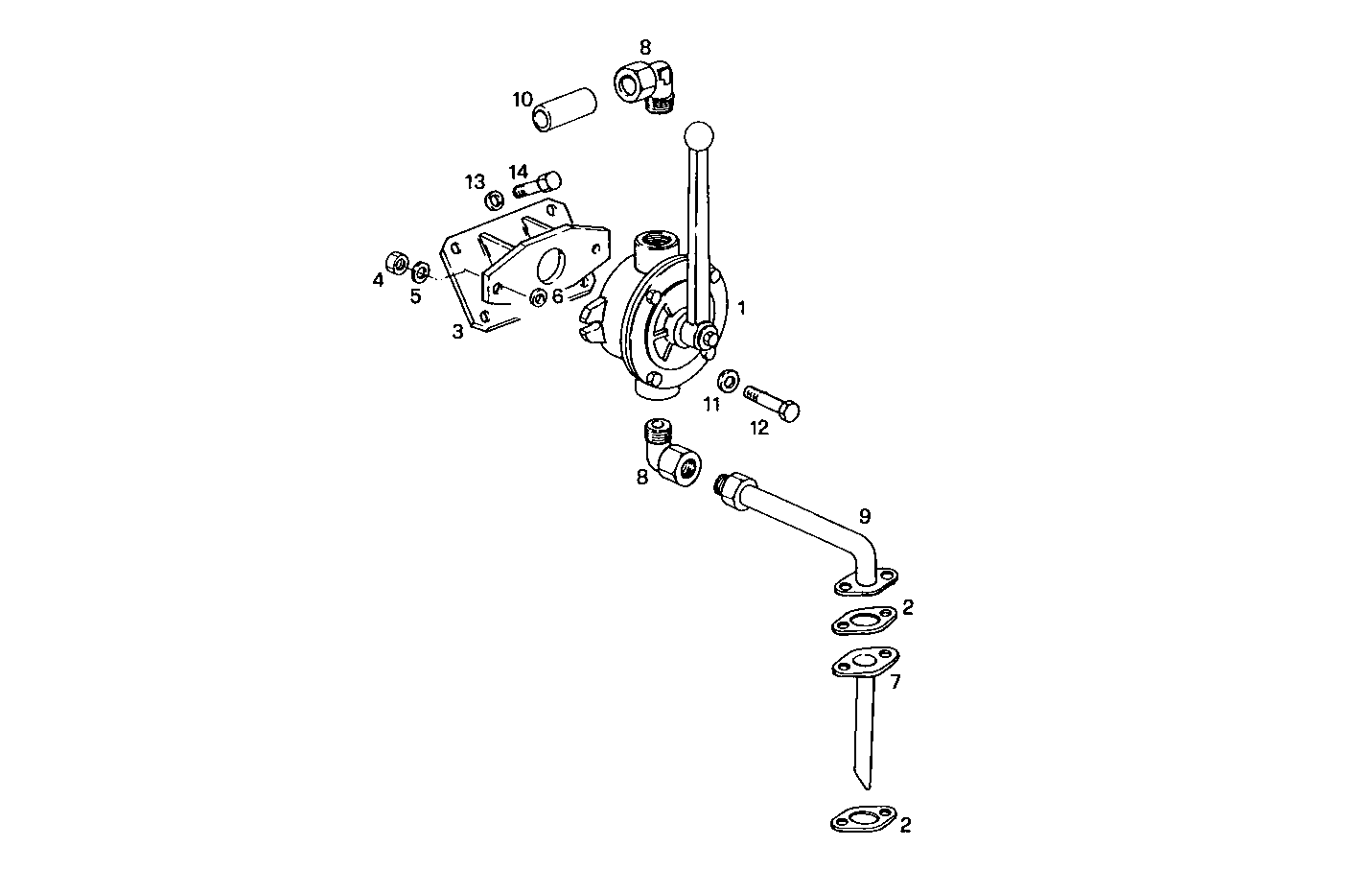

5510.037 OIL OUTLET PUMP
| Item | Part number | Description |
|---|---|---|
| 1 | 8012424 | MAR. ENG. SUCTION PUMP |
| 2 | 4863361 | GASKET |
| 3 | 8024369 | SUPPORT |
| 4 | 17037931 | HEXAGON NUT M8X1,25 |
| 5 | 17089774 | SPRING WASHER Ø8,4X22 MM SP=2,4 MM |
| 6 | 12647001 | WASHER Ø8X25 MM |
| 7 | 8105462 | OIL LINE |
| 8 | 8111456 | PIPE SOCKET |
| 9 | 8024370 | OIL LINE |
| 10 | 8104754 | OIL LINE |
| 11 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 12 | 16605734 | HEXAGON BOLT M8X30 MM |
| 13 | 17090174 | SPRING WASHER Ø10X20 MM |
| 14 | 15004021 | HEXAGON BOLT M10X1,25X25 MM |
