GE8281SRG85.10A80E

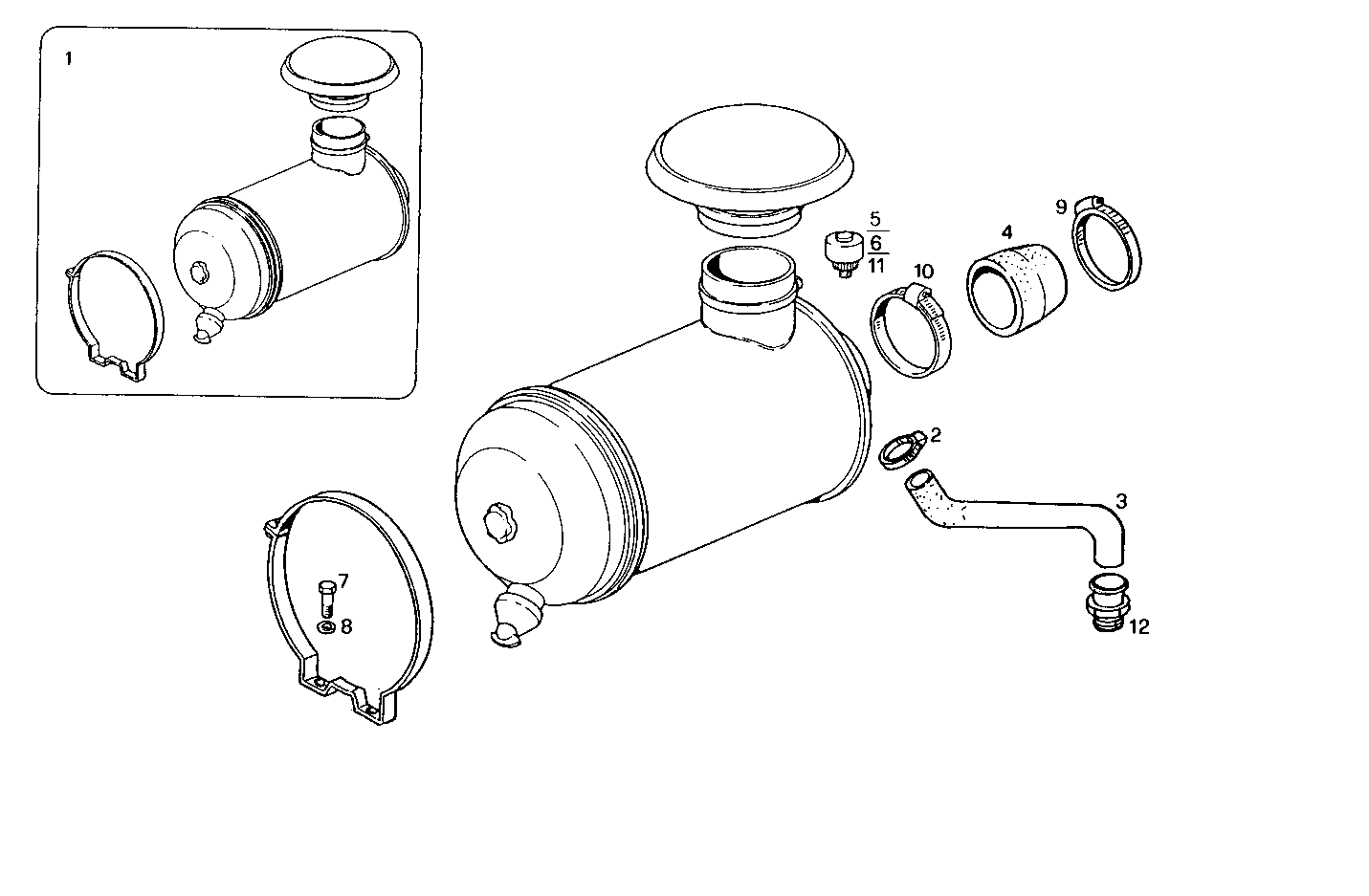

A21210057 DRY AIR CLEANER - with mechanical clogging gauge - genset
Item | Part number | Description |
---|---|---|
1 | 8025776 | AIR CLEANER |
2 | 17764592 | CLIP Ø20/32 MM |
3 | 8025782 | OIL HOSE |
4 | 8024393 | FILTER HOSE |
5 | 4936137 | CHOCKED FILTER INDIC. MECHANICAL |
6 | 8022540 | CHOCKED FILTER INDIC. MECHANICAL |
7 | 16609824 | HEXAGON BOLT M12X1,75X25 MM |
8 | 17091074 | WASHER Ø12X24X2,8 MM |
9 | 17764891 | CLIP Ø40/60 MM |
10 | 17766091 | CLIP Ø160/180 MM |
11 | 8027294 | CHOCKED FILTER INDIC. MECHANICAL |
12 | 8024723 | PIPE SOCKET |
