GE8281SRG85.10A80E

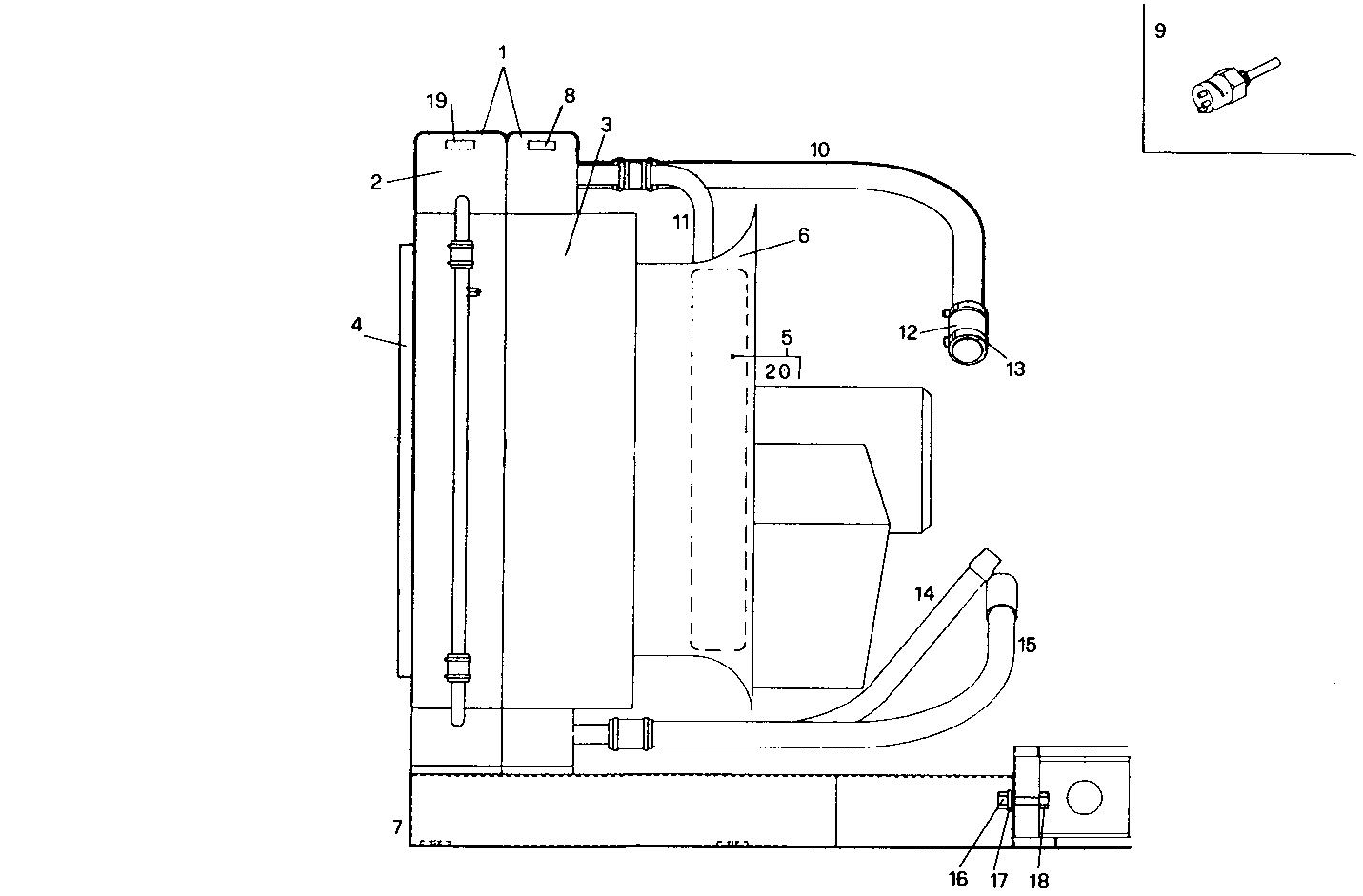

A22610003 RADIATOR 2 CIRCUITS AIR/WATER - loose
| Item | Part number | Description |
|---|---|---|
| 1 | 8026847 | WATER RADIATOR ASSY |
| 2 | 8027493 | WATER RADIATOR |
| 3 | 8027494 | WATER RADIATOR |
| 4 | 8027498 | PROTECTION |
| 5 | 8027495 | MOTOR ASSY |
| 6 | 8027497 | AIR HOOD |
| 7 | 8027492 | SUPPORT |
| 8 | 8024556 | PLUG |
| 9 | 8006054 | TRANSMITTER TBLA |
| 10 | 8027486 | WATER PIPE |
| 11 | 8027489 | WATER PIPE |
| 12 | 98421391 | RUBBER SLEEVE [UP TO 30-11-07] |
| 13 | 17765091 | CLIP Ø60/80 MM |
| 14 | 8027490 | WATER PIPE |
| 15 | 8027487 | WATER PIPE |
| 16 | 16617024 | SCREW |
| 17 | 17092774 | WASHER Ø20X38X4,6 MM |
| 18 | 17039321 | NUT M20X2,5 |
| 19 | 8024199 | PLUG |
| 20 | 8027496 | MOTOR |
