GE8281SRi26.01A955

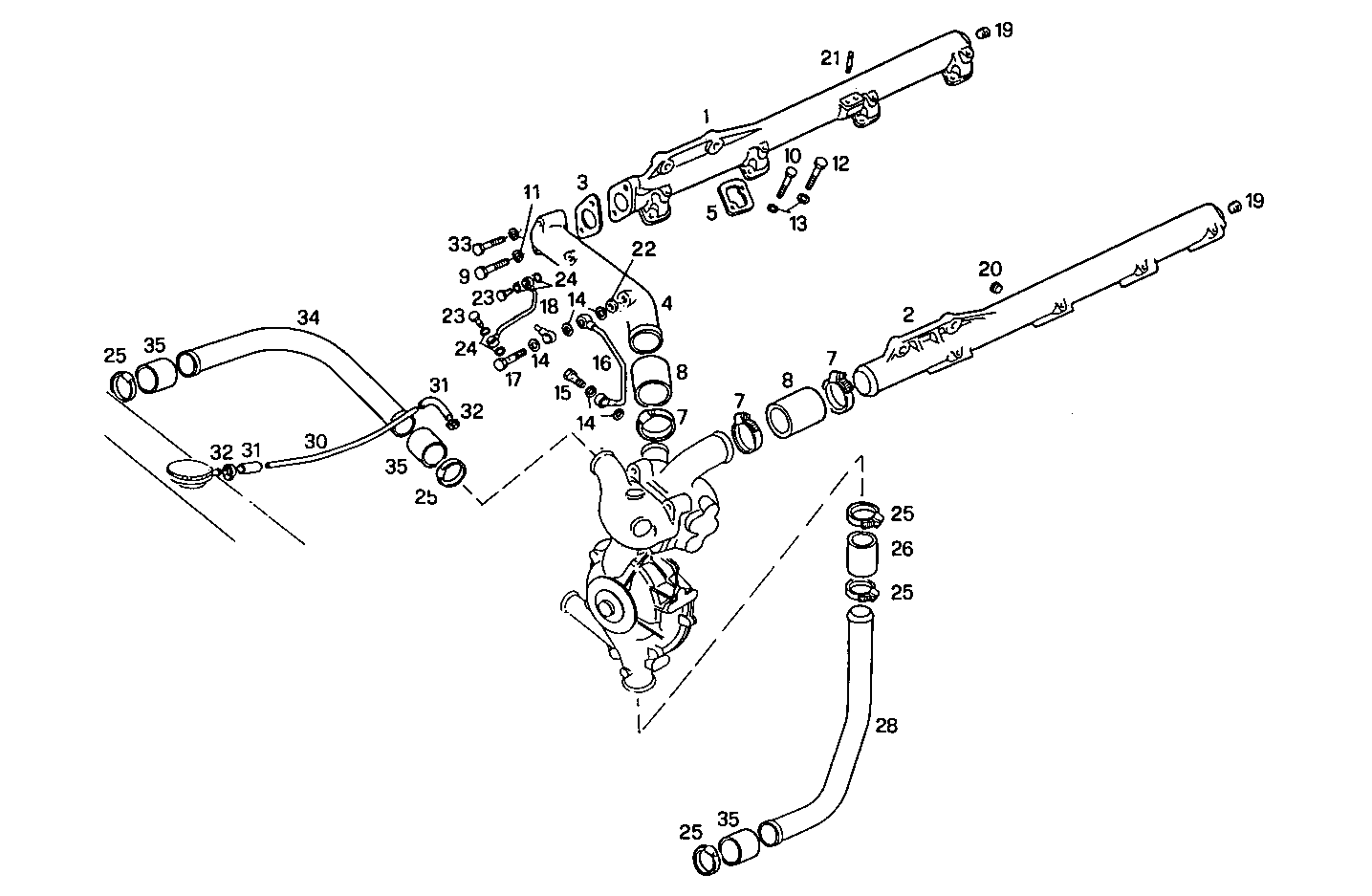

3210.068 WATER LINES
Item | Part number | Description |
---|---|---|
1 | 4760275 | WATER MANIFOLD |
2 | 4678211 | WATER MANIFOLD |
3 | 98469577 | FLAT ENGINE GASKET |
4 | 98473595 | WATER PIPE |
5 | 98418857 | FLAT ENGINE GASKET |
7 | 17764891 | CLIP Ø40/60 MM |
8 | 98420477 | WATER HOSE |
9 | 16044524 | SCREW M8X65 |
10 | 16605924 | SCREW M8X40 MM |
11 | 17089874 | WASHER Ø8X22 MM |
12 | 16606624 | HEXAGON BOLT M8X80 MM |
13 | 12646721 | WASHER Ø8X20 MM |
14 | 4858608 | SEAL GASKET dia.14x19,5x1,5 |
15 | 10184317 | SCREW CONNECTOR M14X1,5 |
16 | 4792943 | WATER PIPE |
17 | 61608319 | SCREW CONNECTOR |
18 | 8008448 | WATER PIPE |
19 | 16994950 | PLUG M24X1,5 |
20 | 14325401 | LOCK PLUG M24X1,5 |
21 | 13540921 | STUD M6X12X16 MM |
22 | 4792945 | SPACING BAR |
23 | 4618526 | SCREW CONNECTOR |
24 | 4858607 | WASHER Ø12X17 MM SP=1,5 MM |
25 | 17765092 | CLIP Ø60-80 MM |
26 | 8110485 | RUBBER SLEEVE |
28 | 8107755 | WATER PIPE |
30 | 8024202 | WATER PIPE |
31 | 4927825 | WATER HOSE |
32 | 18087991 | CLIP Ø8/16 MM |
33 | 16605824 | HEXAGON BOLT M8X35 MM |
34 | 8010171 | WATER PIPE |
35 | 8107383 | RUBBER SLEEVE Ø60 MM |
