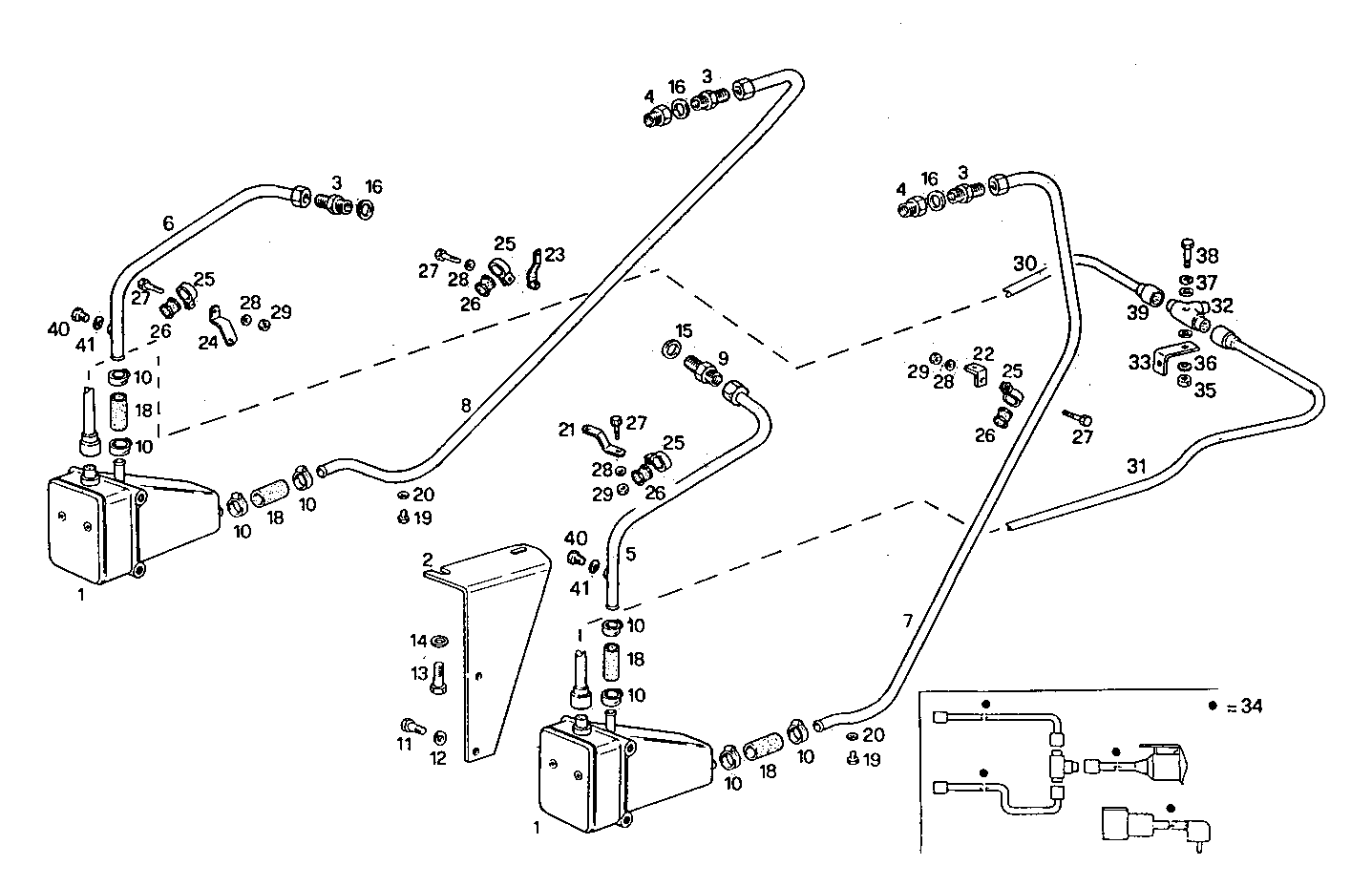

Item |
Part number |
Description |
1 |
8008375 |
HEATER 700W |
2 |
8012668 |
SUPPORT |
3 |
8011696 |
PIPE SOCKET M16X1,5/M22X1,5 |
4 |
4846400 |
PIPE SOCKET |
5 |
8012704 |
WATER PIPE |
6 |
8012705 |
WATER PIPE |
7 |
8011775 |
WATER PIPE |
8 |
8011773 |
WATER PIPE |
9 |
4741602 |
THREADED UNION LEFT |
10 |
17764592 |
CLIP Ø20/32 MM |
11 |
10902121 |
HEXAGON BOLT M6X14 MM |
12 |
17088474 |
WASHER Ø6X12 MM |
13 |
10923421 |
HEXAGON BOLT M10X1,25X30 MM |
14 |
16665604 |
WASHER Ø10X20 MM |
15 |
98429280 |
SEAL GASKET Ø20X26 MM SP=1,5 MM |
16 |
4858609 |
WASHER Ø16X22 MM SP=1,5 MM |
18 |
8109346 |
RUBBER SLEEVE |
19 |
10300911 |
PLUG M8 |
20 |
4858605 |
WASHER Ø8X12 MM |
21 |
8005677 |
RETAINER |
22 |
4929652 |
RETAINER |
23 |
8112082 |
RETAINER |
24 |
8013523 |
RETAINER |
25 |
4763804 |
FASTENING BRACKET |
26 |
4757122 |
RUBBER PAD |
27 |
16605524 |
HEXAGON BOLT M8X20 MM |
28 |
17089474 |
SPRING WASHER Ø8X16 MM SP=1,4 MM |
29 |
17037931 |
HEXAGON NUT M8X1,25 |
30 |
8112321 |
WIRE/CABLE L=1000 MM |
31 |
8112322 |
WIRE/CABLE L=2000 MM |
32 |
8111867 |
CONNECTION |
33 |
8104447 |
RETAINER |
34 |
8009376 |
WIRE/CABLE ASSY |
35 |
17152621 |
NUT M5X0,8 |
36 |
17494634 |
SPRING WASHER Ø5,1X9,2 MM |
37 |
17094714 |
WASHER Ø6,4X12 MM |
38 |
10978521 |
HEXAGON BOLT M5X35 MM |
39 |
17094504 |
WASHER Ø5,3X10 MM |
