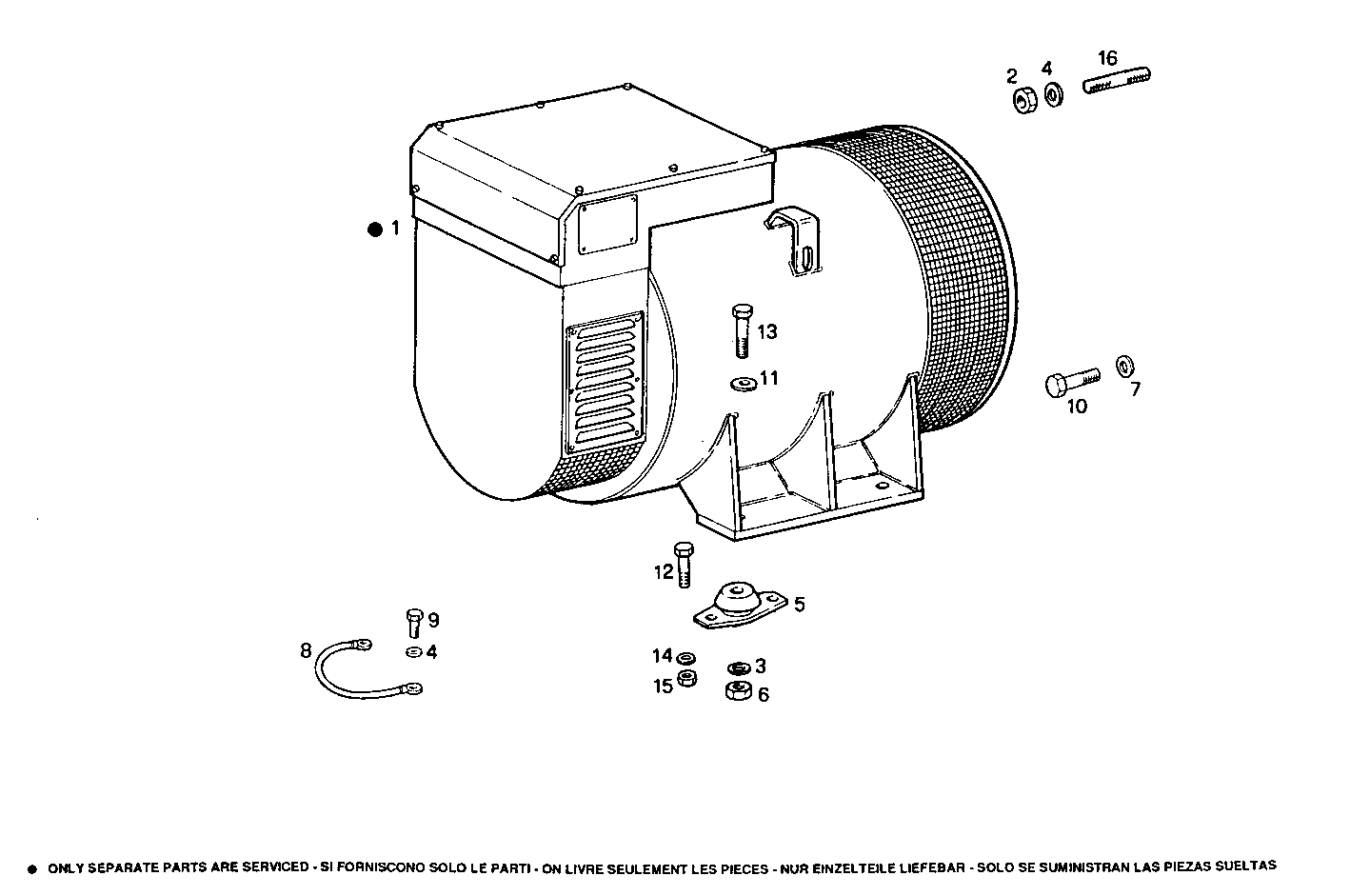

| Item |
Part number |
Description |
|
1 |
8015008 |
ELECTRIC MACHINE ECN 40 SB 4 50-60HZ |
|
2 |
17038221 |
HEXAGON NUT M10 |
|
3 |
17096204 |
WASHER Ø24 MM |
|
4 |
17090174 |
SPRING WASHER Ø10X20 MM |
|
5 |
4955094 |
RUBBER PAD |
|
6 |
17039721 |
HEXAGON NUT M24 |
|
7 |
17091074 |
WASHER Ø12X24X2,8 MM |
|
8 |
8104358 |
EARTH WIRE |
|
9 |
15970521 |
HEXAGON BOLT M10X20 MM |
|
10 |
15540421 |
SCREW M12X1,25X30 |
|
11 |
8016186 |
WASHER |
|
12 |
16614724 |
SCREW M16X45 |
|
13 |
16620224 |
SCREW M24X90 |
|
14 |
17092374 |
SPRING WASHER Ø16X34X3,6 MM |
|
15 |
17038921 |
NUT M16X2 |
|
16 |
13454130 |
STUD |
|
22 |
8090799 |
EL.MACHINE DIODE MECC-ALTE |
|
23 |
8091776 |
EL.MACHINE VOLTAGE REGUL. MECC-ALTE |
