GE8281SRi26.01A955

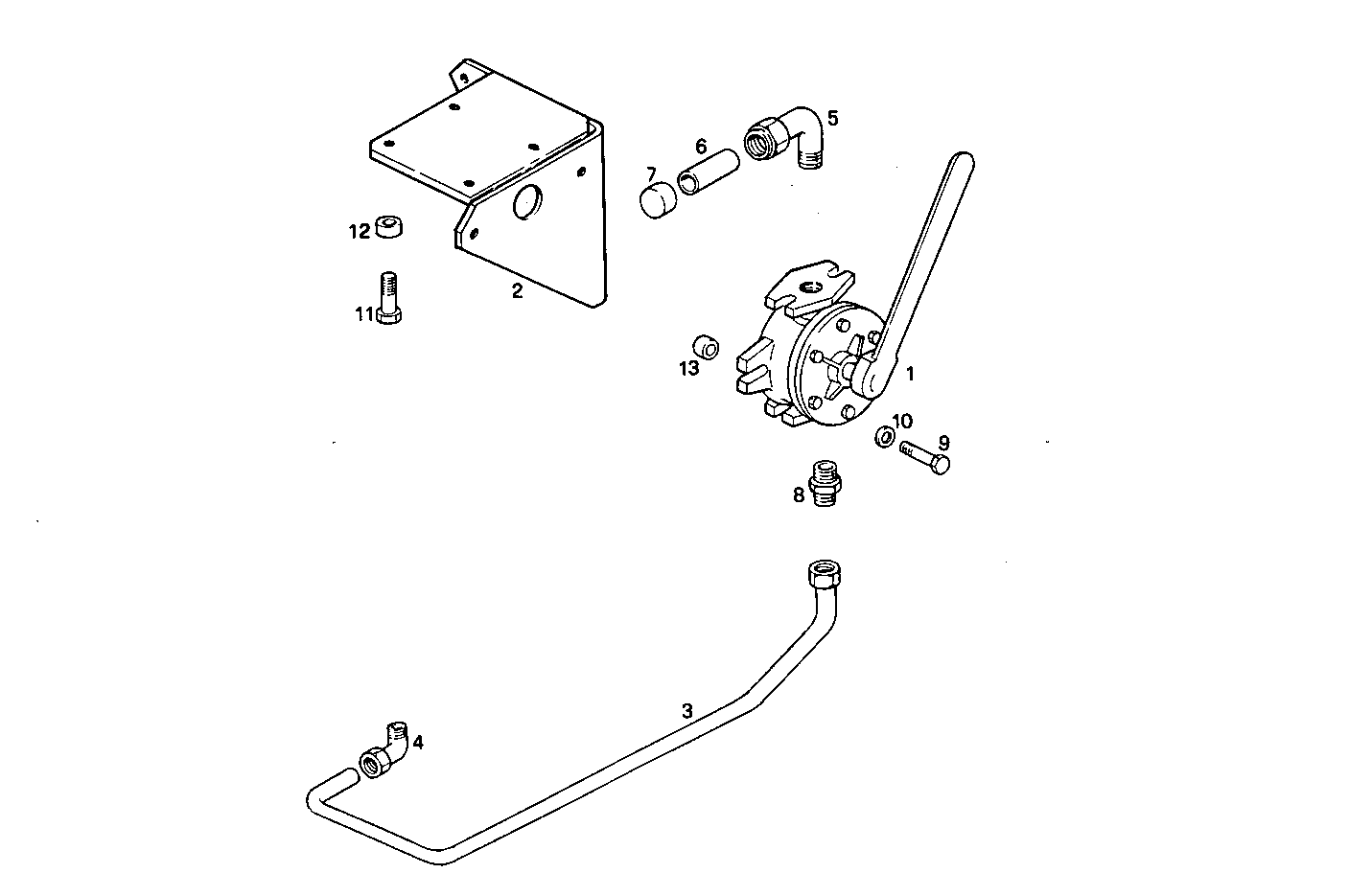

A49010032 OIL DRAIN PUMP
Item | Part number | Description |
---|---|---|
1 | 8012424 | MAR. ENG. SUCTION PUMP |
2 | 8008481 | RETAINER |
3 | 8012666 | OIL LINE [from 03-92] |
4 | 8111454 | PIPE SOCKET M22X1,5 |
5 | 8111456 | PIPE SOCKET |
6 | 8104754 | OIL LINE |
7 | 93013662 | PLUG |
8 | 8005782 | PIPE SOCKET |
9 | 16605734 | HEXAGON BOLT M8X30 MM |
10 | 17089774 | SPRING WASHER Ø8,4X22 MM SP=2,4 MM |
11 | 16606924 | SCREW M8X110 |
12 | 17816014 | SPACING BAR Ø8,5X18X5 MM |
13 | 4932695 | WASHER |
