GE8281SRi26.01A955

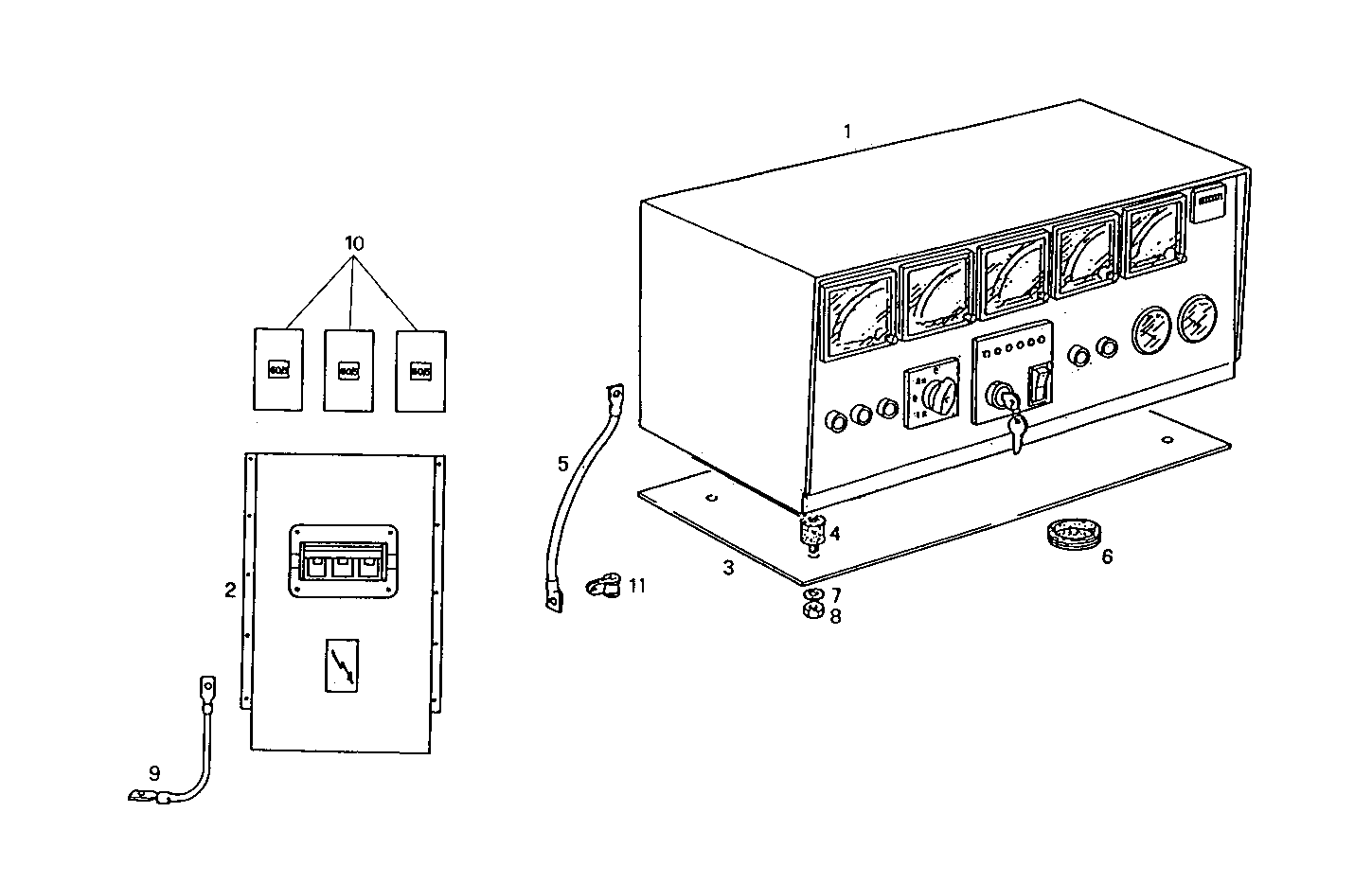

A60210071 MANUAL CONTROL BOARD FOR ELECT. MACHINE - STAMFORD [D 03-1997] [from03-1997]

Iveco/FPT MANUAL CONTROL BOARD FOR ELECT. MACHINE

Item Part number Description
1 8023900 CONTROL BOARD ASSY 220V 60HZ [from 03-97]
2 8023902 SWITCH 800A [from 03-97]
3 8019259 COVER
4 8104155 DOWEL
5 8006993 EARTH WIRE
6 8113214 INSULATING RING
7 17088474 WASHER Ø6X12 MM
8 17037821 HEXAGON NUT M6X1
9 8104707 WIRE/CABLE
10 8093498 AMMETER TRANSFORMATOR REVALCO TAR 5 - 800/5A
11 17314890 CLIP
