GE8281SRi26.02R970

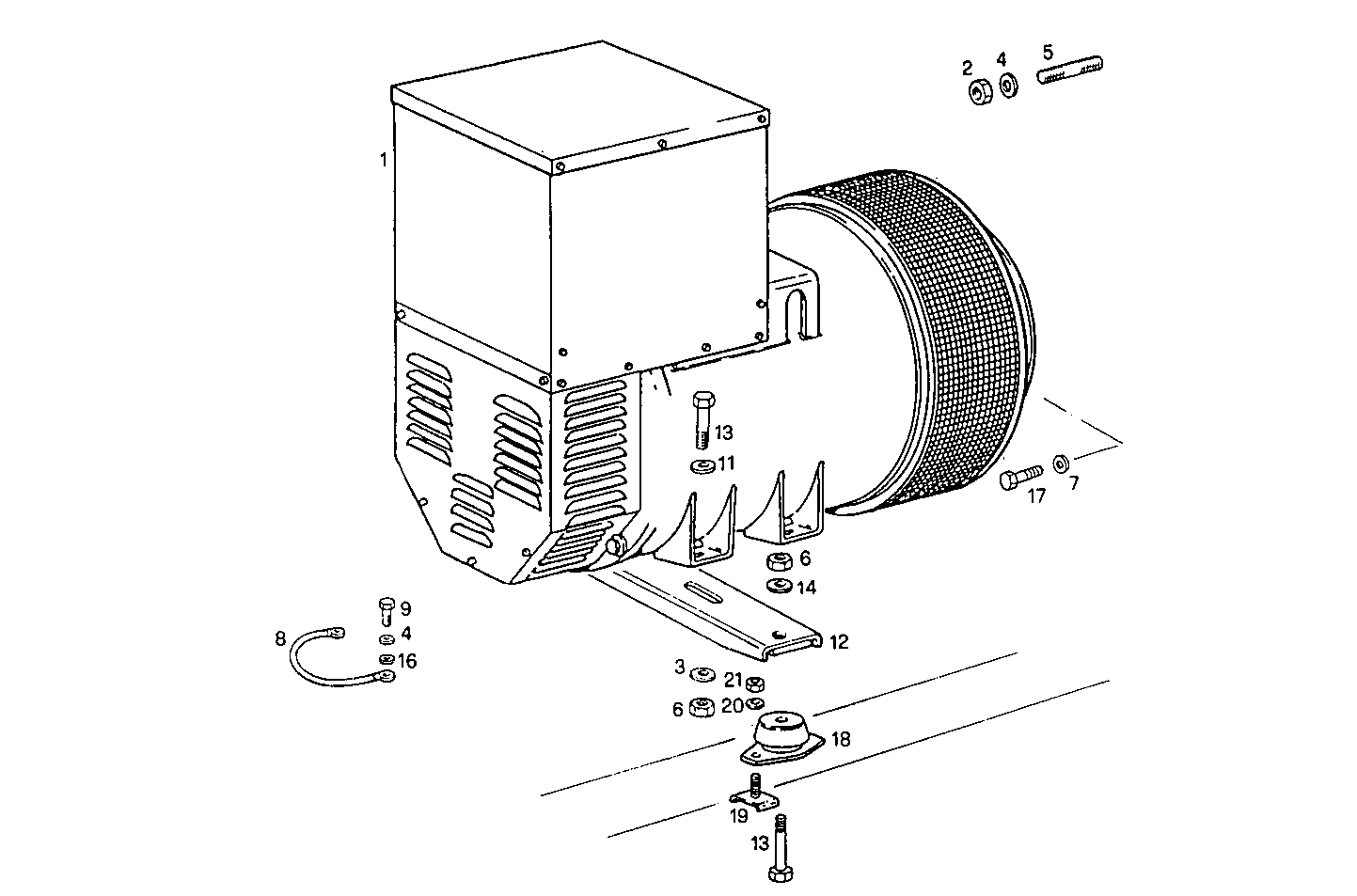

A37410060 SINGLE BEARING ELECTRIC MACHINE - MECC-ALTE

Iveco/FPT SINGLE BEARING ELECTRIC MACHINE

Item Part number Description
1 8028084 ELECTRIC MACHINE ECO 40 1S 50-60HZ
2 17038221 HEXAGON NUT M10
3 17096204 WASHER Ø24 MM
4 17090174 SPRING WASHER Ø10X20 MM
5 17368224 STUD M10X40 MM
6 17039721 HEXAGON NUT M24
7 17091174 SPRING WASHER Ø12X24 MM
8 8023916 EARTH WIRE
9 15970521 HEXAGON BOLT M10X20 MM
11 8016962 WASHER
12 8016859 SUPPORT
13 16620224 SCREW M24X90
14 17093174 WASHER Ø24X46X5,4 MM
16 17095104 WASHER Ø10X21X2 MM
17 15540431 HEXAGON BOLT M12X1,25X30 MM
18 4955094 RUBBER PAD
19 8015168 SCREW
20 17091974 SPRING WASHER Ø14X32 MM SP=3,4 MM
21 17038721 NUT M14X2 [from ...]
