GE8281SRi26.02R970

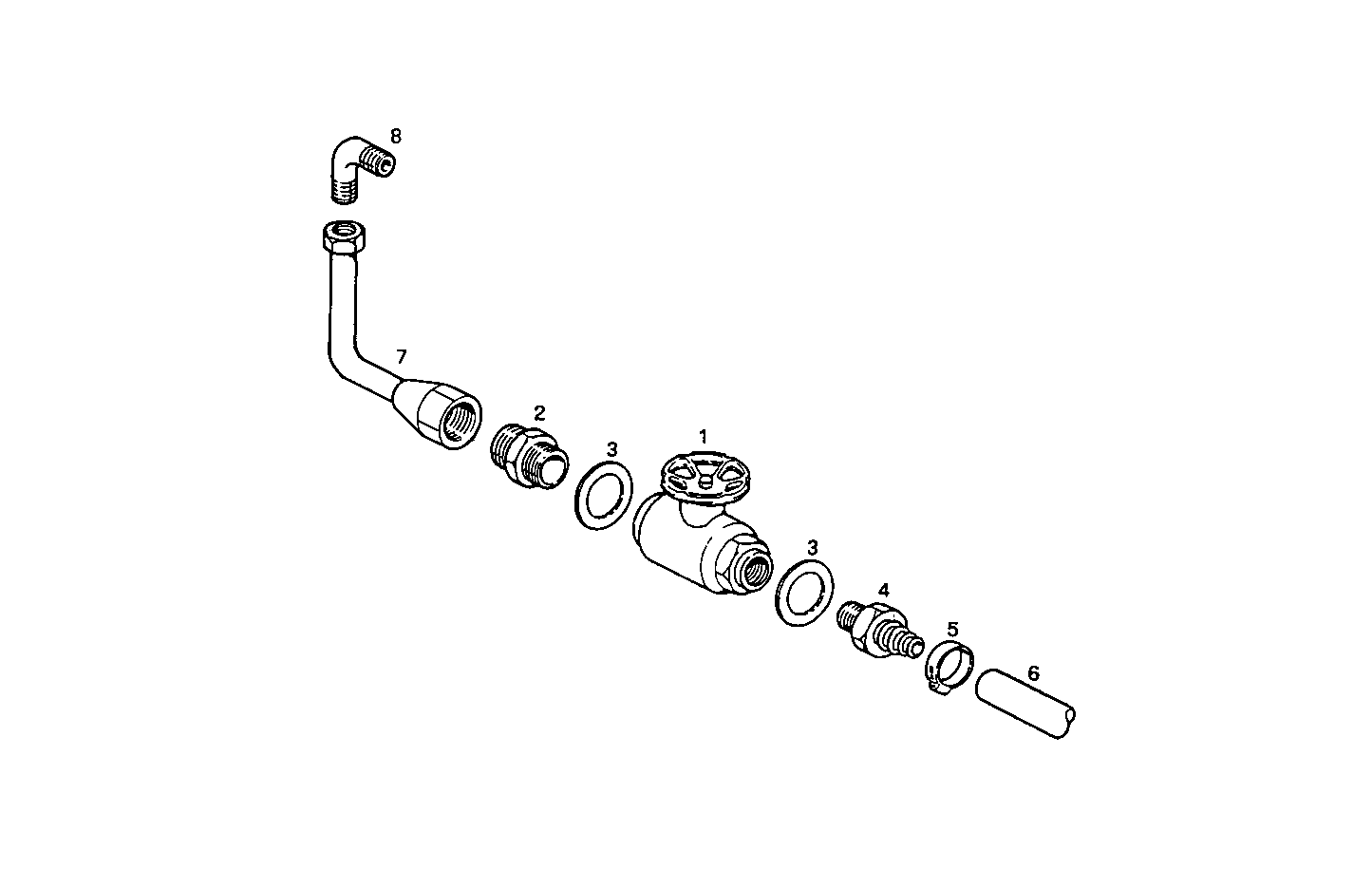

A49020006 DRAIN COCK
Item | Part number | Description |
---|---|---|
1 | 4930837 | RETAINER COCK |
2 | 8017190 | PIPE SOCKET |
3 | 11271460 | GASKET Ø21X26X1,5 MM |
4 | 4930839 | PIPE SOCKET |
5 | 17764592 | CLIP Ø20/32 MM |
6 | 4931236 | OIL HOSE Ø24X18 - L=680 MM |
7 | 8017191 | OIL LINE |
8 | 4928527 | PIPE SOCKET |
