GE8281SRi27.00A71M

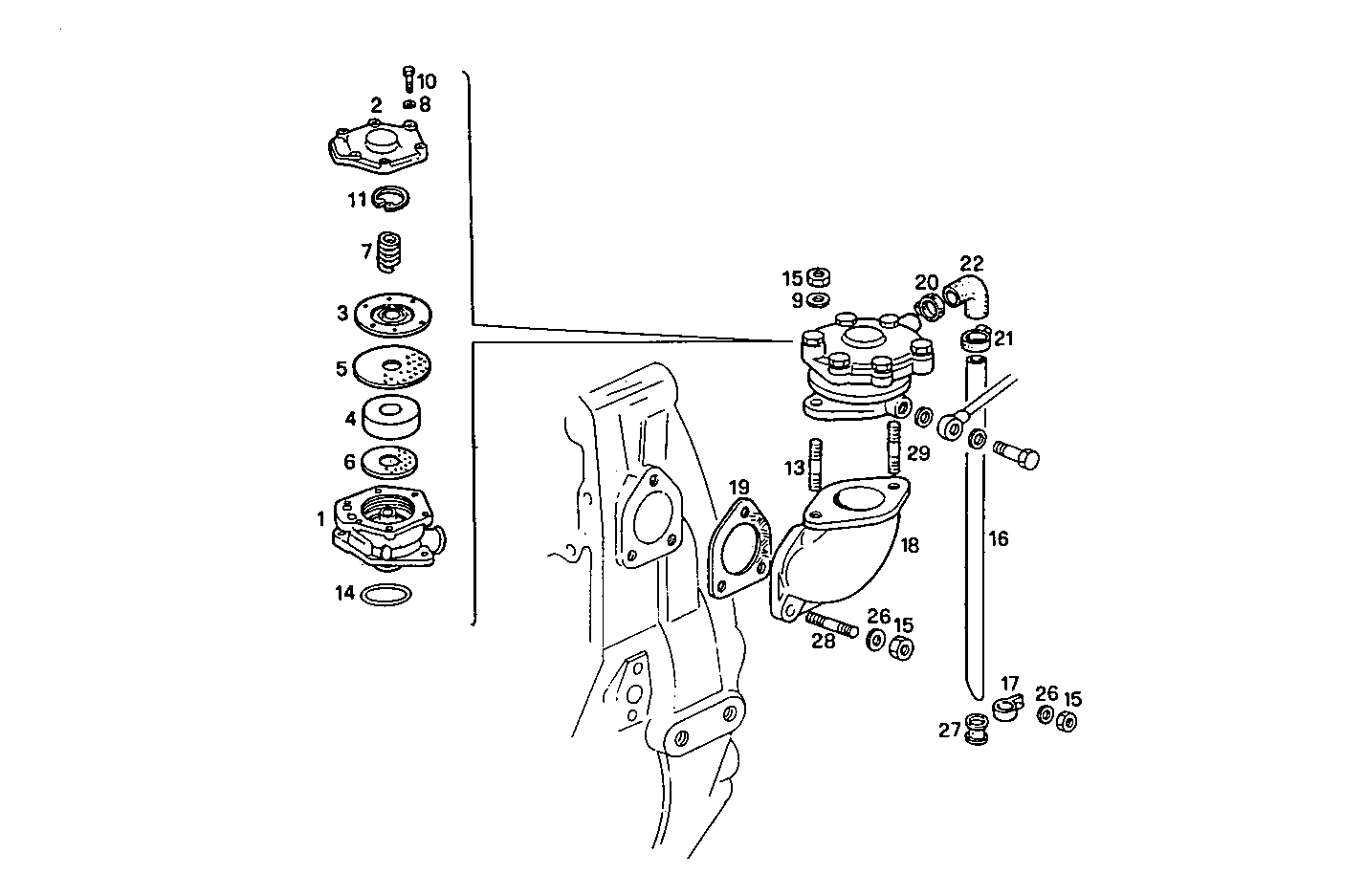

0450.053 ENGINE BREATHERS
| Item | Part number | Description |
|---|---|---|
| 1 | 4771073 | BEARING HOUSING |
| 2 | 4771075 | COVER |
| 3 | 61315069 | DIAPHRAGM |
| 4 | 4771079 | FILTER |
| 5 | 4771080 | DISC |
| 6 | 4771081 | DISC |
| 7 | 4812557 | SPRING |
| 8 | 17094701 | WASHER Ø6X12 MM |
| 9 | 10519601 | WASHER Ø8X17 MM |
| 10 | 16603924 | HEXAGON BOLT M6X30 MM |
| 11 | 16874976 | CIRCLIP Ø90,5 MM |
| 12 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 13 | 13516921 | STUD M8X12X22 MM |
| 14 | 17289681 | O-RING Ø44 MM SP=3,53 MM |
| 15 | 17037931 | HEXAGON NUT M8X1,25 |
| 16 | 98487759 | BREATHER PIPE |
| 17 | 4760226 | FASTENING BRACKET |
| 18 | 4807809 | SUPPORT |
| 19 | 4863490 | FLAT ENGINE GASKET |
| 20 | 17764692 | CLIP Ø25/40 MM |
| 21 | 17764592 | CLIP Ø20/32 MM |
| 22 | 4865232 | RUBBER SLEEVE |
| 26 | 17094914 | WASHER 8x16 |
| 27 | 4747140 | RUBBER PAD |
| 28 | 12354521 | STUD M8X16X22 |
| 29 | 16729424 | STUD M8X1,25X25 |
