GE8281SRi27.00A955

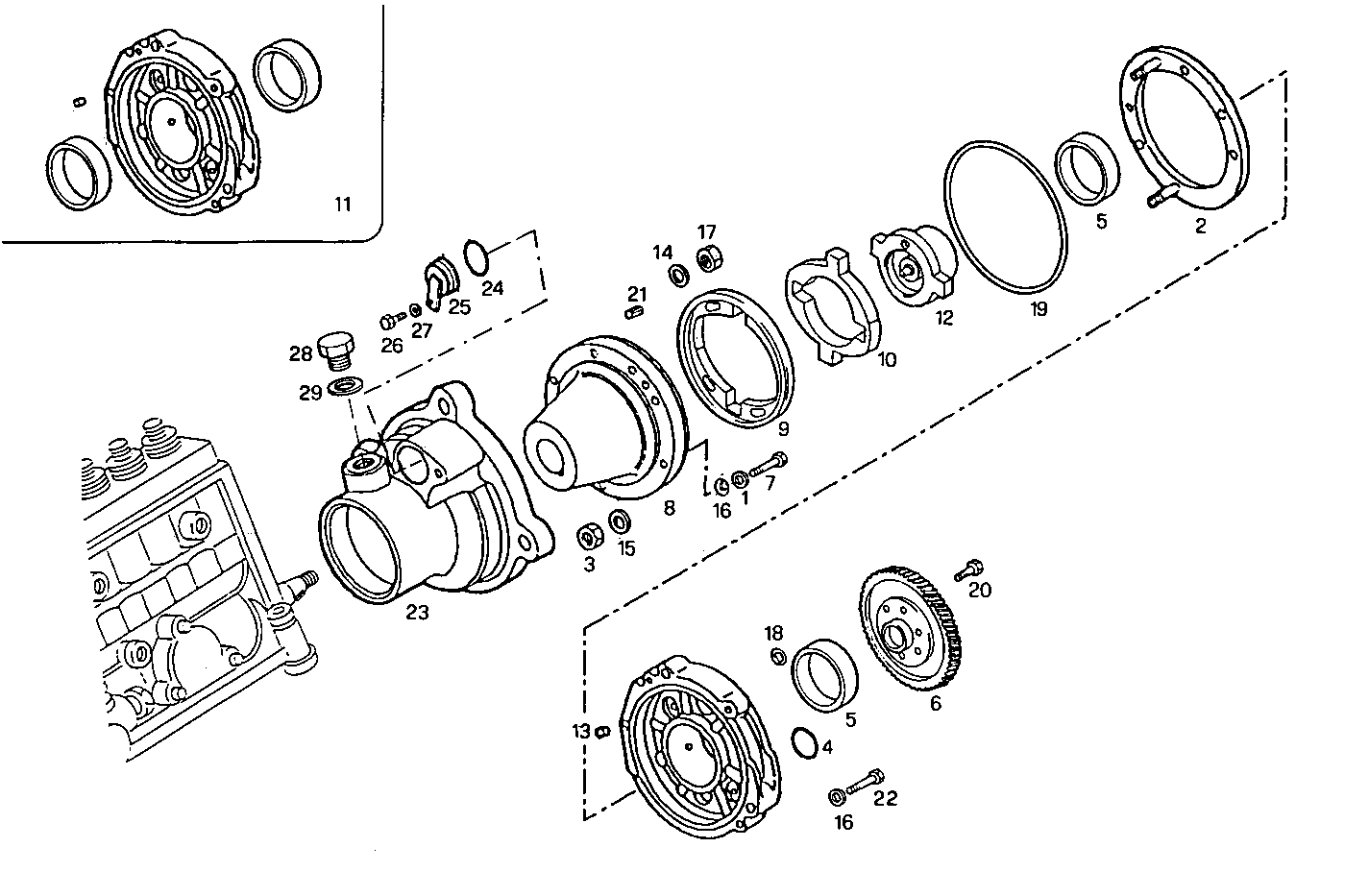

1410.064 INJECTION PUMP DRIVE

Iveco/FPT INJECTION PUMP DRIVE

Item Part number Description
1 17094914 WASHER 8x16
2 4836618 RING
3 17037931 HEXAGON NUT M8X1,25
4 17289281 O-RING Ø34,5 MM SP=3,53 MM
5 4686615 BUSH
6 4859822 INJ.PUMP DRIV.GEA
7 16605734 HEXAGON BOLT M8X30 MM
8 98424120 INJECT.PUMP SLEEVE
9 4797214 FLANGE
10 4797215 FLANGE
11 98424000 SUPPORT ASSY
12 4809614 INJECT.PUMP SPIND
13 10269150 LOCK PLUG M6X1
14 17096004 WASHER Ø20X37 MM
15 17089574 WASHER Ø8X16 MM
16 17089874 WASHER Ø8X22 MM
17 16980931 HEXAGON NUT M20X1,5
18 14456981 O-RING Ø10,77 MM SP=2,62 [up to ...]
19 14468081 O-RING SP=3,53 MM
20 14348934 HEXAGON BOLT M10X1,25X25 MM
21 17257870 DOWEL PIN Ø6 MM
22 16605424 SCREW M8X16 MM (8.8)
23 99436321 HOUSING
24 14463881 O-RING Ø3,53X34,52 MM
25 4718740 PLUG
26 16043324 HEXAGON BOLT M8X18 MM
27 17094901 WASHER Ø8,4 MM
28 8007695 PLUG M10X1
29 98429280 SEAL GASKET Ø20X26 MM SP=1,5 MM
