GE8281SRi27.00A955

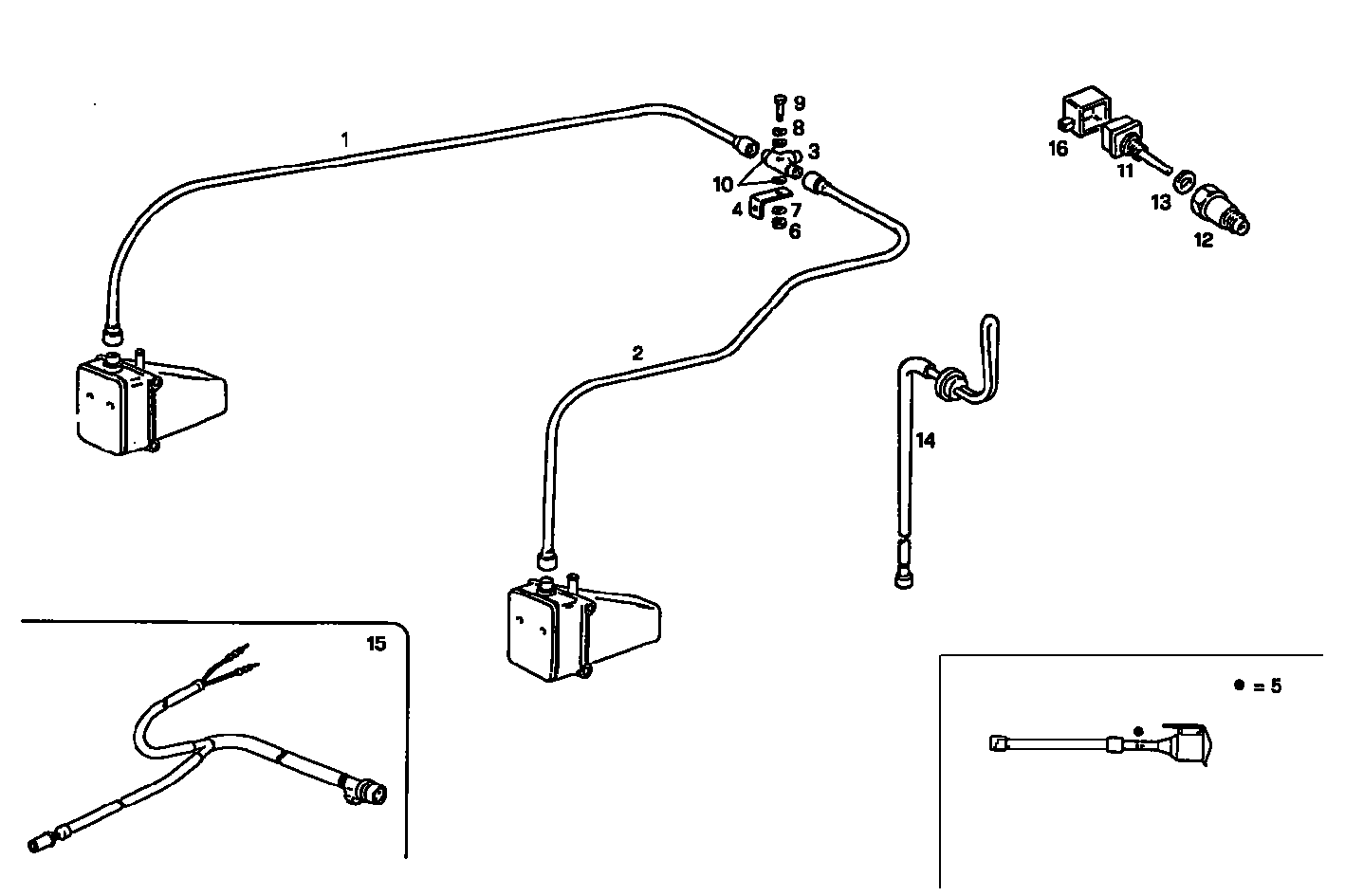

A20040058 WATER PREHEATER DEVICE - 220V - 2x 750 W
Item | Part number | Description |
---|---|---|
1 | 8112321 | WIRE/CABLE L=1000 MM |
2 | 8112322 | WIRE/CABLE L=2000 MM |
3 | 8111867 | CONNECTION |
4 | 8104447 | RETAINER |
5 | 8009376 | WIRE/CABLE ASSY |
6 | 17152621 | NUT M5X0,8 |
7 | 17494634 | SPRING WASHER Ø5,1X9,2 MM |
8 | 17094714 | WASHER Ø6,4X12 MM |
9 | 10978521 | HEXAGON BOLT M5X35 MM |
10 | 17094504 | WASHER Ø5,3X10 MM |
11 | 8017120 | THERMOSTAT [from 10-93] |
12 | 8017119 | SPACING BAR [from 10-93] |
13 | 4858610 | WASHER Ø18X24 MM SP=1,5 MM |
14 | 8023335 | RESISTOR |
15 | 8023372 | ENGINE HARNESS |
16 | 8021565 | CAP |
