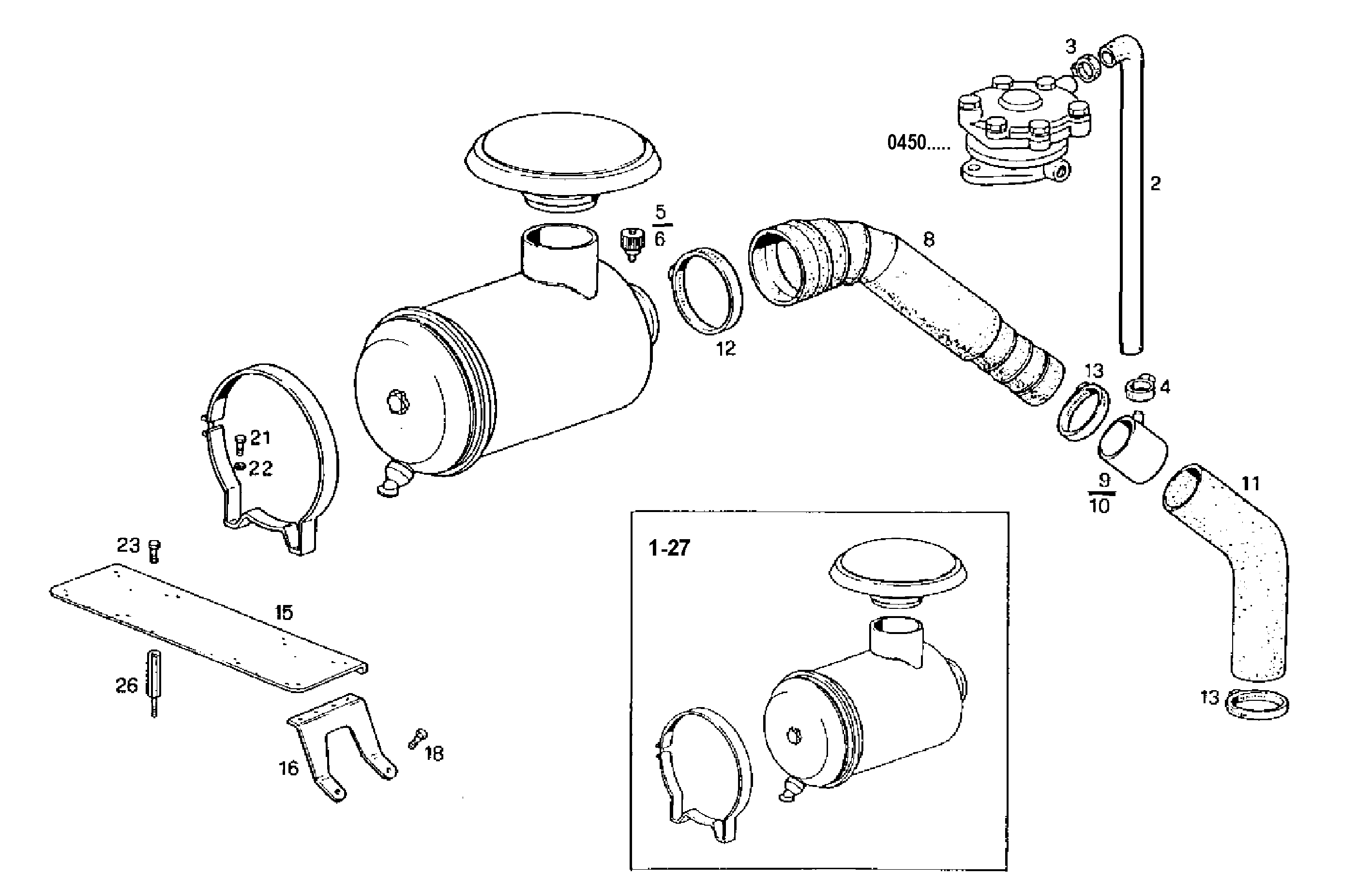

| Item |
Part number |
Description |
|
1 |
8016975 |
AIR CLEANER ASSY |
|
2 |
8020014 |
RUBBER SLEEVE |
|
3 |
17764592 |
CLIP Ø20/32 MM |
|
4 |
17764691 |
CLIP Ø25/40 MM |
|
5 |
4936137 |
CHOCKED FILTER INDIC. MECHANICAL |
|
6 |
8022540 |
CHOCKED FILTER INDIC. MECHANICAL |
|
8 |
8018132 |
FILTER HOSE |
|
9 |
8109322 |
AIR PIPE/DUCT RIGHT |
|
10 |
8019586 |
AIR PIPE/DUCT LEFT |
|
11 |
8020230 |
FILTER HOSE |
|
12 |
17765991 |
CLIP |
|
13 |
17765491 |
CLIP Ø70/90 MM |
|
15 |
8018133 |
SUPPORT |
|
16 |
8020005 |
RETAINER |
|
18 |
16606324 |
HEXAGON BOLT M8X60 MM |
|
21 |
16607624 |
SCREW M10X25 |
|
22 |
17090474 |
SPRING WASHER Ø10X27 MM SP=2,5 |
|
23 |
16605624 |
HEXAGON BOLT M8X25 MM (8.8) |
|
26 |
8018134 |
SPACING BAR |
|
27 |
8034705 |
AIR CLEANER ASSY |
