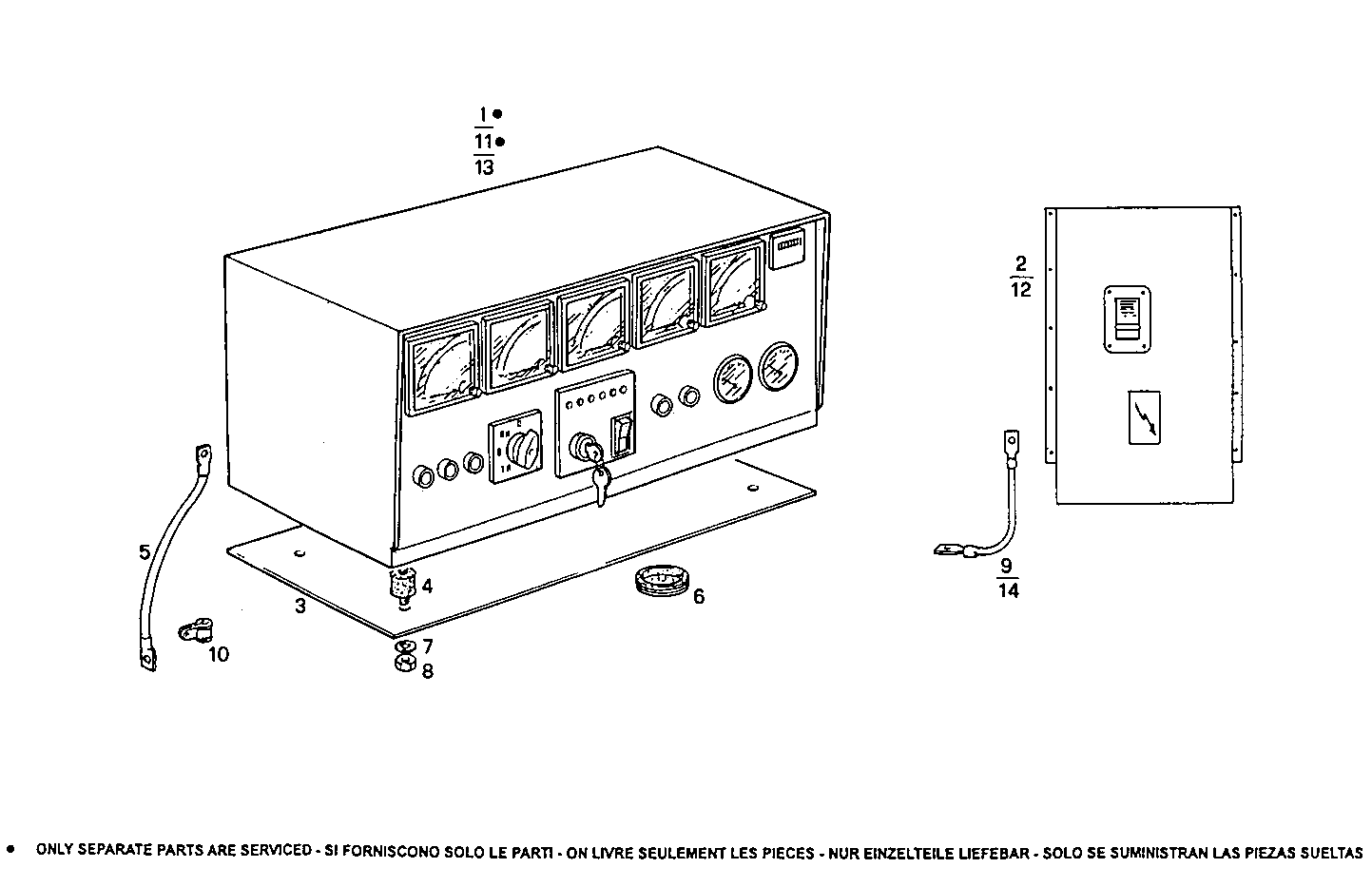

A60310008 MANUAL CONTROL BOARD FOR ELECT. MACHINE - STAMFORD

Iveco/FPT MANUAL CONTROL BOARD FOR ELECT. MACHINE

Item Part number Description
1 8019062 CONTROL BOARD ASSY 220V 50-60Hz [up to 03-96]
2 8016314 SWITCH 800A
3 8019275 COVER
4 8104155 DOWEL
5 8006993 EARTH WIRE
6 8113214 INSULATING RING
7 17088474 WASHER Ø6X12 MM
8 17037821 HEXAGON NUT M6X1
9 8104358 EARTH WIRE
10 17314890 CLIP
11 8022357 CONTROL BOARD ASSY 220V 50-60Hz [from 03-96]
12 8023920 SWITCH 800A [from 03-97]
13 8023919 CONTROL BOARD ASSY 380V 50-60HZ [from 03-97]
14 8104707 WIRE/CABLE
