GE8281SRi27.00R970

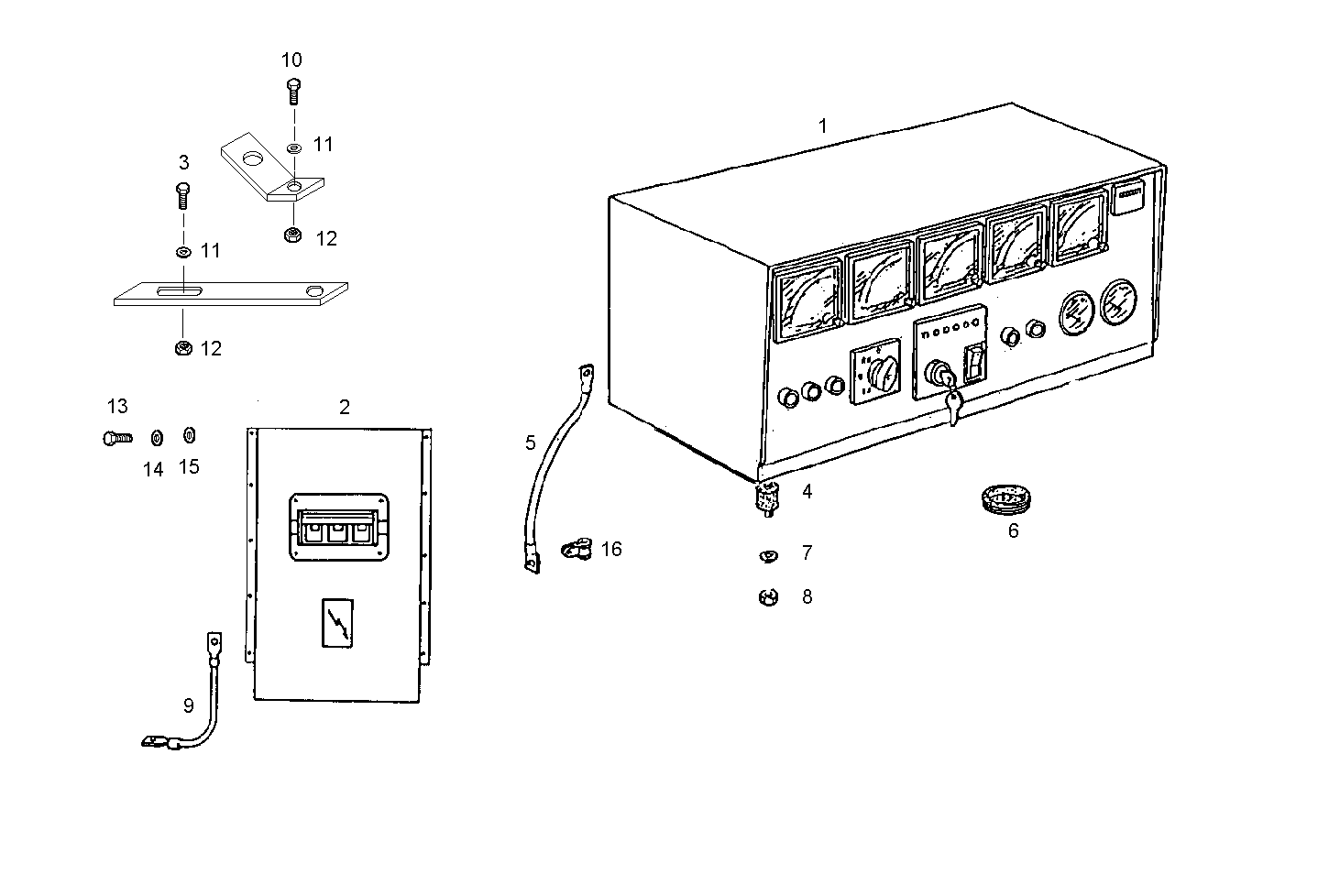

A60340020 MANUAL CONTROL BOARD FOR ELECT. MACHINE
| Item | Part number | Description |
|---|---|---|
| 1 | 8023919 | CONTROL BOARD ASSY 380V 50-60HZ [from 03-97] |
| 2 | 8023914 | SWITCH 800A |
| 3 | 16610124 | HEXAGON BOLT M12X40 MM |
| 4 | 8104155 | DOWEL |
| 5 | 8006993 | EARTH WIRE |
| 6 | 8113214 | INSULATING RING |
| 7 | 17088474 | WASHER Ø6X12 MM |
| 8 | 17037821 | HEXAGON NUT M6X1 |
| 9 | 8110852 | EARTH WIRE |
| 10 | 16609825 | HEXAGON BOLT M12X1,75X25 |
| 11 | 17095304 | WASHER Ø12X24 MM |
| 12 | 17153131 | NUT |
| 13 | 16603734 | HEXAGON BOLT M6X20 MM |
| 14 | 17800374 | SPRING WASHER Ø6X12 MM |
| 15 | 17094724 | WASHER Ø6X12 MM |
| 16 | 10441290 | PIPE CLIP Ø10 MM |
