GE8281SRM44.10A60E

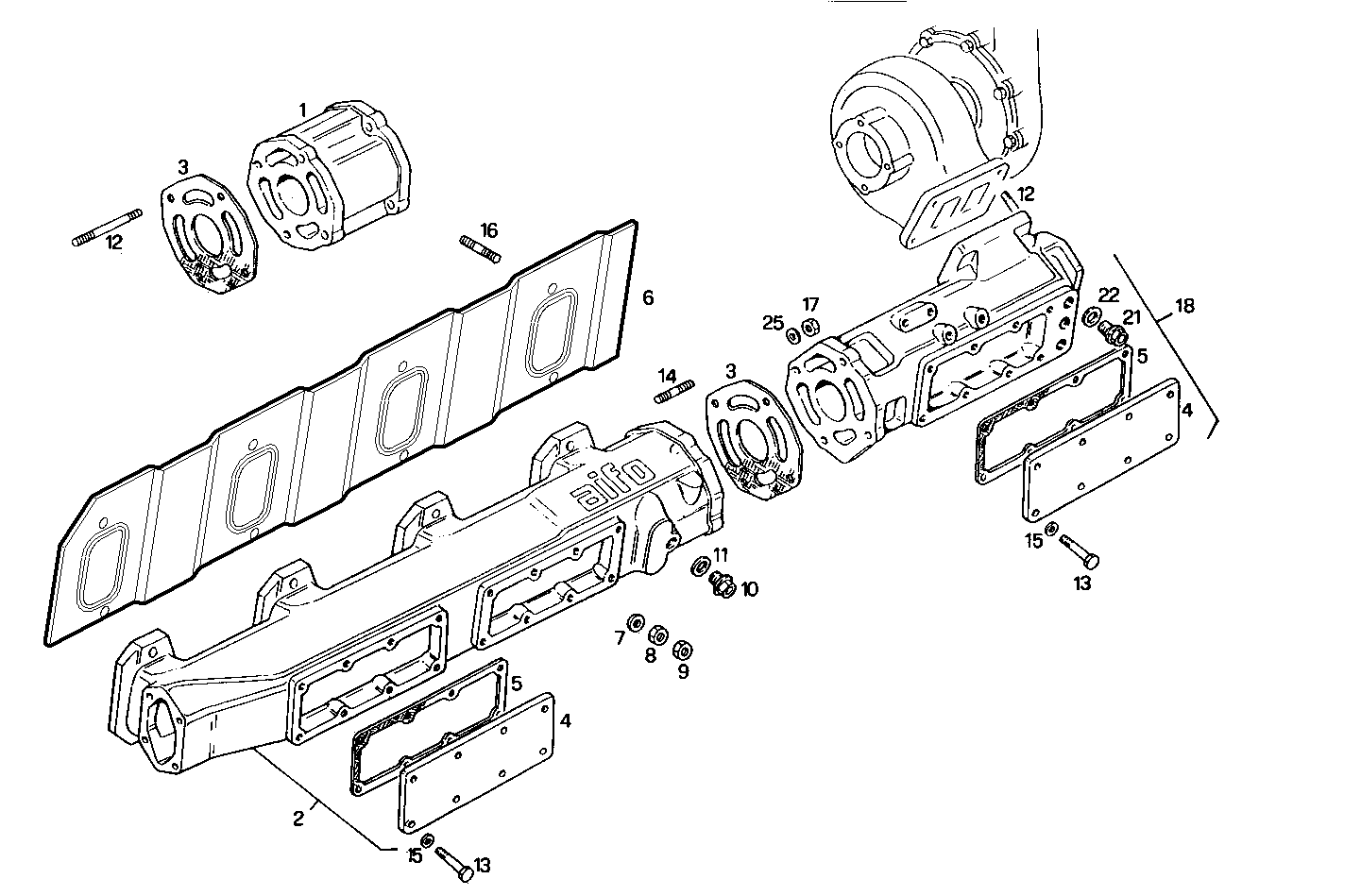

0760.020 EXHAUST MANIFOLD

Iveco/FPT EXHAUST MANIFOLD

Item Part number Description
1 8105900 SPACING BAR
2 8105559 COOLED EXHAUST MANIF. ASSY
3 8009455 GASKET
4 8029817 COVER
5 8026163 GASKET
6 4836361 EXH. MANIFOLD GKT
7 16665604 WASHER Ø10X20 MM
8 17038121 HEXAGON NUT M10
9 16979731 NUT M10X1,25
10 16992211 THREADED PLUG M12X1,5
11 4858607 WASHER Ø12X17 MM SP=1,5 MM
12 13449830 STUD M10X1,25X35 MM
13 16605524 HEXAGON BOLT M8X20 MM
14 13552630 STUD M12X24X40
15 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
17 17038621 NUT M12
18 8110665 SPACING BAR
21 16992540 PLUG M18X1,5
22 4858610 WASHER Ø18X24 MM SP=1,5 MM
25 16665704 WASHER Ø12X24X2,5 MM
