GE8281SRM44.10A60E

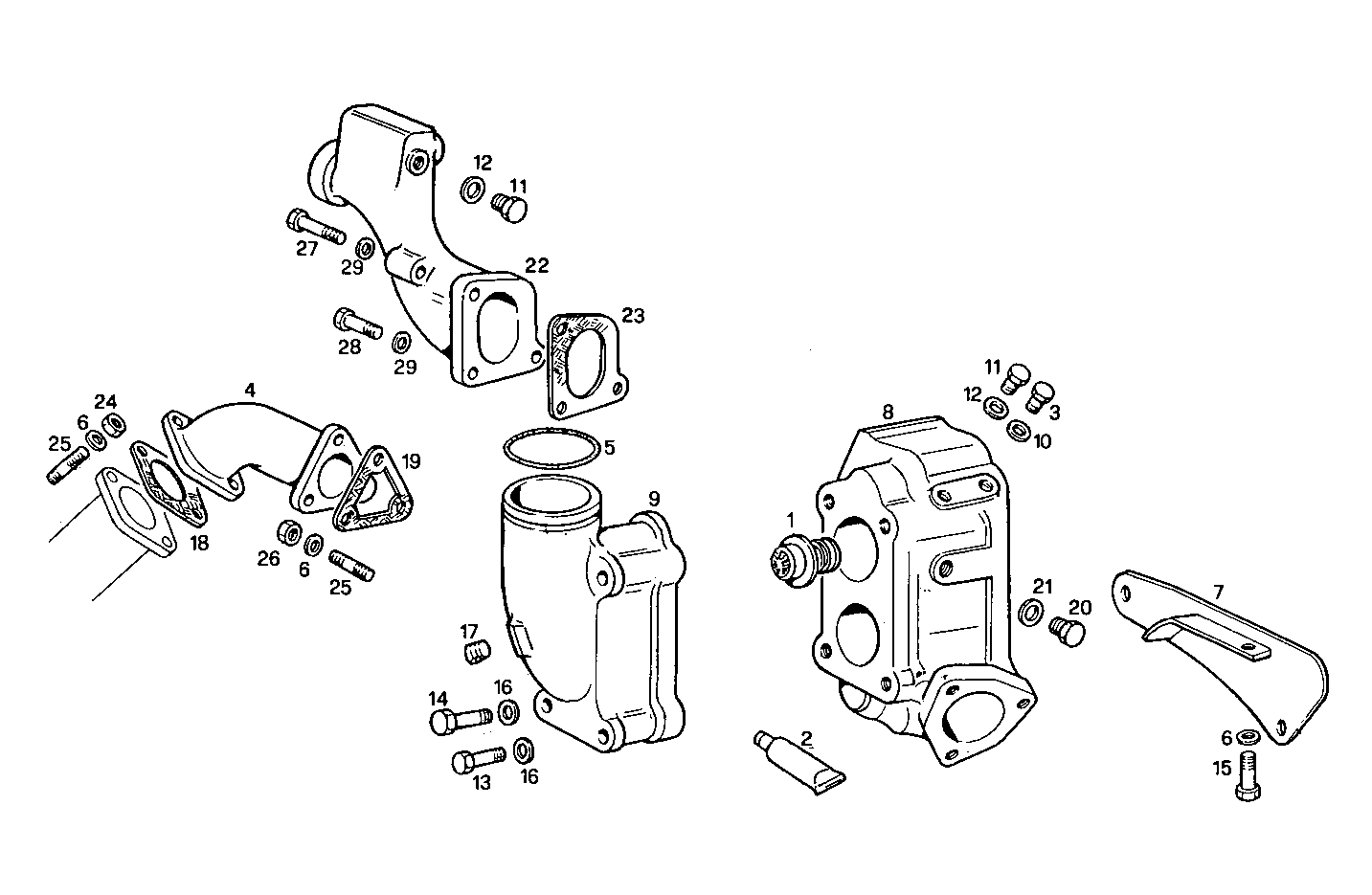

3220.008 THERMOSTAT

Iveco/FPT THERMOSTAT

Item Part number Description
1 8110947 THERMOSTAT
2 1905685 ADHESIVE/STICKER LOCTITE
3 16992340 THREADED PLUG M14X1,5
4 4751003 WATER PIPE
5 17290181 O-RING Ø59,92 MM SP=3,53 MM
6 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
7 4800743 RETAINER
8 8111337 SUPPORT
9 8104949 WATER PIPE
10 4858608 SEAL GASKET dia.14x19,5x1,5
11 16992440 THREADED PLUG M16X1,5
12 4858609 WASHER Ø16X22 MM SP=1,5 MM
13 11288021 HEXAGON BOLT M10X1,25X60 MM
14 15971921 HEXAGON BOLT M10X105 MM
15 16605524 HEXAGON BOLT M8X20 MM
16 17090174 SPRING WASHER Ø10X20 MM
17 16996040 PLUG M10X1
18 4863503 FLAT ENGINE GASKET CURTY
19 4863488 GASKET
20 4584394 PLUG 1/2''
21 11271460 GASKET Ø21X26X1,5 MM
22 8111225 WATER CONVEYOR
23 4863517 FLAT ENGINE GASKET
24 17037931 HEXAGON NUT M8X1,25
25 16729324 STUD M8X12X20 MM
26 16979431 NUT M8
27 15972221 SCREW M10X1,25X120
28 11306921 SCREW M10X1,25X30
