GE8281SRM44.10A60E

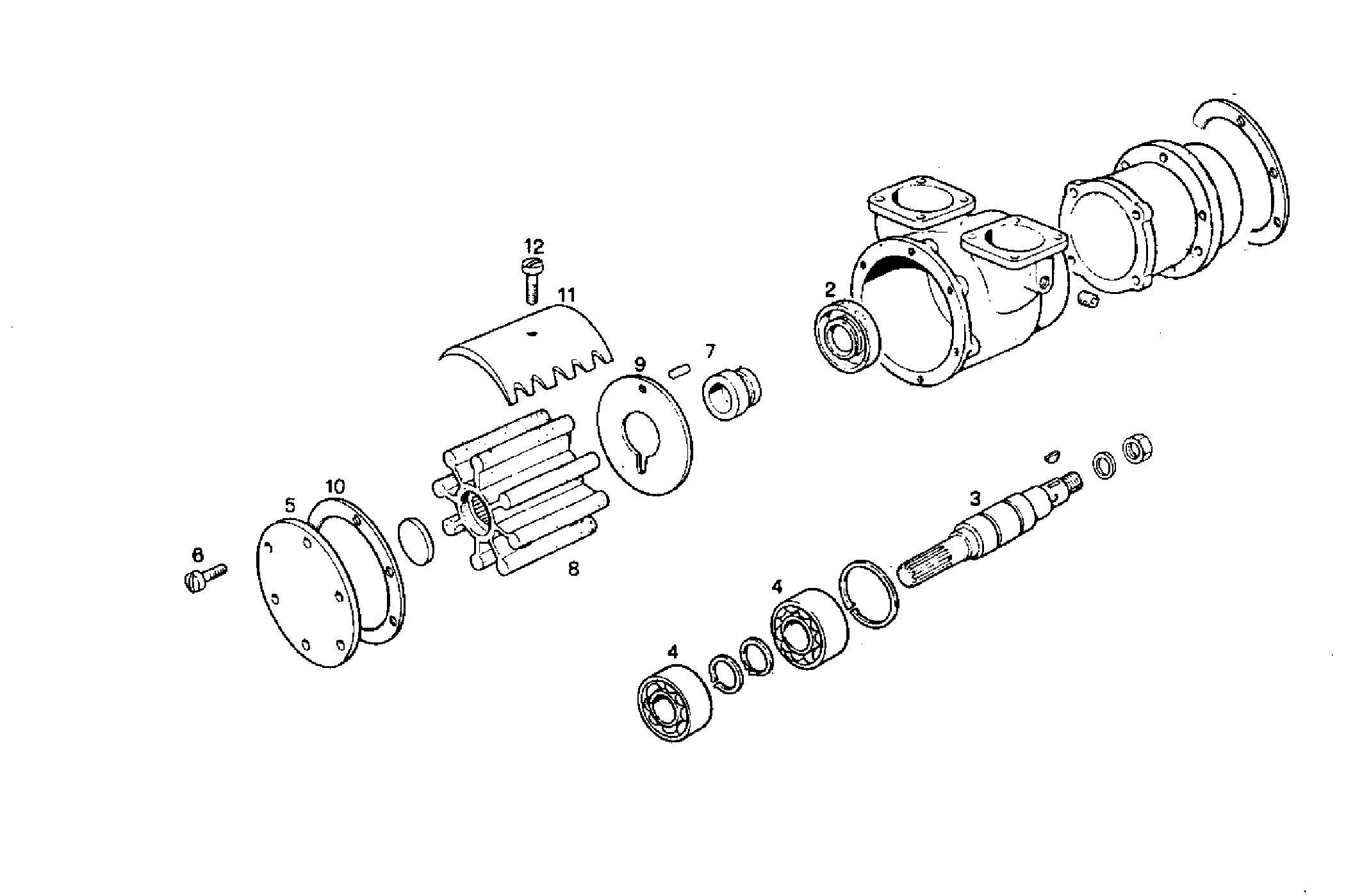

3380.005/02 SEA WATER PUMP - JABSCO
Item | Part number | Description |
---|---|---|
2 | 8105717 | WASHER |
3 | 8112447 | SHAFT |
4 | 8093365 | DRIVE BEARING |
5 | 8105732 | COVER |
6 | 8105734 | SCREW |
7 | 8093340 | WASHER |
8 | 8112451 | SEA WATER PUMP IMPELL. |
9 | 8105724 | WASHER |
10 | 8093355 | GASKET |
11 | 8112449 | RETAINING CAM |
12 | 8105727 | SCREW |
