GE8281SRM44.10A60E

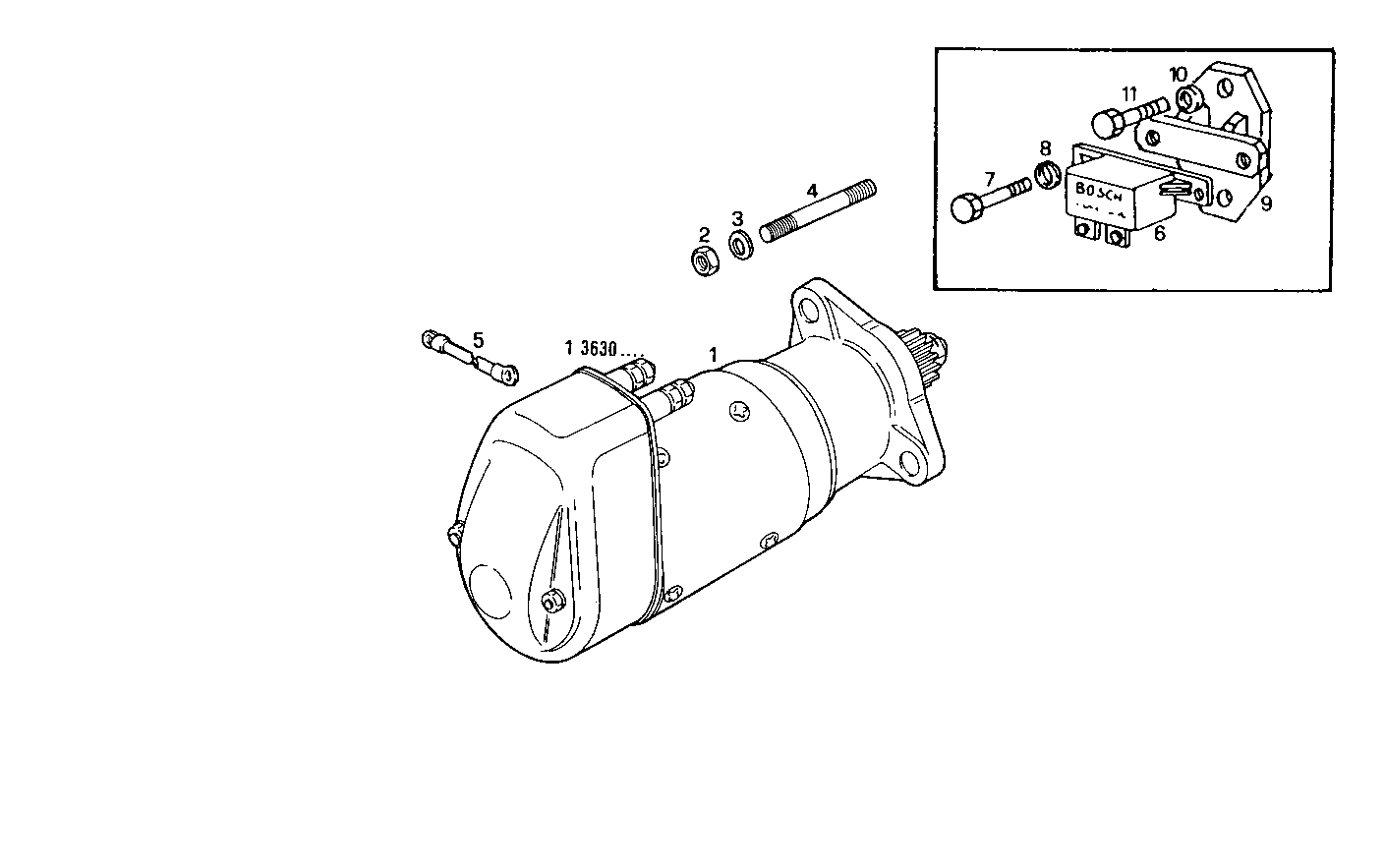

3600.015 STARTER MOTOR
Item | Part number | Description |
---|---|---|
1 | 4936699 | STARTER MOTOR ASSY |
2 | 12164011 | HEXAGON NUT M14X1,5 [up to…] |
3 | 14496801 | WASHER Ø14X28 MM |
4 | 11797421 | STUD M14X20X35 |
5 | 8112529 | EARTH WIRE |
6 | 8108575 | RELAY STARTER [up to 12-90] |
7 | 10902021 | HEXAGON BOLT M6X12 MM |
8 | 11197771 | SPRING WASHER Ø6X12 MM SP=1,2 MM |
9 | 8108626 | SUPPORT [up to 12-90] |
10 | 11193879 | SPRING WASHER Ø8X16 MM |
11 | 16043421 | HEXAGON BOLT M8X20 MM |
