GE8281SRM44.10A60E

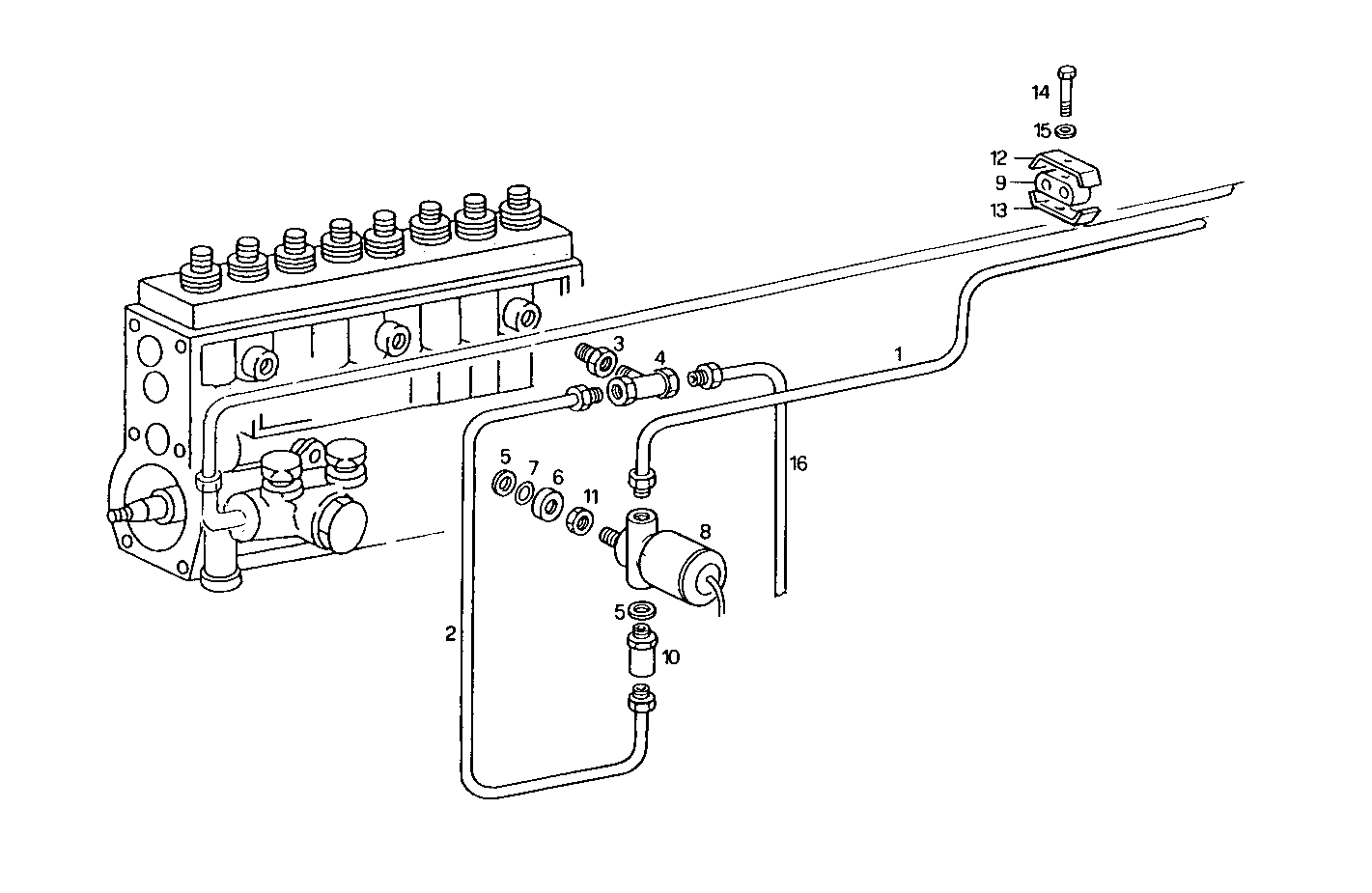

A28010036/03 ELECTRONIC GOVERNOR WOODWARD - 24V
| Item | Part number | Description |
|---|---|---|
| 1 | 8019813 | FUEL LINE |
| 2 | 8020459 | FUEL LINE |
| 3 | 16500214 | THREADED UNION M14X1,5/M16X1,5 |
| 4 | 16505911 | PIPE SOCKET |
| 5 | 4858608 | SEAL GASKET dia.14x19,5x1,5 |
| 6 | 8006339 | CAP |
| 7 | 17281581 | O-RING Ø12,37X2,62 MM |
| 8 | 8017500 | ELECTROVALVE [from 04-94] |
| 9 | 4871771 | RUBBER LUG |
| 10 | 8102465 | VALVE |
| 11 | 16508711 | NUT M14X1,5 [from 05-92] |
| 12 | 4644288 | CLIP |
| 13 | 4644289 | CLIP |
| 14 | 16603924 | HEXAGON BOLT M6X30 MM |
| 15 | 17088474 | WASHER Ø6X12 MM |
| 16 | 8020114 | FUEL LINE |
