GE8281SRM44.10A60E

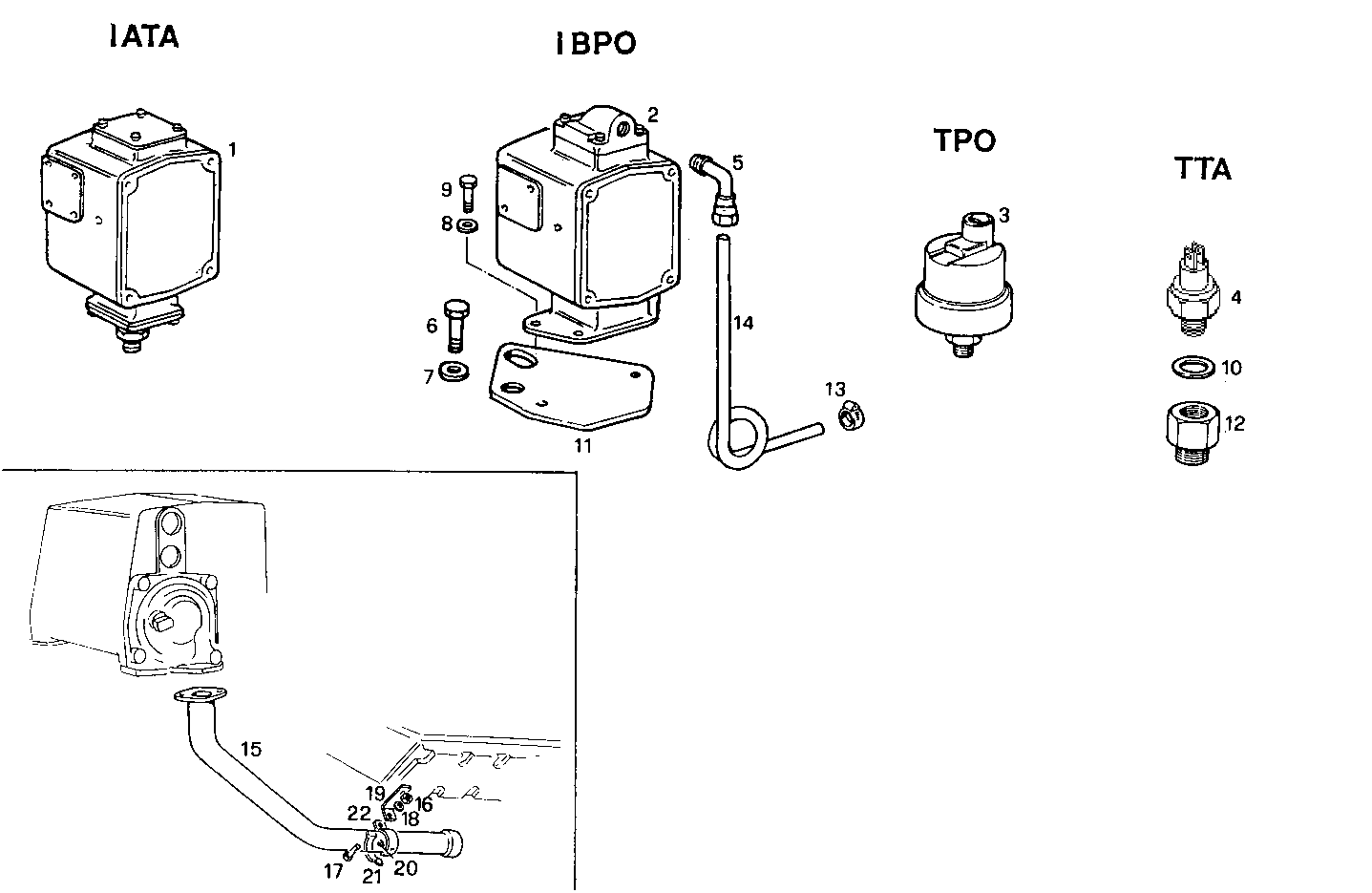

A38550901 SENDER UNITS FOR INSTRUMENTS - 12/24V

Iveco/FPT SENDER UNITS FOR INSTRUMENTS - 12/24V

Item Part number Description
1 8110742 TRANSMITTER
2 8111452 TRANSMITTER
3 8100417 TRANSMITTER TPO
4 8100418 TRANSMITTER TTA
5 8111261 PIPE SOCKET Ø1/8'' MM
6 15540221 HEXAGON BOLT M12X1,25X20 MM
7 11190779 SPRING WASHER Ø12X24 SP=2,8 MM
8 11197779 SPRING WASHER Ø6X12 MM
9 10979421 HEXAGON BOLT M6X10 MM
10 10282460 SEAL GASKET Ø14X20 MM
11 8111263 RETAINER
12 4928330 PIPE SOCKET M16X1,5/M14X1,5
13 4656139 FASTENING BRACKET
14 8111262 OIL LINE
15 8112442 WATER PIPE
16 17037931 HEXAGON NUT M8X1,25
17 16043421 HEXAGON BOLT M8X20 MM
18 11193879 SPRING WASHER Ø8X16 MM
19 8113297 RETAINER
20 1366290 RUBBER LUG
21 8113295 CLAMP Ø50 MM
22 8113296 CLAMP Ø50 MM
