GE8281SRM44.10A67E

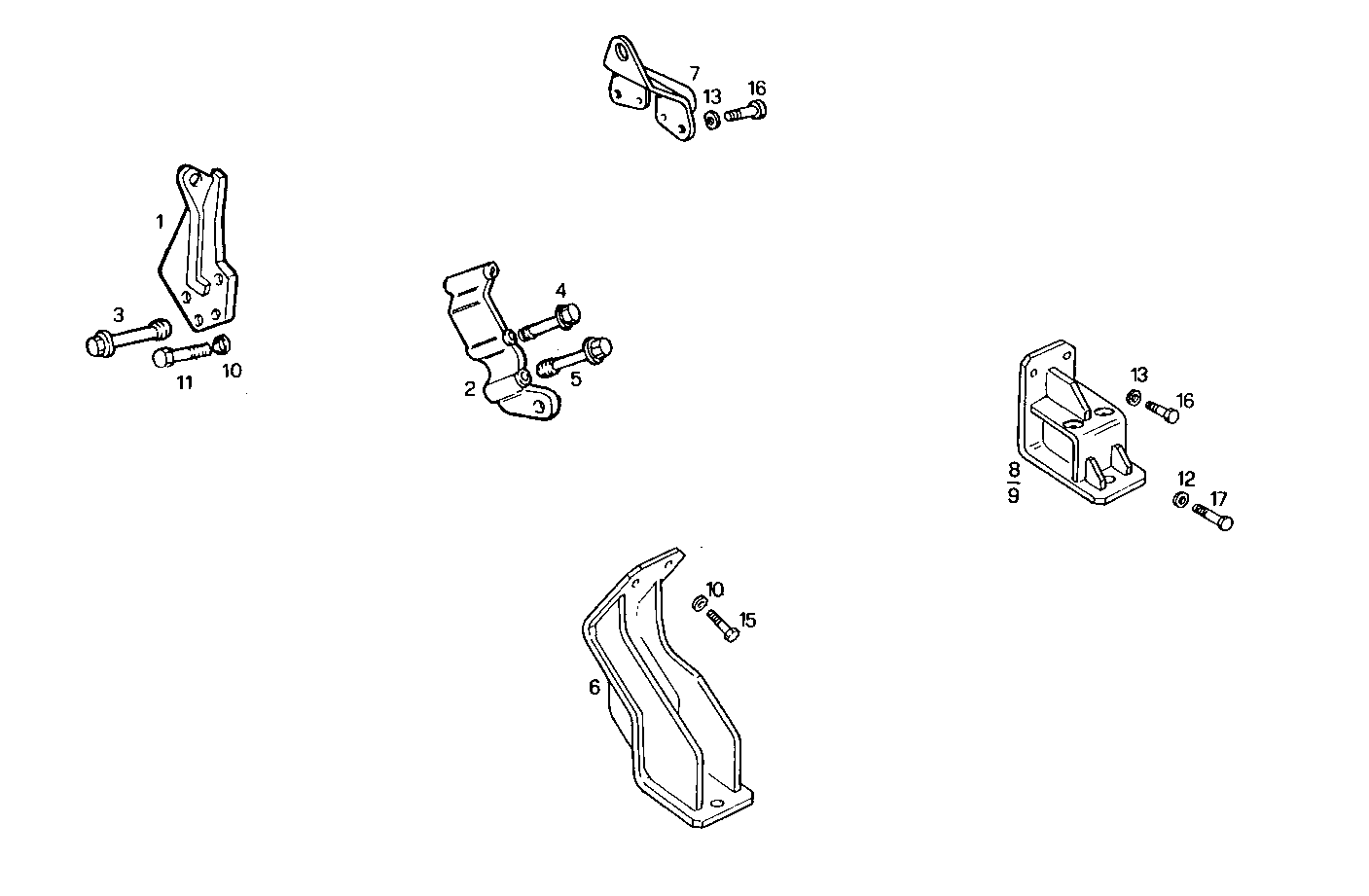

4500.022 ENGINE SUSPENSION
Item | Part number | Description |
---|---|---|
1 | 4744478 | HOOK |
2 | 4744481 | HOOK |
3 | 4744482 | SCREW |
4 | 4744483 | SCREW |
5 | 4744484 | SCREW |
6 | 4930950 | ENGINE SUSPENSION FRONT |
7 | 8113359 | HOOK |
8 | 8112563 | REAR ENG. MOUNT |
9 | 8112562 | ENGINE SUSPENSION LEFT |
10 | 11198371 | SPRING WASHER Ø10X20 MM |
11 | 15004021 | HEXAGON BOLT M10X1,25X25 MM |
12 | 11191674 | WASHER |
13 | 11191579 | SPRING WASHER Ø17X34 MM |
15 | 14274521 | SCREW M12X1,25X30 |
16 | 11391521 | HEXAGON BOLT M16X45 MM |
17 | 15984321 | HEXAGON BOLT M18X1,5 |
