GE8281SRM44.10A67E

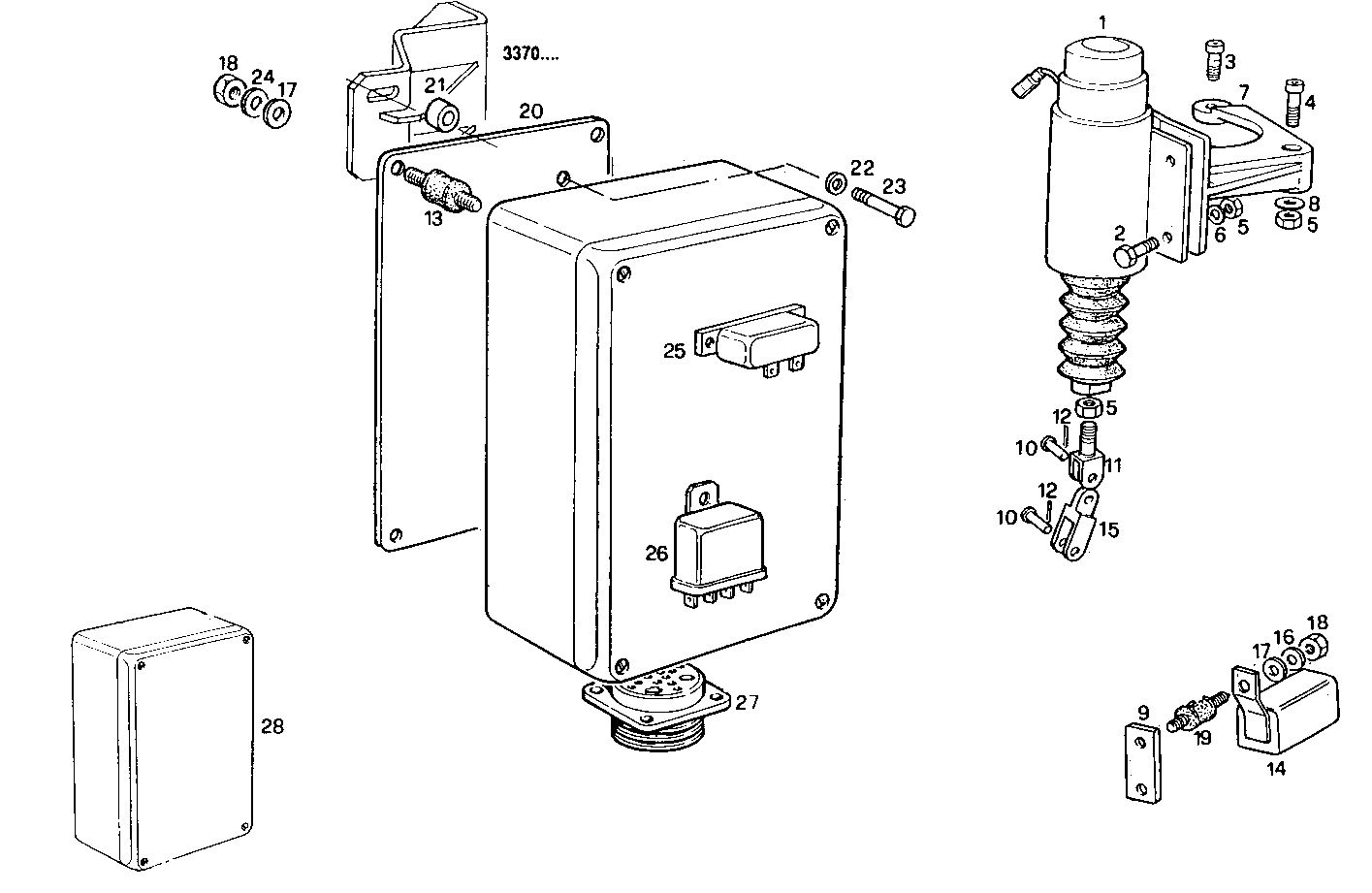

5650.006 ELECTRIC STOP ENGINE

Iveco/FPT ELECTRIC STOP ENGINE

Item Part number Description
1 8105421 SOLENOID ASSY 24V
2 16603624 HEXAGON BOLT M6X16 MM (8.8)
3 16689424 SOCKET-HEAD SCREW M6X30 MM
4 16689324 SCREW M6X25
5 17037821 HEXAGON NUT M6X1
6 17088974 SPRING WASHER Ø6X18X1,4 MM
7 8109114 SUPPORT
8 17494734 WASHER Ø6X11,8X1,6 MM
9 8006517 RETAINER [up to 05-95]
10 17718411 PIN Ø5 MM
11 8108834 CLEVIS
12 16852501 SPLIT PIN Ø1,6X12 MM
13 4910949 RUBBER LUG
14 8109519 RELAY STOP [up to 05-95]
15 8108833 CLEVIS
17 17094714 WASHER Ø6,4X12 MM
19 8105105 DOWEL
20 8009306 PLATE [from 05-95]
21 17816414 SPACING BAR Ø8,5X18 MM SP=20 MM
22 17089774 SPRING WASHER Ø8,4X22 MM SP=2,4 MM
23 16606024 SCREW M8X45 MM
24 17710074 WASHER Ø6X11 MM
25 8108574 RELAY STARTER
26 8109522 RELAY STOP
27 8113170 CONNECTION ASSY
28 8020687 ENGINE STOP ASSY [from 05-95]
